Rivet plier, 500 mm


Item no.: 42760L
EAN: 4033592014748

Information about the product

Description

for aluminium and steel rivets and rivet nuts, with many accessories, an absolute must for working on riveted window lifters.

  • Rivet heads 3.2 - 4.0 - 4.8 - 5.0 - 6.4 mm
  • Rivet mandrels M4 - 5 - 6 - 8 - 10
  • Handles can be unfolded to 500 mm
  • Little force required

Technical data

Min. Blindnietgröße / Blindnietmutterngröße 3,2 mm
Max. Blindnietgröße / Blindnietmutterngröße 6,4 mm
Min. Blindnietgröße / Blindnietmutterngröße M4
Max. Blindnietgröße / Blindnietmutterngröße M10
Length [mm] 500
Quality Premium
Packaging Plastic Cassette
Width [mm] 345
Height [mm] 50
Weight [kg] 2.62000

More images

Detailed images

Application images

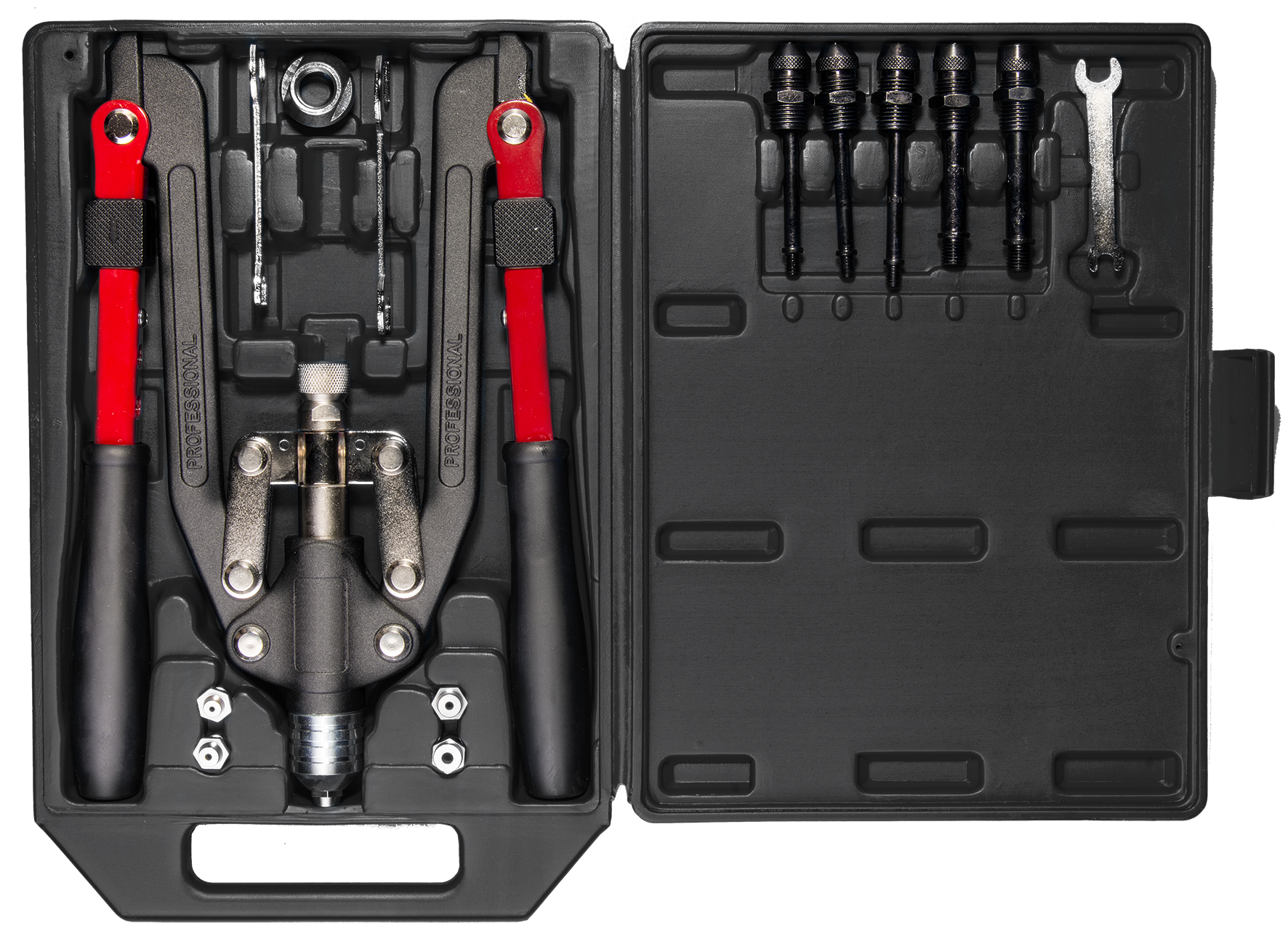

Scope of delivery

Item no. variant Name Quantity
42760L-7 - Threaded bolts with sleeve, M5 1
42760L-1 - Threaded bolts with sleeve, M6 1
42760L-2 - Threaded bolts with sleeve, M8 1
42760L-3 - Threaded bolts with sleeve, M10 1
42760L-4 - Spacer sleeve 1
42760L-5 - Spacer sleeve 1
42760L-6 - Clamping cheek 1
