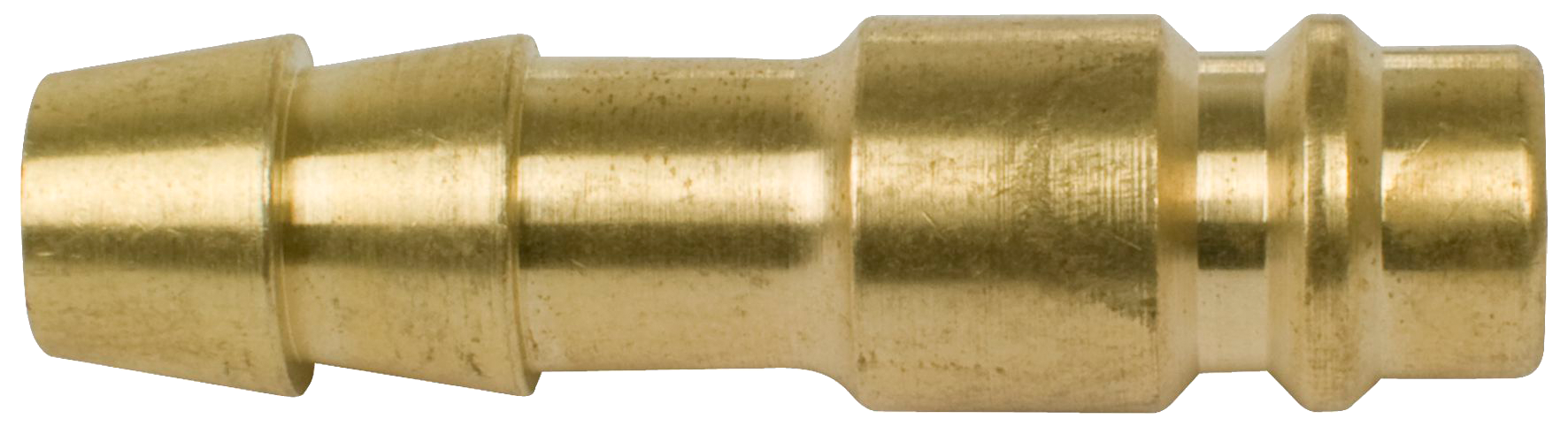

Compressed air plug nipple


Item no.: 25090L
EAN: 4033592078733


variant: L SB
L: Loose and SB: SB-packing

Information about the product

Description

DN 7.2, with hose nozzle

  • Brass
  • Nominal flow: 1300Nl/min (at 6 bar pre-pressure and 1 bar pressure loss)

Technical data

Length [mm] 45
Outer diameter [mm] 13
Temperature range from [°C] -10
Temperature range to [°C] 90
Width [mm] 12
Height [mm] 12
Quality Premium
Weight [kg] 0.02400
Operating pressure to [bar] 16
Packaging Poly bag

Similar items

Item no. variant Name
25088L L SB Compressed air plug nipple
25089L L SB Compressed air plug nipple, 9 mm hose connection
25090L L SB Compressed air plug nipple
