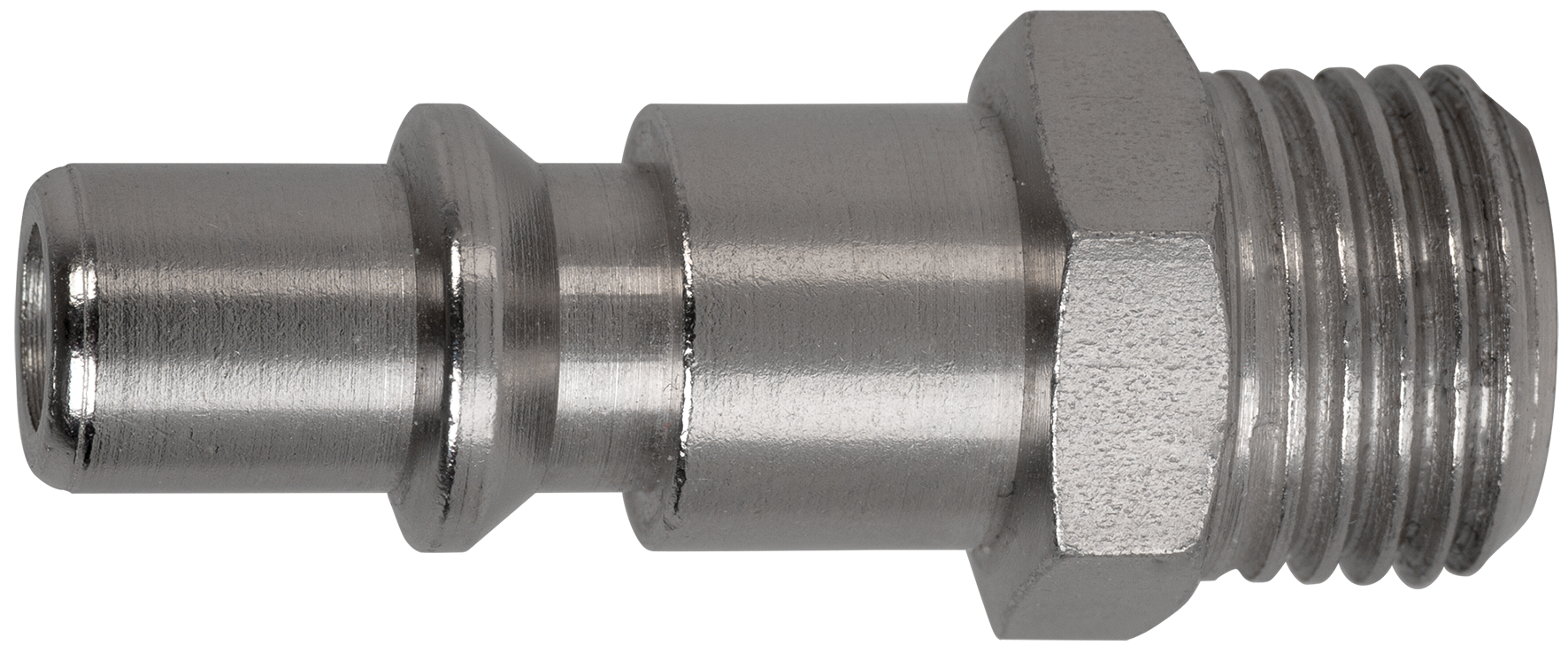

Compressed air plug nipple, 1/4" external thread

Swiss norm

Item no.: 25049L
EAN: 4033592082785


variant: L SB
L: Loose and SB: SB-packing

Swiss norm, also used in the Netherlands!

Information about the product

Description

DN 5.5, with external thread.

  • Nickel-plated brass
  • Nominal flow: 700Nl/min (at 6 bar pre-pressure and 1 bar pressure loss)

Technical data

Length [mm] 36
Outer thread [inch] 1/4"
Country-spec. model Switzerland
Temperature range from [°C] -10
Width [mm] 14
Temperature range to [°C] 90
Height [mm] 14
Quality Premium
Weight [kg] 0.02300
Operating pressure to [bar] 16
Packaging Poly bag
