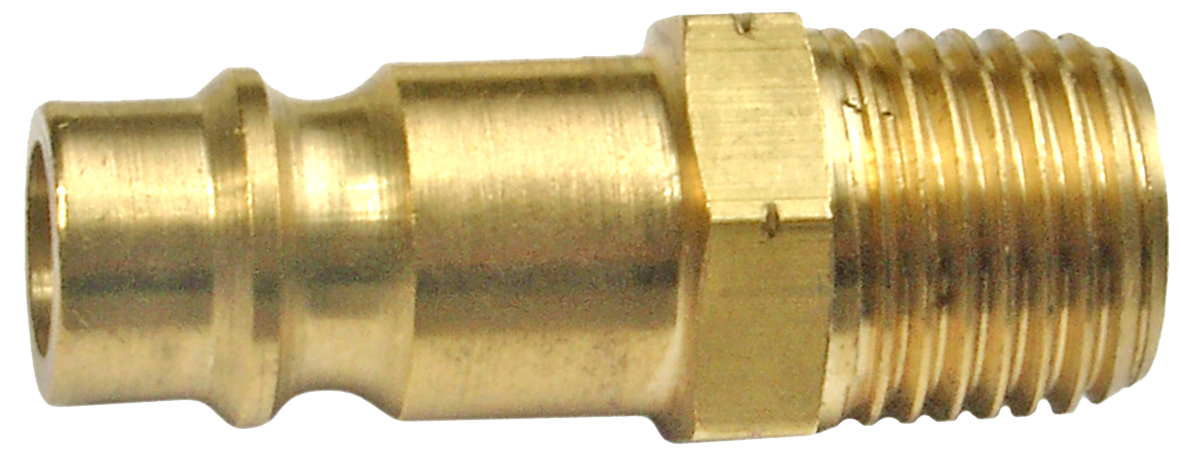

Compressed air plug nipple, 1/4" external thread


Item no.: 25043L
EAN: 4033592035156


variant: L SB
L: Loose and SB: SB-packing


Information about the product

Description

DN 7.2, with external thread.

  • Brass
  • Nominal flow: 1300Nl/min (at 6 bar pre-pressure and 1 bar pressure loss)

Technical data

Length [mm] 33
Outer thread [inch] 1/4"
Temperature range from [°C] -10
Width [mm] 15
Temperature range to [°C] 90
Height [mm] 15
Quality Premium
Weight [kg] 0.02000
Operating pressure to [bar] 16
Packaging Poly bag

Similar items

Item no. variant Name
25043L L SB Compressed air plug nipple, 1/4" external thread
25085L L SB Compressed air plug nipple
25086L L SB Compressed air plug nipple
