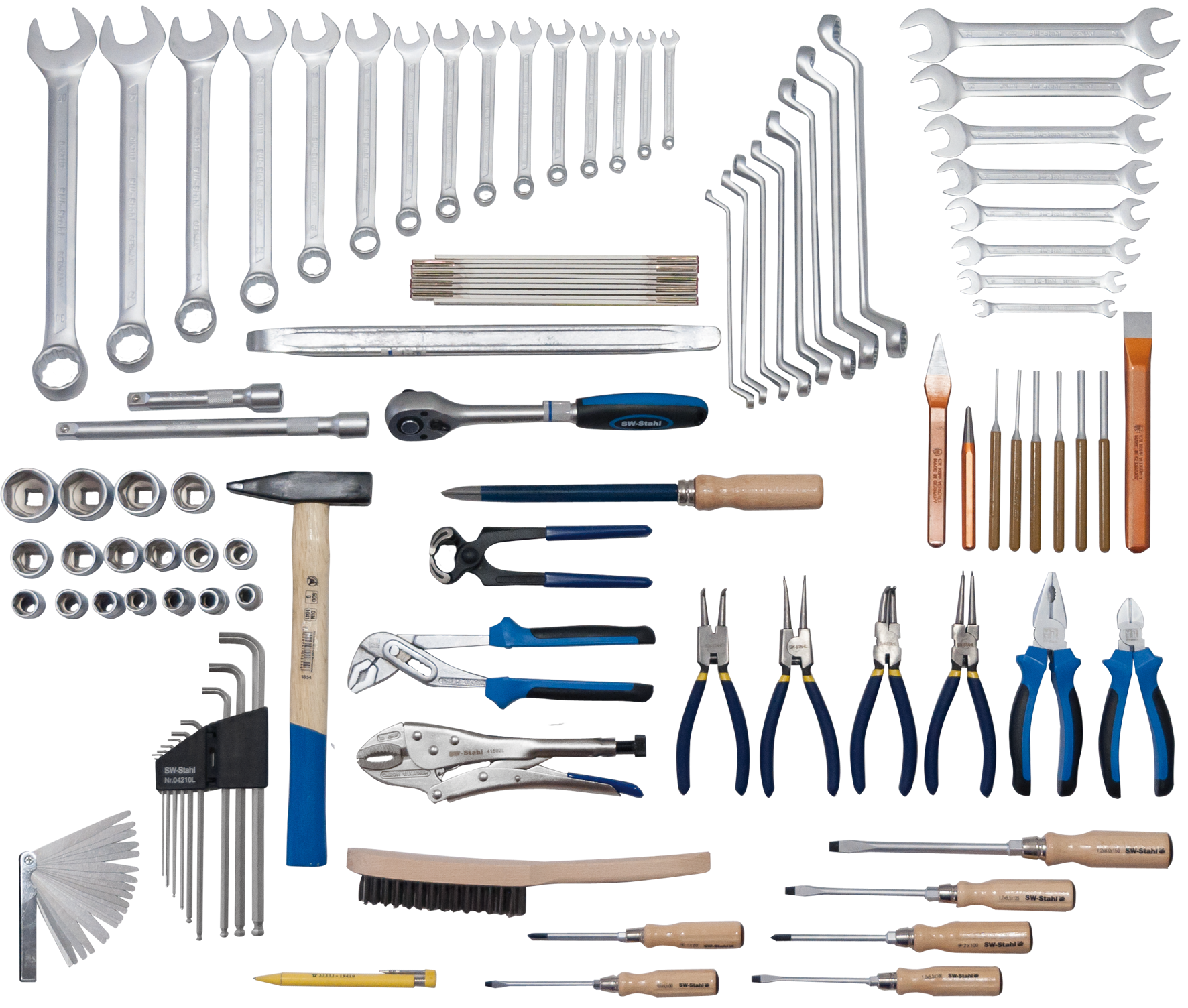

Tool assortment, 90-piece


Item no.: Z2300
EAN: 4033592030434


Information about the product

Description

for equipping existing workshop carts or cases.

  • 8 open- ended spanners, CV-steel, DIN from 6-22 mm
  • 8 double-ring spanners, CV-steel, DIN from 6-22 mm
  • 11 combination spanners, CV-steel, DIN from 6-30 mm
  • 17 spanner sockets, CV-steel, 1/2", 10-32 mm
  • 1 cardan joint, CV-steel, 2 extensions, 125+250 mm
  • 1 reversible ratchet wrench, CV-steel, 1/2", 72 teeth,
  • 2 magnetic spark plug sockets, CV-steel, 16+21 mm, extra long
  • 1 combination spanners, chrome-plated, insulated
  • 1 side-cutting pliers, chrome-plated, insulated
  • 1 edge pliers, forged, black, polished blade
  • 1 water pump pliers with box-joint head,
  • 4 lock- ring pliers, inner/outer locks, straight/bent
  • 1 gripping pliers 250 mm, CV-steel, with wire cutter
  • 1 triangular hollow scraper, 1 flat chisel, 1 cross-cut chisel
  • 1 centre punch, 8 Allen keys with ball head, extra long CV, 2-10 mm
  • 1 locksmith's hammer 500 g, 1 yardstick
  • 6 pin punches 2-8 mm, 1 mounting lever
  • 6 wooden handle screwdrivers with hexagon
  • 1 steel wire brush 3-rows
  • 1 valve gauge 0.05-1.00 mm, 13-piece
  • 1 brass testing lamp, nickel-plated, 6-12 Volt

Technical data

Anzahl Werkzeuge 90.0
Länge [mm] 600.0
Breite [mm] 400.0
Höhe [mm] 90.0
Produktqualität Industrie / Profi
Gewicht [kg] 13.571

Scope of delivery

Item no. variant Name Quantity
00101L L SB Double open-ended spanner, 6 x 7 mm 1
00102L L SB Double open-ended spanner, 8 x 9 mm 1
00103L L SB Double open-ended spanner, 10 x 11 mm 1
00104L L SB Double open-ended spanner, 12 x 13 mm 1
00106L L SB Double open-ended spanner, 14 x 15 mm 1
00108L L SB Double open-ended spanner, 16 x 17 mm 1
00110L L SB Double open-ended spanner, 18 x 19 mm 1
00112L L SB Double open-ended spanner, 20 x 22 mm 1
00801L L SB Combination spanner, 6 mm 1
00802L L SB Combination spanner, 7 mm 1
00803L L SB Combination spanner, 8 mm 1
00804L L SB Combination spanner, 9 mm 1
00805L L SB Combination spanner, 10 mm 1
00806L L SB Combination spanner, 11 mm 1
00807L L SB Combination spanner, 12 mm 1
00808L L SB Combination spanner, 13 mm 1
00809L L SB Combination spanner, 14 mm 1
00812L L SB Combination spanner, 17 mm 1
00814L L SB Combination spanner, 19 mm 1
00817L L SB Combination spanner, 22 mm 1
00819L L SB Combination spanner, 24 mm 1
00822L L SB Combination spanner, 27 mm 1
00824L L SB Combination spanner, 30 mm 1
01201L L SB Double-ring spanner, 6 x 7 mm, cranked 1
01202L L SB Double-ring spanner, 8 x 9 mm, cranked 1
01204L L SB Double-ring spanner, 10 x 11 mm, cranked 1
01207L L SB Double-ring spanner, 12 x 13 mm, cranked 1
01210L L SB Double-ring spanner, 14 x 15 mm, cranked 1
01212L L SB Double-ring spanner, 16 x 17 mm, cranked 1
01214L L SB Double-ring spanner, 18 x 19 mm, cranked 1
01215L L SB Double-ring spanner, 20 x 22 mm, cranked 1
05601L L SB Spanner socket 1/2", 10 mm 1
05602L L SB Spanner socket 1/2", 11 mm 1
05603L L SB Spanner socket 1/2", 12 mm 1
05604L L SB Spanner socket, 1/2", 13 mm 1
05605L L SB Spanner socket 1/2", 14 mm 1
05606L L SB Spanner socket, 1/2", 15 mm 1
05607L L SB Spanner socket, 1/2", 16 mm 1
05608L L SB Spanner socket, 1/2", 17 mm 1
05609L L SB Spanner socket, 1/2", 18 mm 1
05610L L SB Spanner socket, 1/2", 19 mm 1
05611L L SB Spanner socket 1/2", 20 mm 1
05612L L SB Spanner socket 1/2", 21 mm 1
05613L L SB Spanner socket, 1/2", 22 mm 1
05615L L SB Spanner socket, 1/2", 24 mm 1
05617L L SB Spanner socket 1/2", 27 mm 1
05619L L SB Spanner socket 1/2", 30 mm 1
05620L L SB Spanner socket 1/2", 32 mm 1
30600L L SB Screwdriver 90 x 4,5 mm 1
30601L L SB Screwdriver 100 x 5,5 mm 1
30602L L SB Screwdriver 125 x 7 mm 1
30603L L SB Screwdriver 150 x 9 mm 1
30701L L SB Screwdriver cross 1 1
30702L L SB Screwdriver, No. 2 1
05903L L SB Cardan joint, 1/2" 1
05904L L SB Extension, 1/2", 125 mm 1
05905L L SB Extension, 1/2", 250 mm 1
05995L L SB Reversing ratchet, 1/2" 1
03160L L SB Spark plug socket, 1/2", 16 mm 1
03165L L SB Spark plug socket, 1/2", 21 mm 1
41301L L SB Circlip pliers, outer, straight, 175 mm 1
41302L L SB Circlip pliers, outer, bent, 175 mm 1
41401L L SB Circlip pliers, inner, straight, 175 mm 1
41402L L SB Circlip pliers, inner, bent, 175 mm 1
40450L L SB Universal pliers, 180 mm 1
40550L L SB Side-cutting pliers, 160 mm 1
41502L L SB Locking pliers, 250 mm 1
94200L L SB Quality scraper 1
94503L L SB Chisel, 150 mm 1
94510L L SB Chisel, 175 mm 1
94600L L SB Centre punch, 120 mm 1
04210SB L SB Allen key set, hexagon, allen, ball head, 1,5-10 mm, narrow, 9-piece 1
50105L - Locksmith's hammer, 500 g 1
82601L L SB Pin punch, 3 mm 1
82602L L SB Pin punch, 4 mm 1
82603L L SB Pin punch, 5 mm 1
82604L L SB Pin punch, CV, 6 mm 1
82605L L SB Pin punch, 8 mm 1
82606L L SB Pin punch, CV 10 mm 1
02151L - Tyre iron, 400 mm 1
72400L - Folding wooden yardstick 1
32200L L SB Testing lamp, 6-24V 1
