Description

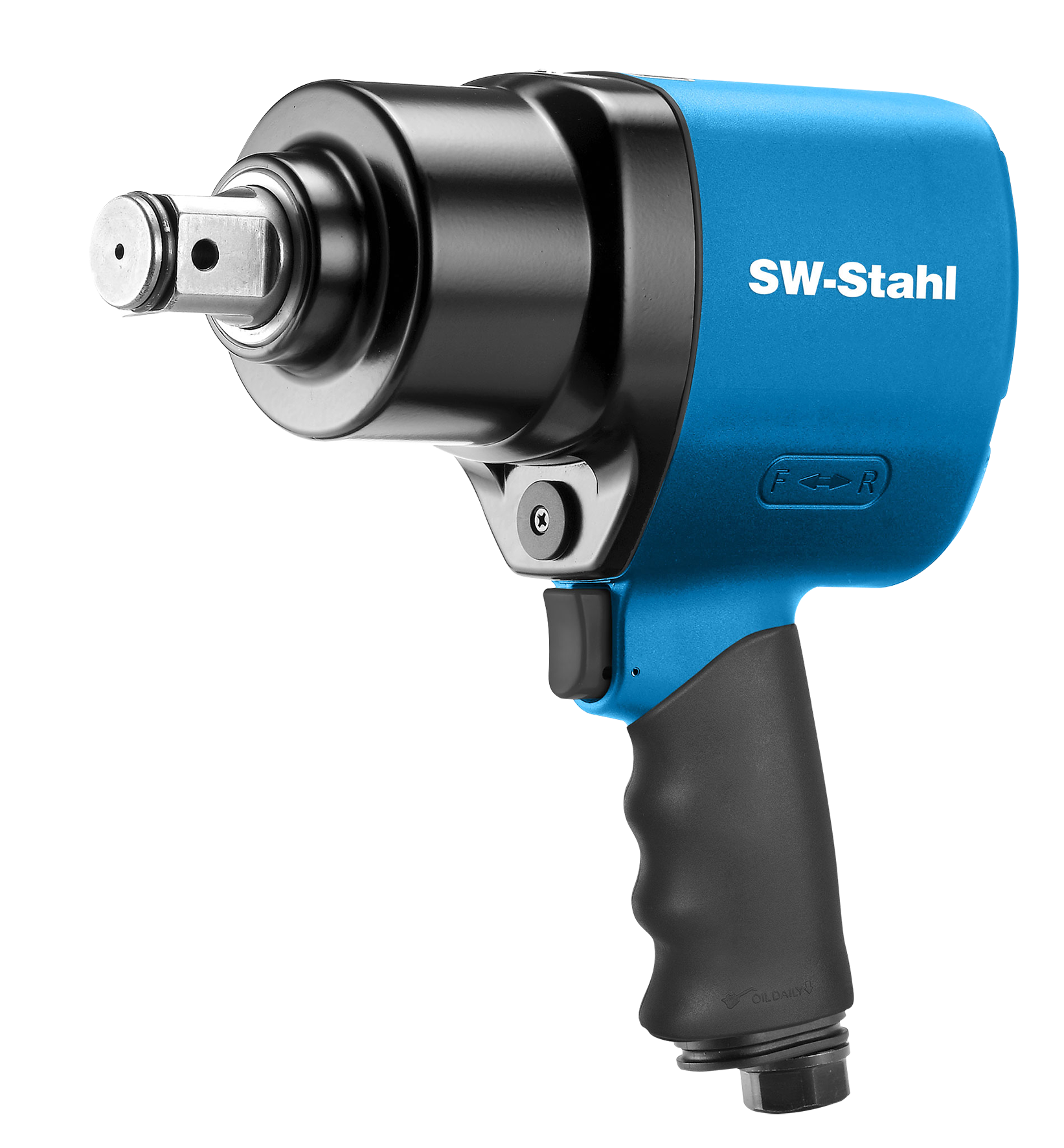

25 mm (1") drive.

• Pistol design
• High performance twin hammer mechanism
• Aluminium casing very low in weight
• Very quiet
• Low-vibration
• Threefold torque selection
• With a non-slip handle
• 10 mm (3/8") inlet nipple included

Technical data

Abtriebs-Vierkant [mm]	25 (1")
Release Torque [Nm]	3200
Operating Mode	Pneumatic
Baulänge [mm]	223
Quality	Premium
Luftverbrauch [l/m]	198
Drehmoment Max. [Nm]	2034
Max. torque, 1. speed [Nm]	800
Max. Torque, 2nd speed	1200
Max. Torque, 3rd speed	1600
Service Speed [1/min]	5500
Operating Pressure [bar]	6,3
Thread Size, compressed air connection	3/8"
Sound Level [dB(A)]	90
Geräuschpegel [db(A)]	90
Sound Power Level [dB]	94
Vibration Acceleration [m/s²]	11.25000
Length [mm]	376
Weight [kg]	3.87500

Accessories

	Item no.	variant	Name
	07985L-STIFT	-	Locking pin for 1"
	07985L-RING	-	Locking ring for 1"
	64311L	-	Mini grease gun including grease bag, 80 g
