Description

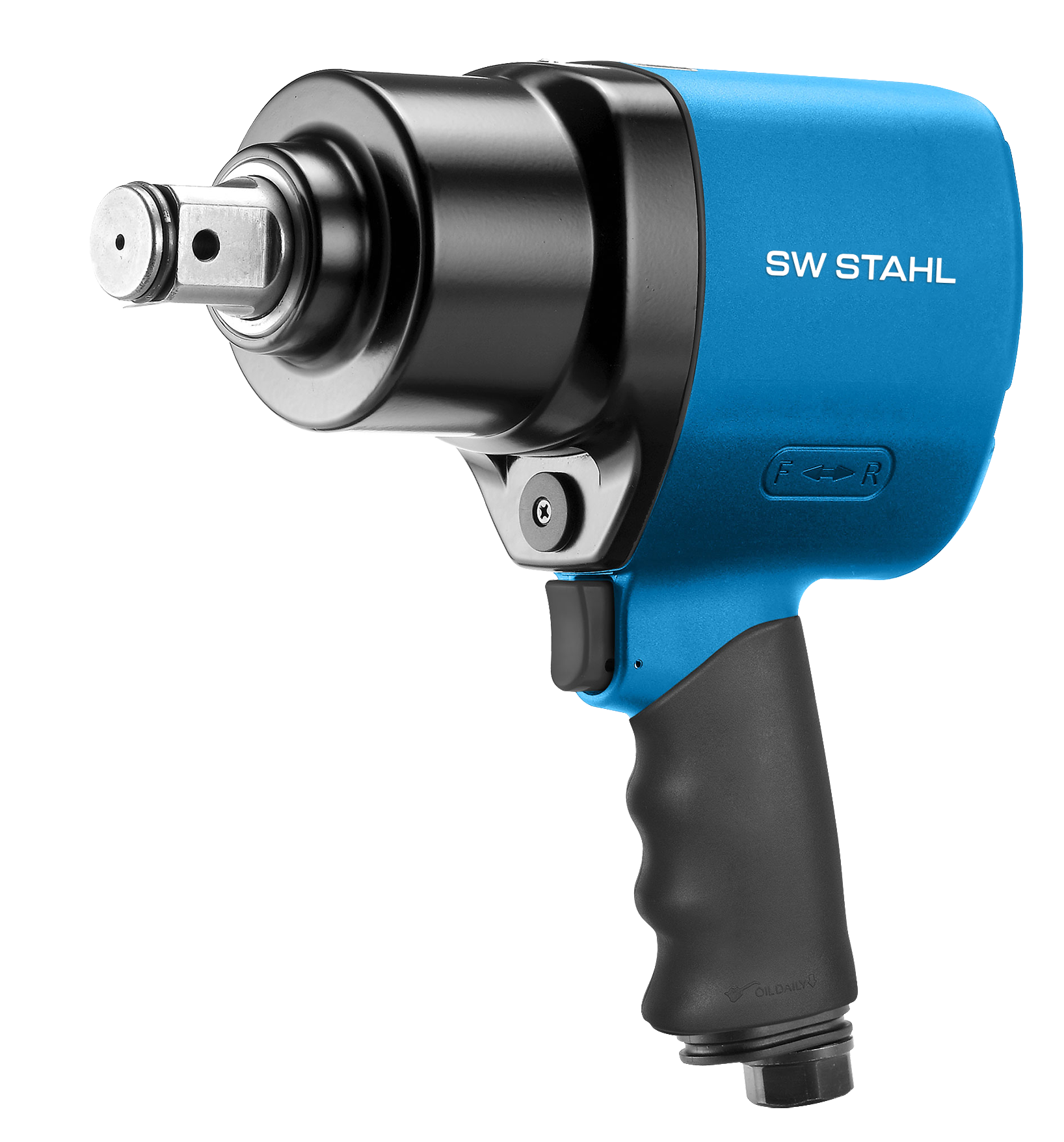

20 mm (3/4") drive.

• Pistol design
• High performance twin hammer mechanism
• Very light aluminium casing
• Very low noise
• Low- vibration
• Threefold torque selection
• With a non-slip handle
• 10 mm (3/8") inlet nipple included

Technical data

Abtriebs-Vierkant [mm]	20 (3/4")
Release Torque [Nm]	3200
Quality	Premium
Luftverbrauch [l/m]	198
Drehmoment Max. [Nm]	2034
Max. torque, 1. speed [Nm]	800
Max. Torque, 2nd speed	1200
Max. Torque, 3rd speed	1600
Service Speed [1/min]	5500
Operating Pressure [bar]	6.30000
Thread Size, compressed air connection	3/8
Noise Level [dB]	90
Sound Power Level [dB]	94
Vibration Acceleration [m/s²]	11.25000
Length [mm]	215
Weight [kg]	3.79800

Documents

Operating manual
March 13, 2025, 9:16 p.m.

Accessories

	Item no.	variant	Name
	07900L-STIFT	-	Locking pin for 3/4"
	07900L-RING	-	Locking ring for 3/4"
	64311L	-	Mini grease gun including grease bag, 80 g
