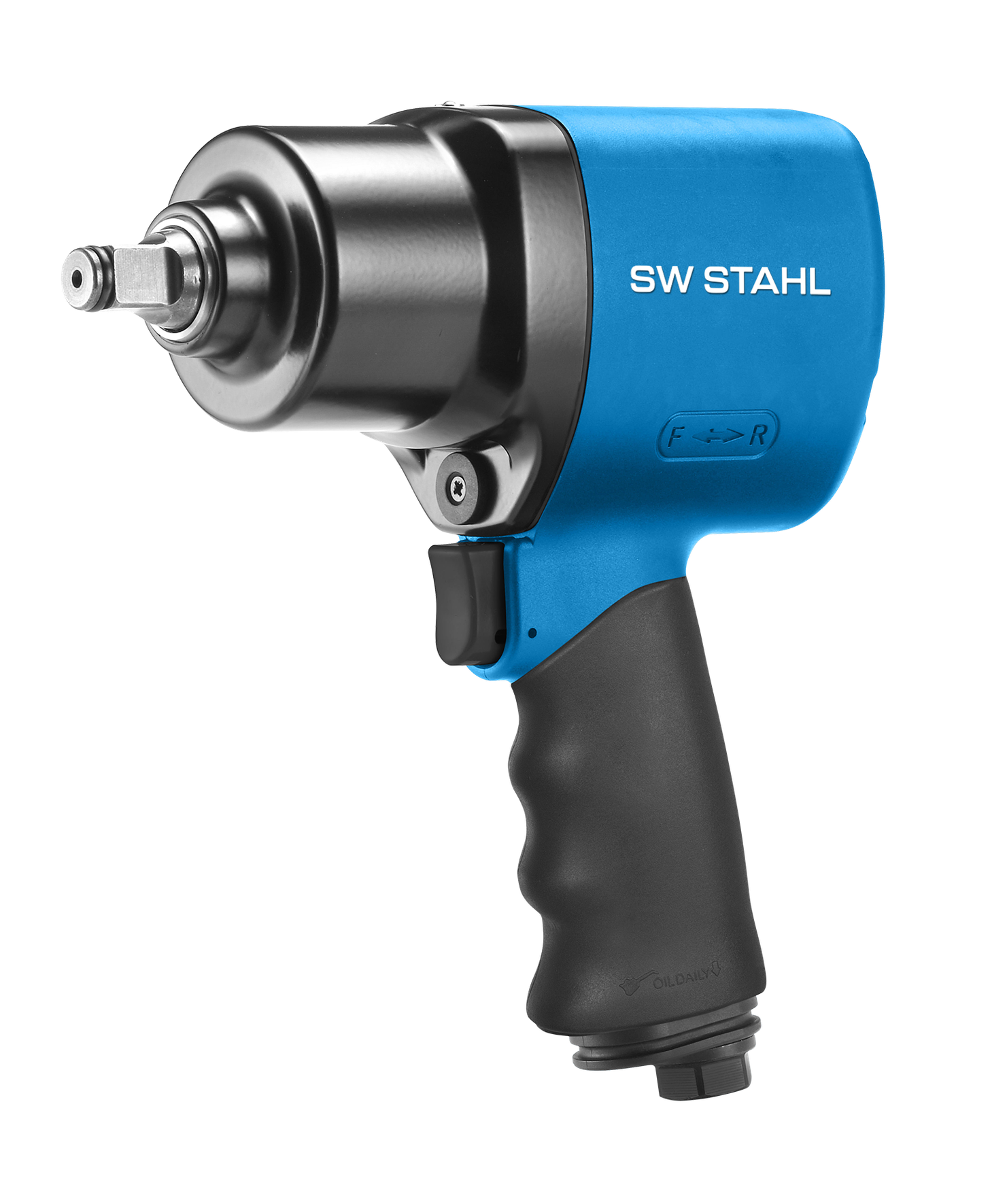

Description

12.5 mm (1/2") drive

• High performance twin hammer mechanism
• Fatigue-proof work due to extremely low net weight
• Single handed switching for clockwise / anticlockwise running
• Very low noise
• Very low vibration
• Threefold torque selection
• With a non-slip handle
• 6,3 mm (1/4") inlet nipple included

Technical data

Abtriebs-Vierkant [mm]	12,5 (1/2")
Release Torque [Nm]	1756
Operating Mode	Pneumatic
Baulänge [mm]	183
Quality	Premium
Luftverbrauch [l/m]	113
Drehmoment Max. [Nm]	1112
Max. torque, 1. speed [Nm]	450
Max. Torque, 2nd speed	600
Max. Torque, 3rd speed	800
Service Speed [1/min]	7000
Operating Pressure [bar]	6,3
Thread Size, compressed air connection	1/4
Sound Level [dB(A)]	83
Geräuschpegel [db(A)]	83
Sound Power Level [dB]	90
Vibration Acceleration [m/s²]	6.08000
Length [mm]	183
Weight [kg]	2.23100

Documents

Operating manual
Nov. 10, 2025, 9:15 p.m.

Accessories

	Item no.	variant	Name
	64311L	-	Mini grease gun including grease bag, 80 g

Spare and wear parts

	Item no.	variant	Name
	S3246-1	-	Retaining ring for all, 1/2”
