Description

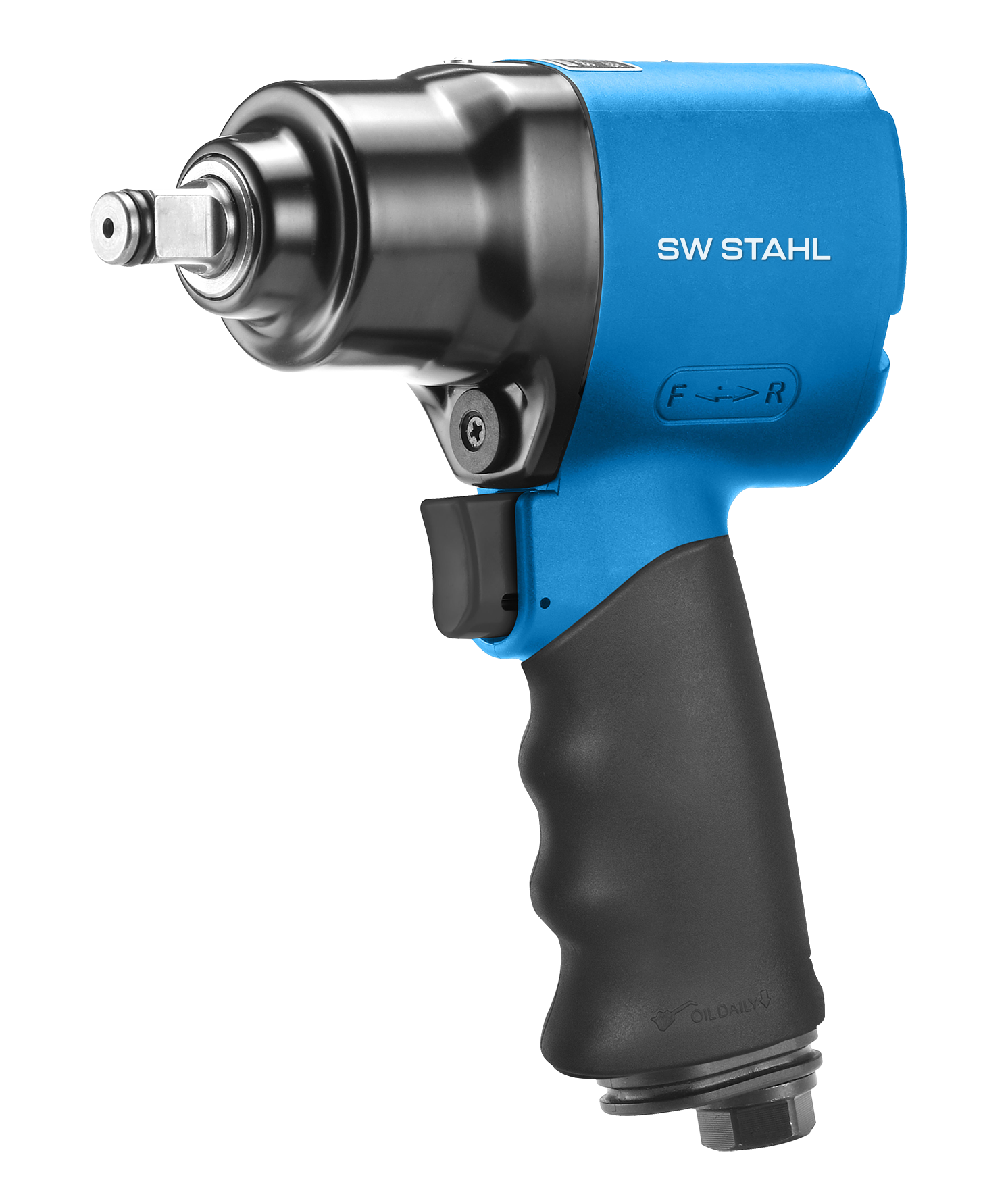

12.5 mm (1/2") drive

• high performance twin hammer mechanism
• fatigue-proof work due to extremely low net weight
• single handed switching for clockwise / anticlockwise running
• very low noise
• very low vibration
• threefold torque selection
• with a non-slip handle
• 6,3 mm (1/4") inlet nipple included

Technical data

Abtriebs-Vierkant [mm]	12,5 (1/2")
Release Torque [Nm]	1300
Operating Mode	Pneumatic
Baulänge [mm]	153
Quality	Premium
Luftverbrauch [l/m]	113
Drehmoment Max. [Nm]	624
Max. torque, 1. speed [Nm]	200
Max. Torque, 2nd speed	350
Max. Torque, 3rd speed	500
Service Speed [1/min]	11000
Operating Pressure [bar]	6,3
Thread Size, compressed air connection	1/4
Sound Level [dB(A)]	83
Geräuschpegel [db(A)]	83
Sound Power Level [dB]	90
Vibration Acceleration [m/s²]	7.40000
Length [mm]	153
Weight [kg]	1.46900

Documents

Operating manual
March 20, 2025, 9:16 p.m.

Accessories

	Item no.	variant	Name
	64311L	-	Mini grease gun including grease bag, 80 g

Spare and wear parts

	Item no.	variant	Name
	S3246-1	-	Retaining ring for all, 1/2”
