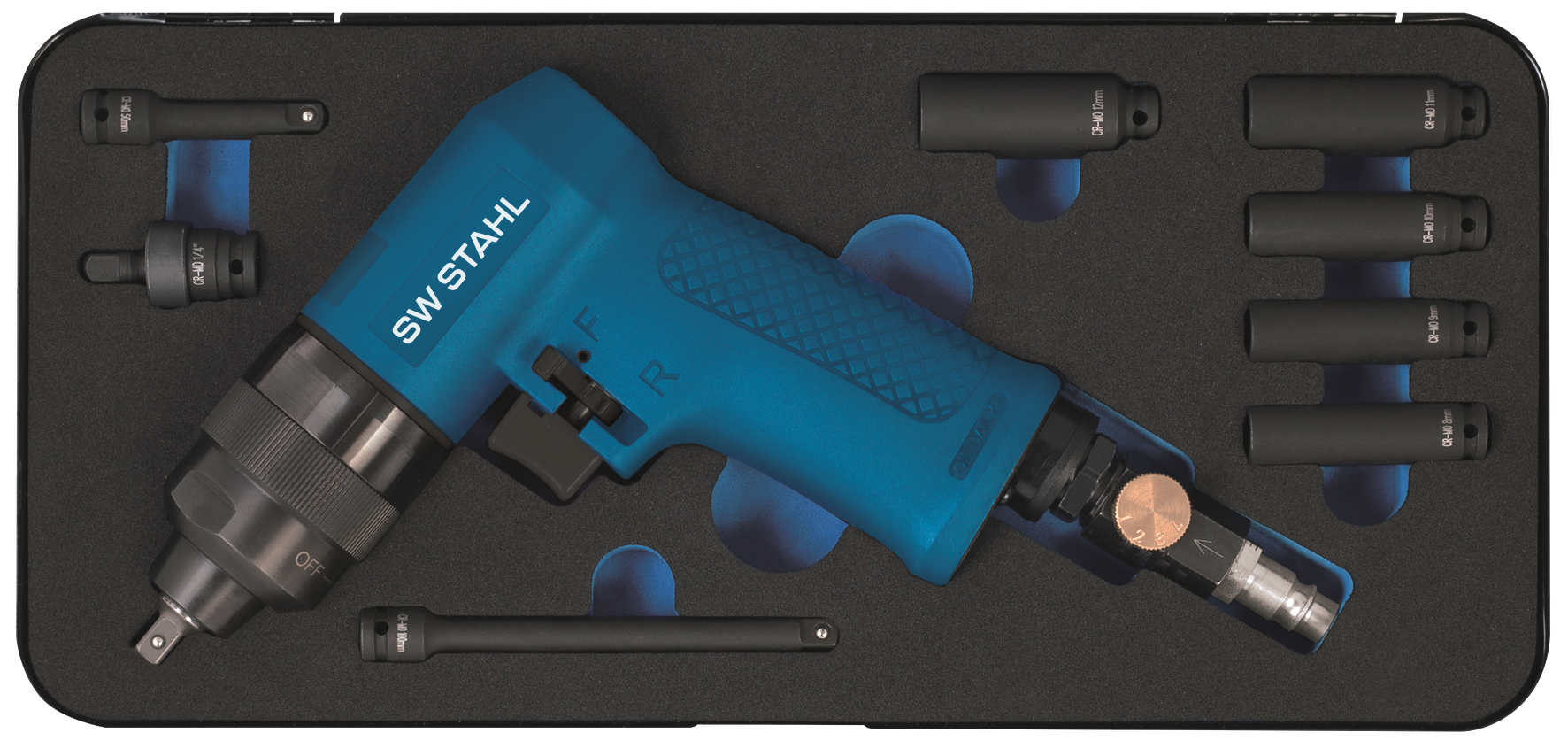

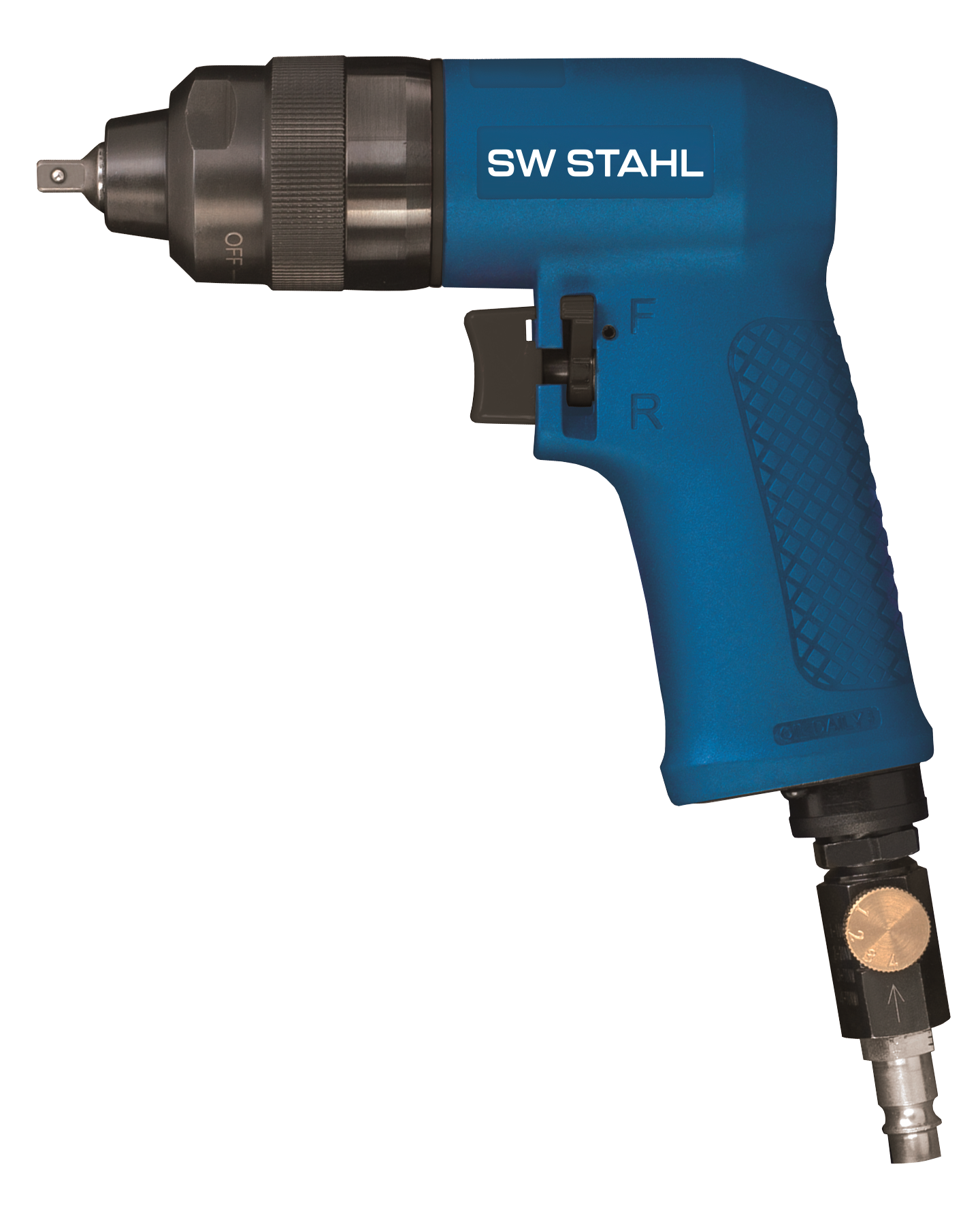

Pneumatic IMPACT wrench, 1/4", 9-piece

especially for glow plugs


Item no.: S3224
EAN: 4033592077644

Information about the product

Description

6.3 mm (1/4") drive.
Especially for the removal of jammed glow plugs through several impact pulses and 4-stage adjustable loosening torque.

  • Extra small and handy
  • Right/left direction of rotation
  • Quick-action coupling
  • Loosening torque from 10 to 40 Nm
  • Weight 2.40 kg
  • Hose connection: 6,3 mm (1/4")
  • Sound pressure: 95 dB (A)
  • 5 IMPACT hexagon sockets 50 mm long 8-9-10-11-12 mm
  • Extension 50 mm + 100 mm
  • Power joint 6,3 mm (1/4")

Loosening torque adjustable in 4 stages:

  • Stage 1: 10 Nm
  • Stage 2: 20 Nm
  • Stage 3: 30 Nm
  • Stage 4: 40 Nm

Technical data

Abtriebs-Vierkant [mm] 6,3 (1/4")
Drehmoment Max. [Nm] 40
Number of tools 9
Quality Premium
Operating Pressure [bar] 6,3
Thread Size, compressed air connection 1/4"
Sound Level [dB(A)] 95
Length [mm] 160
Width [mm] 325
Height [mm] 55
Weight [kg] 2.32700

More images

Detailed images

Application images

Scope of delivery

Item no. variant Name Quantity
S3224-1 - IMPACT hexagonal socket 1
S3224-2 - IMPACT hexagonal socket 1
S3224-3 - IMPACT hexagonal socket 1
S3224-4 - IMPACT hexagonal socket 1
S3224-5 - IMPACT hexagonal socket 1
