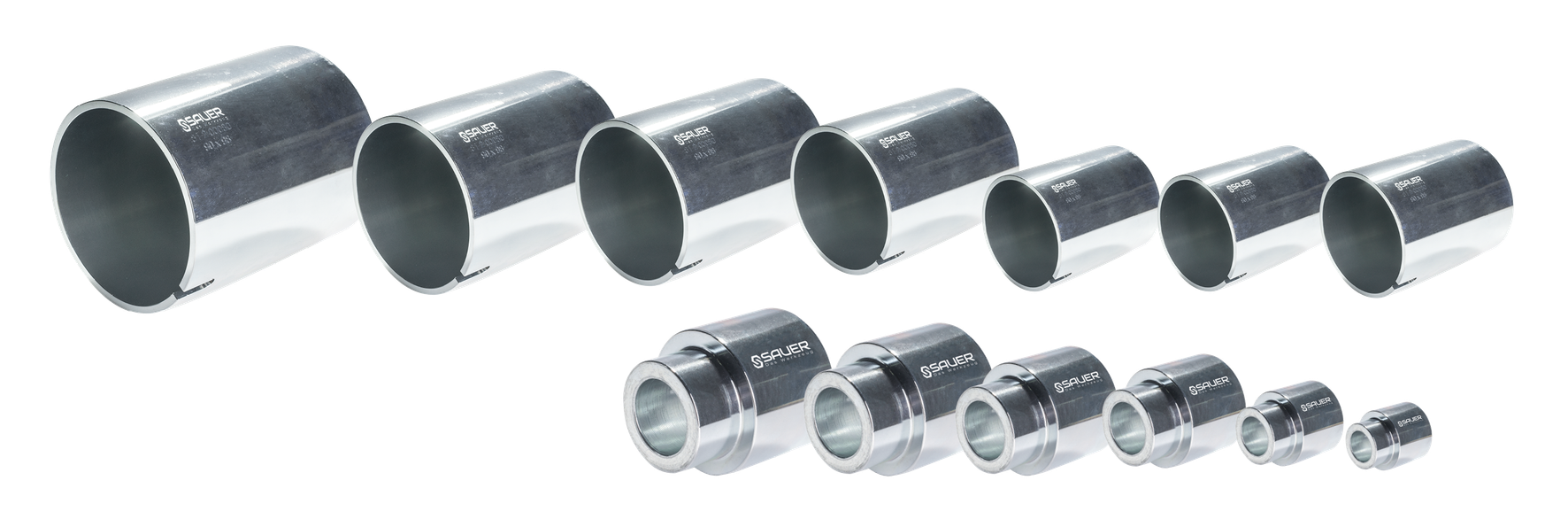

SAUER Pressure and Support Sleeve Set, 18 – 78 mm, 54-piece

Short and long pressure and support sleeves

Item no.: 81230200
EAN: 4033592113250

Information about the product

Description

Universal pressure and support sleeve set with internal diameters of 18 to 78 mm and lengths of 40 mm, 100 mm, and 120 mm.

Ideal for removing and installing rubber bearings and supporting joints.

Contents:

  • Pressure and support sleeves, ø 18-78 mm, length 40 mm
  • Pressure and support sleeves, ø 26-70 mm, length 100 mm
  • Pressure/support sleeves ø 72-78 mm, length 120 mm

Technical data

Diameter from [mm] 18
Diameter to [mm] 78
Quality Premium

Scope of delivery

Item no. variant Name Quantity
81200001 - SAUER Pressure and Support Sleeve ø 18/26 mm × 40 mm 1
81200002 - SAUER Pressure and Support Sleeve ø 20/28 mm × 40 mm 1
81200003 - SAUER Pressure and Support Sleeve ø 22/30 mm × 40 mm 1
81200004 - SAUER Pressure and Support Sleeve ø 24/32 mm × 40 mm 1
81200005 - SAUER Pressure and Support Sleeve ø 26/34 mm × 40 mm 1
81200006 - SAUER Pressure and Support Sleeve ø 28/36 mm × 40 mm 1
81200007 - SAUER Pressure and Support Sleeve ø 30/38 mm × 40 mm 1
81200008 - SAUER Pressure and Support Sleeve ø 32/40 mm × 40 mm 1
81200009 - SAUER Pressure and Support Sleeve ø 34/42 mm × 40 mm 1
81200010 - SAUER Pressure and Support Sleeve ø 36/44 mm × 40 mm 1
81200011 - SAUER Pressure and Support Sleeve ø 38/46 mm × 40 mm 1
81200012 - SAUER Pressure and Support Sleeve ø 40/48 mm × 40 mm 1
81200013 - SAUER Pressure and Support Sleeve ø 42/50 mm × 40 mm 1
81200014 - SAUER Pressure and Support Sleeve ø 44/52 mm × 40 mm 1
81200015 - SAUER Pressure and Support Sleeve ø 46/54 mm × 40 mm 1
81200016 - SAUER Pressure and Support Sleeve ø 48/56 mm × 40 mm 1
81200017 - SAUER Pressure and Support Sleeve ø 50/58 mm × 40 mm 1
81200018 - SAUER Pressure and Support Sleeve ø 52/60 mm × 40 mm 1
81200019 - SAUER Pressure and Support Sleeve ø 54/62 mm × 40 mm 1
81200020 - SAUER Pressure and Support Sleeve ø 56/64 mm × 40 mm 1
81200021 - SAUER Pressure and Support Sleeve ø 58/66 mm × 40 mm 1
81200022 - SAUER Pressure and Support Sleeve ø 60/68 mm × 40 mm 1
81200023 - SAUER Pressure and Support Sleeve ø 62/70 mm × 40 mm 1
81200024 - SAUER Pressure and Support Sleeve ø 64/72 mm × 40 mm 1
81200025 - SAUER Pressure and Support Sleeve ø 66/74 mm × 40 mm 1
81200026 - SAUER Pressure and Support Sleeve ø 68/76 mm × 40 mm 1
81200027 - SAUER Pressure and Support Sleeve ø 70/78 mm × 40 mm 1
81200099 - SAUER Pressure and Support Sleeve ø 26/34 mm × 100 mm 1
81200049 - SAUER Pressure and Support Sleeve ø 28/36 mm × 100 mm 1
81200050 - SAUER Pressure and Support Sleeve ø 30/38 mm × 100 mm 1
81200051 - SAUER Pressure and Support Sleeve ø 32/40 mm × 100 mm 1
81200052 - SAUER Pressure and Support Sleeve ø 34/42 mm × 100 mm 1
81200053 - SAUER Pressure and Support Sleeve ø 36/44 mm × 100 mm 1
81200054 - SAUER Pressure and Support Sleeve ø 38/46 mm × 100 mm 1
81200055 - SAUER Pressure and Support Sleeve ø 40/48 mm × 100 mm 1
81200056 - SAUER Pressure and Support Sleeve ø 42/50 mm × 100 mm 1
81200057 - SAUER Pressure and Support Sleeve ø 44/52 mm × 100 mm 1
81200058 - SAUER Pressure and Support Sleeve ø 46/54 mm × 100 mm 1
81200059 - SAUER Pressure and Support Sleeve ø 48/56 mm × 100 mm 1
81200060 - SAUER Pressure and Support Sleeve ø 50/58 mm × 100 mm 1
81200061 - SAUER Pressure and Support Sleeve ø 52/60 mm × 100 mm 1
81200062 - SAUER Pressure and Support Sleeve ø 54/62 mm × 100 mm 1
81200063 - SAUER Pressure and Support Sleeve ø 56/64 mm × 100 mm 1
81200064 - SAUER Pressure and Support Sleeve ø 58/66 mm × 100 mm 1
81200065 - SAUER Pressure and Support Sleeve ø 60/68 mm × 100 mm 1
81200066 - SAUER Pressure and Support Sleeve ø 62/70 mm × 100 mm 1
81200067 - SAUER Pressure and Support Sleeve ø 64/72 mm × 100 mm 1
81200068 - SAUER Pressure and Support Sleeve ø 66/74 mm × 100 mm 1
81200069 - SAUER Pressure and Support Sleeve ø 68/76 mm × 100 mm 1
81200070 - SAUER Pressure and Support Sleeve ø 70/78 mm × 100 mm 1
81200071 - SAUER Pressure and Support Sleeve ø 72/80 mm × 120 mm 1
81200072 - SAUER Pressure and Support Sleeve ø 74/82 mm × 120 mm 1
81200073 - SAUER Pressure and Support Sleeve ø 76/84 mm × 120 mm 1
81200074 - SAUER Pressure and Support Sleeve ø 78/86 mm × 120 mm 1

In combination

Item no. variant Name
81231400 - SAUER Drive Set, manual
81231500 - Separating tip, 3,8 mm
80220033 - SAUER drive set, hydraulic, 13-piece
81230300 - SAUER Pressing clamp set, 7-piece
81230500 - SAUER Basic set with press frame, 5-piece
81230600 - SAUER Basic Set with Press Frame

Spare and wear parts

Item no. variant Name
81230200-SCHAUM - Tool insert
80290030 - SAUER Storage suitcase, empty
