SAUER Pressure and Support Sleeve Set, ø 102–120 mm

Short and long pressure and support sleeves

Item no.: 81230100
EAN: 4033592113243

Information about the product

Description

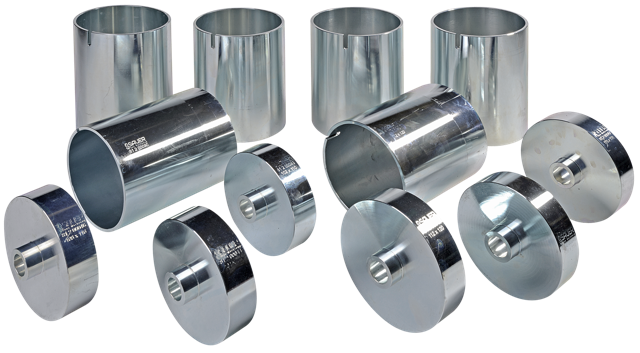

Universal pressure and support sleeve set with internal diameters of 102 to 120 mm and lengths of 40 mm and 150 mm.

Ideal for commercial vehicles.

12-piece

Contents:

  • Pressure/support sleeves ø 102–112 mm, length 40 mm
  • Pressure/support sleeves ø 110–120 mm, length 150 mm

Technical data

Diameter from [mm] 102
Diameter to [mm] 120
Quality Premium

Scope of delivery

Item no. variant Name Quantity
81200043 - SAUER Pressure and Support Sleeve ø 102/110 mm × 40 mm 1
81200044 - SAUER Pressure and Support Sleeve ø 104/112 mm × 40 mm 1
81200045 - SAUER Pressure and Support Sleeve ø 106/114 mm × 40 mm 1
81200046 - SAUER Pressure and Support Sleeve ø 108/116 mm × 40 mm 1
81200047 - SAUER Pressure and Support Sleeve ø 110/118 mm × 40 mm 1
81200048 - SAUER Pressure and Support Sleeve ø 112/120 mm × 40 mm 1
81200090 - SAUER Pressure and Support Sleeve ø 110/118 mm × 150 mm 1
81200091 - SAUER Pressure and Support Sleeve ø 112/120 mm × 150 mm 1
81200092 - SAUER Pressure and Support Sleeve ø 114/122 mm × 150 mm 1
81200093 - SAUER Pressure and Support Sleeve ø 116/124 mm × 150 mm 1
81200094 - SAUER Pressure and Support Sleeve ø 118/126 mm × 150 mm 1
81200095 - SAUER Pressure and Support Sleeve ø 120/128 mm × 150 mm 1

In combination

Item no. variant Name
81231400 - SAUER Drive Set, manual
81231500 - Separating tip, 3,8 mm
80220033 - SAUER drive set, hydraulic, 13-piece
81230300 - SAUER Pressing clamp set, 7-piece
81230500 - SAUER Basic set with press frame, 5-piece
81230600 - SAUER Basic Set with Press Frame

Spare and wear parts

Item no. variant Name
81230100-SCHAUM - Tool insert
80290030 - SAUER Storage suitcase, empty
