Description

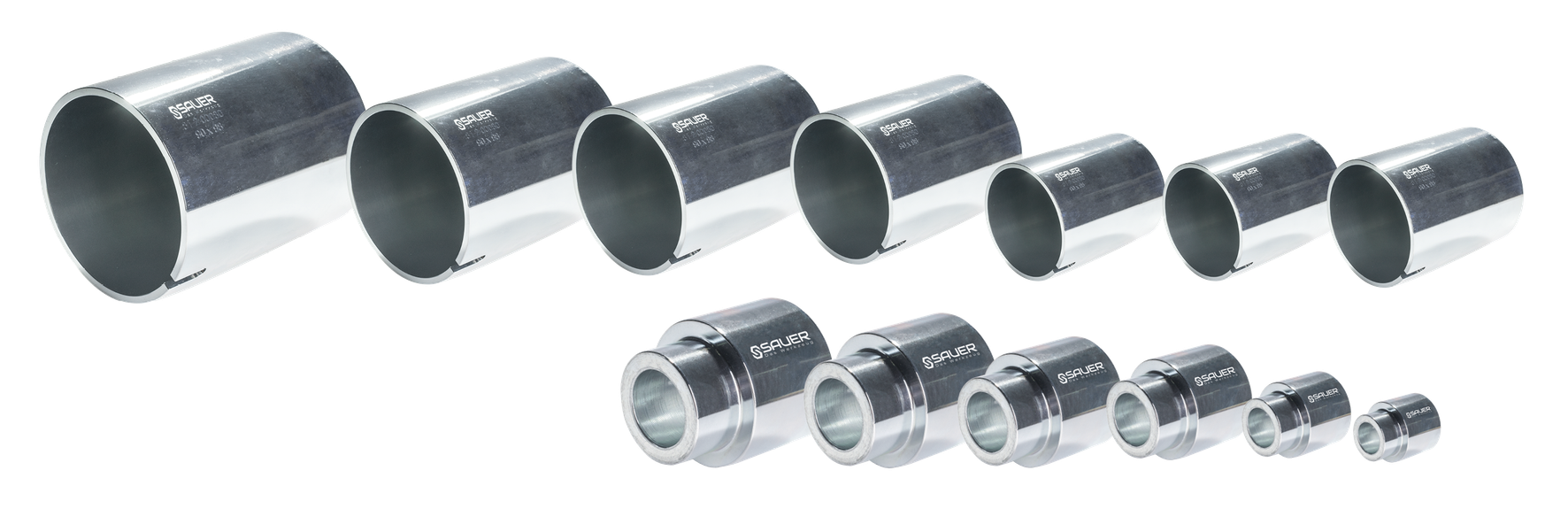

Universal pressure and support sleeve set with internal diameters of 72 to 108 mm and lengths of 40 mm, 120 mm, and 150 mm.

Ideal for removing and installing rubber bearings and wheel bearings.



30-piece

Contents:

•          Pressure/support sleeves ø 72–100 mm, length 40 mm
• Pressure/support sleeves ø 80–100 mm, length 120 mm
• Pressure/support sleeves ø 102–108 mm, length 150 mm

Technical data

Diameter from [mm]	72
Diameter to [mm]	100
Quality	Premium

Documents

Operating manual
Oct. 24, 2019, 3:59 p.m.

Scope of delivery

	Item no.	variant	Name	Quantity
	81200028	-	SAUER Pressure and Support Sleeve ø 72/80 mm × 40 mm	1
	81200029	-	SAUER Pressure and Support Sleeve ø 74/82 mm × 40 mm	1
	81200030	-	SAUER Pressure and Support Sleeve ø 76/84 mm × 40 mm	1
	81200031	-	SAUER Pressure and Support Sleeve ø 78/86 mm × 40 mm	1
	81200032	-	SAUER Pressure and Support Sleeve ø 80/88 mm × 40 mm	1
	81200033	-	SAUER Pressure and Support Sleeve ø 82/90 mm × 40 mm	1
	81200034	-	SAUER Pressure and Support Sleeve ø 84/92 mm × 40 mm	1
	81200035	-	SAUER Pressure and Support Sleeve ø 86/94 mm × 40 mm	1
	81200036	-	SAUER Pressure and Support Sleeve ø 88/96 mm × 40 mm	1
	81200037	-	SAUER Pressure and Support Sleeve ø 90/98 mm × 40 mm	1
	81200038	-	SAUER Pressure and Support Sleeve ø 92/100 mm × 40 mm	1
	81200039	-	SAUER Pressure and Support Sleeve ø 94/102 mm × 40 mm	1
	81200040	-	SAUER Pressure and Support Sleeve ø 96/104 mm × 40 mm	1
	81200041	-	SAUER Pressure and Support Sleeve ø 98/106 mm × 40 mm	1
	81200042	-	SAUER Pressure and Support Sleeve ø 100/108 mm × 40 mm	1
	81200075	-	SAUER Pressure and Support Sleeve ø 80/88 mm × 120 mm	1
	81200076	-	SAUER Pressure and Support Sleeve ø 82/90 mm × 120 mm	1
	81200077	-	SAUER Pressure and Support Sleeve ø 84/92 mm × 120 mm	1
	81200078	-	SAUER Pressure and Support Sleeve ø 86/94 mm × 120 mm	1
	81200079	-	SAUER Pressure and Support Sleeve ø 88/96 mm × 120 mm	1
	81200080	-	SAUER Pressure and Support Sleeve ø 90/98 mm × 120 mm	1
	81200081	-	SAUER Pressure and Support Sleeve ø 92/100 mm × 120 mm	1
	81200082	-	SAUER Pressure and Support Sleeve ø 94/102 mm × 120 mm	1
	81200083	-	SAUER Pressure and Support Sleeve ø 96/104 mm × 120 mm	1
	81200084	-	SAUER Pressure and Support Sleeve ø 98/106 mm × 120 mm	1
	81200085	-	SAUER Pressure and Support Sleeve ø 100/108 mm × 120 mm	1
	81200086	-	SAUER Pressure and Support Sleeve ø 102/110 mm × 150 mm	1
	81200087	-	SAUER Pressure and Support Sleeve ø 104/112 mm × 150 mm	1
	81200088	-	SAUER Pressure and Support Sleeve ø 106/114 mm × 150 mm	1
	81200089	-	SAUER Pressure and Support Sleeve ø 108/116 mm × 150 mm	1

In combination

	Item no.	variant	Name
	81231400	-	SAUER Drive Set, manual
	81231500	-	Separating tip, 3,8 mm
	80220033	-	SAUER drive set, hydraulic, 13-piece
	81230300	-	SAUER Pressing clamp set, 7-piece
	81230500	-	SAUER Basic set with press frame, 5-piece
	81230600	-	SAUER Basic Set with Press Frame

Spare and wear parts

	Item no.	variant	Name
	81230000-SCHAUM	-	Tool insert
	80290030	-	SAUER Storage suitcase, empty
