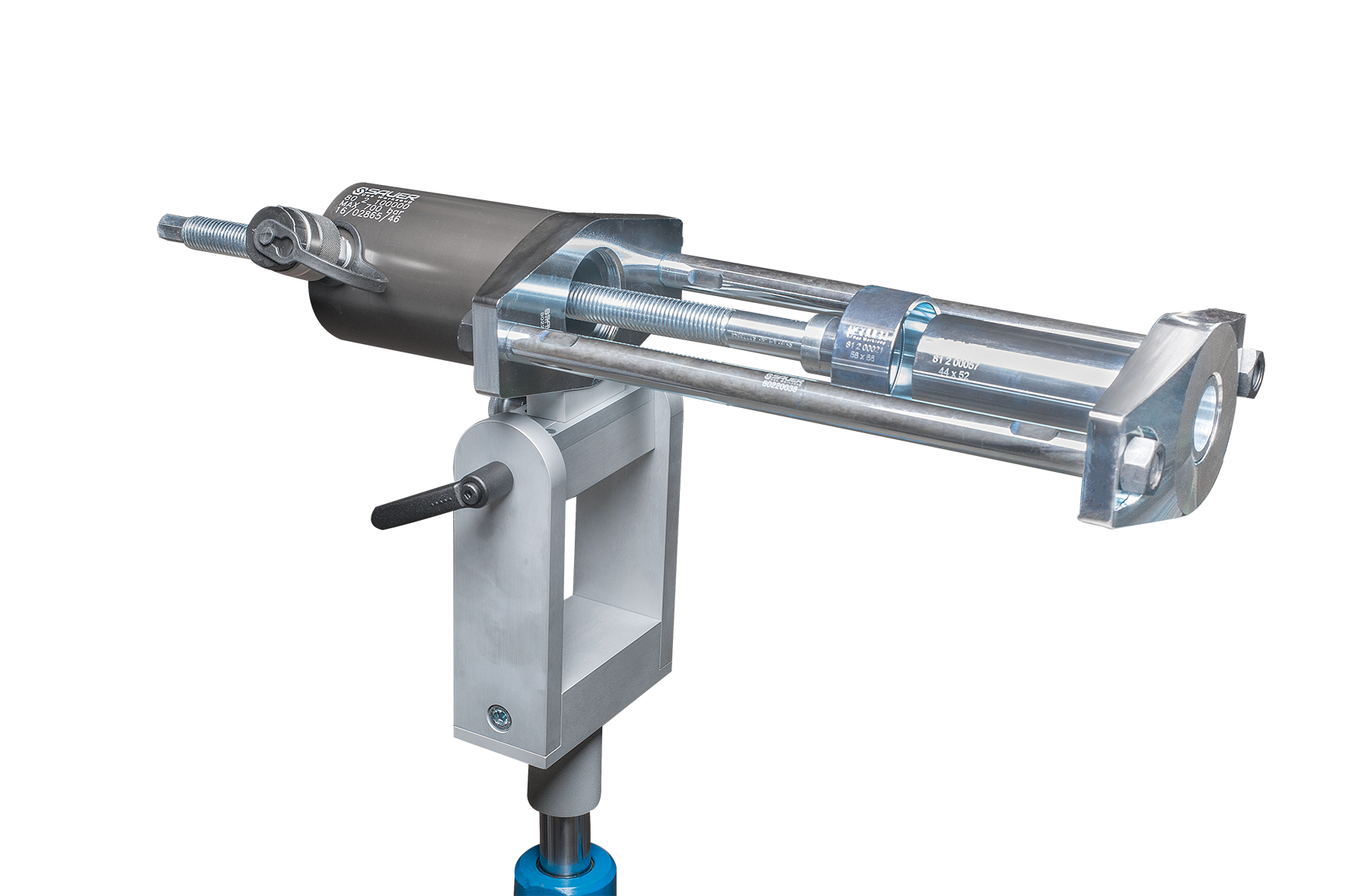

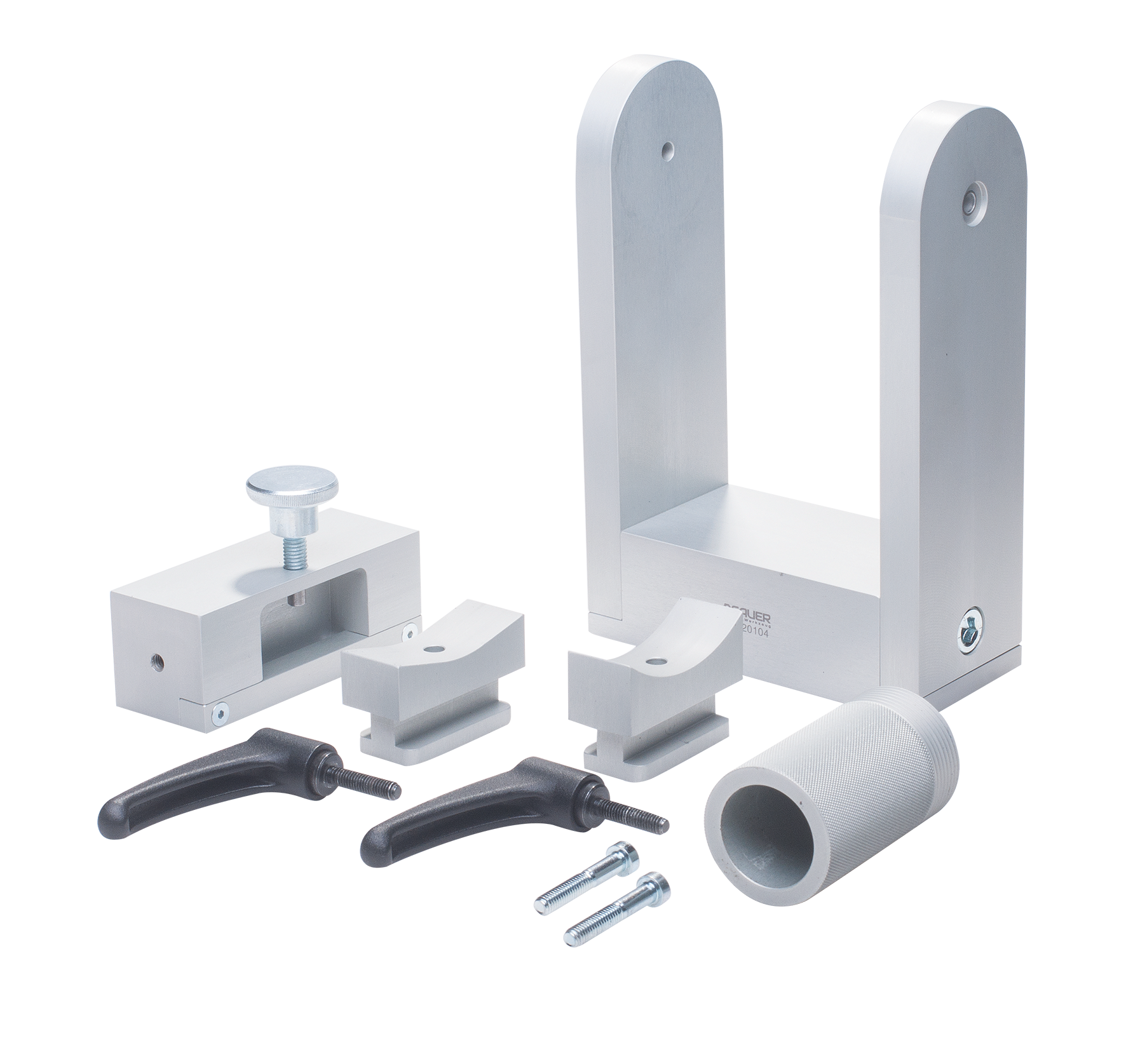

This cylinder holder made of aluminium can be deployed rapidly and is highly flexible. The Sauer adapter plates and/or press frames are fitted with an additional holder, which can be quickly and easily inserted into the holding device of the cylinder holder and locked in place. The holding device can be rotated and fixed in place in any position with a locking handle. The cylinder holder may be mounted on any standard transmission jack with a ø 30 mm piston rod. Adapters for transmission jacks with ø 25 mm and ø 36 mm piston rods can be added at any time.

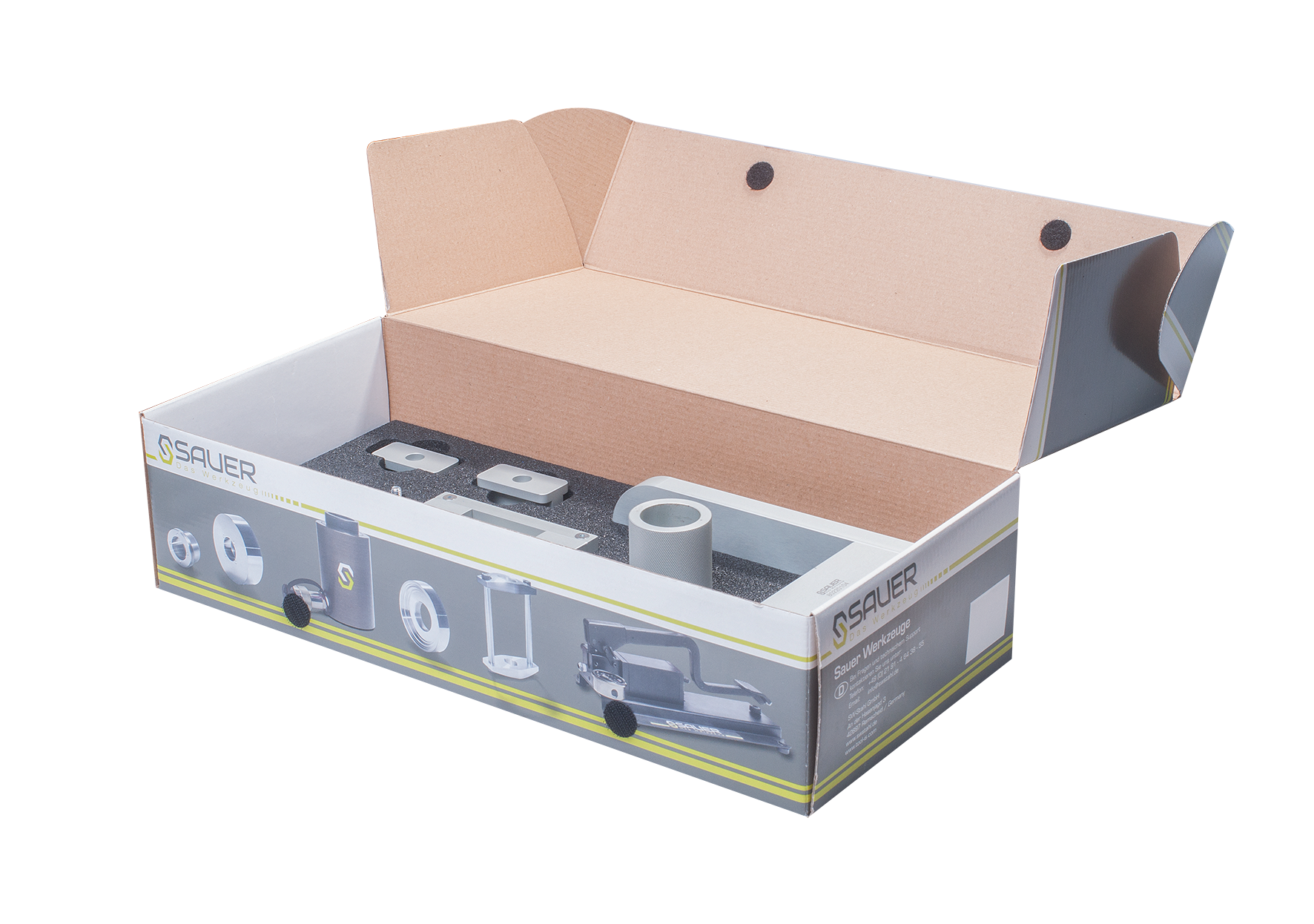

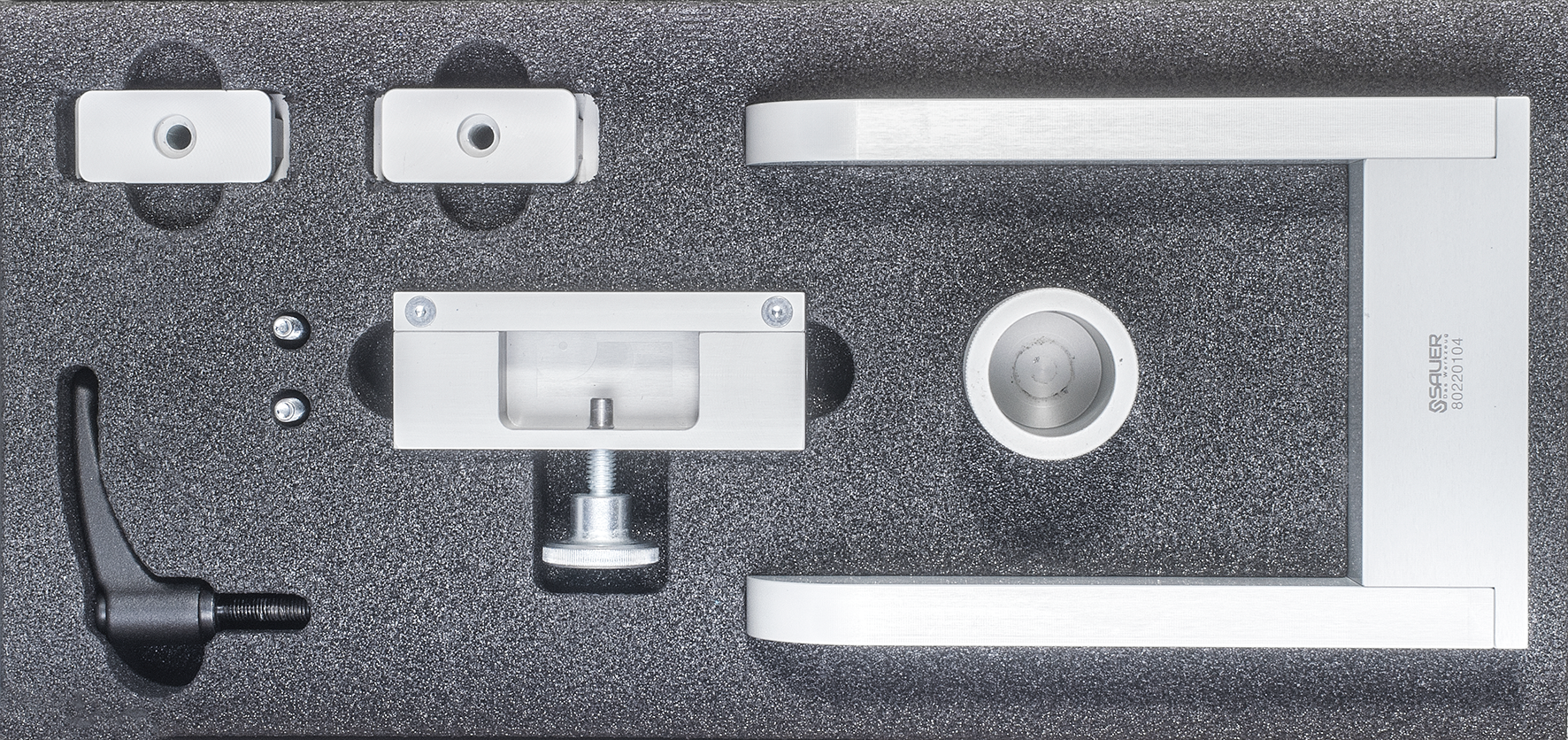

The scope of delivery of the set also includes screw-on holders for Sauer press frames and adapter plates, as well as a socket for transmission jacks with a piston rod diameter of 30 mm. The provided foam insert ensures damage-free storage.
| Number of tools | 9 | |
| Quality | Premium |
| Item no. | variant | Name | Quantity | |
|---|---|---|---|---|
|
80220102 | - | SAUER Retaining Tube ø 30 mm | 1 |
|
80220107 | - | SAUER Cylinder Adapter | 1 |
|
80220115 | - | SAUER Press Frame Mounting | 1 |
| Item no. | variant | Name | |
|---|---|---|---|
|
80220101 | - | SAUER Retaining Tube ø 25 mm |
|
80220103 | - | SAUER Retaining Tube ø 36 mm |
|
80220114 | - | SAUER Pressing Clamp Holder |
| Item no. | variant | Name | |
|---|---|---|---|
|
|
80220100-SCHAUM | - | Tool insert |
