CRAFT BOX Bit set, compact, 1/4", 53-piece


Item no.: 04653L
EAN: 4033592150521

Information about the product

Description

The compact and high-quality bit and socket spanner set with the unique 6.3 mm (1/4") mini bit ratchet from SW STAHL!

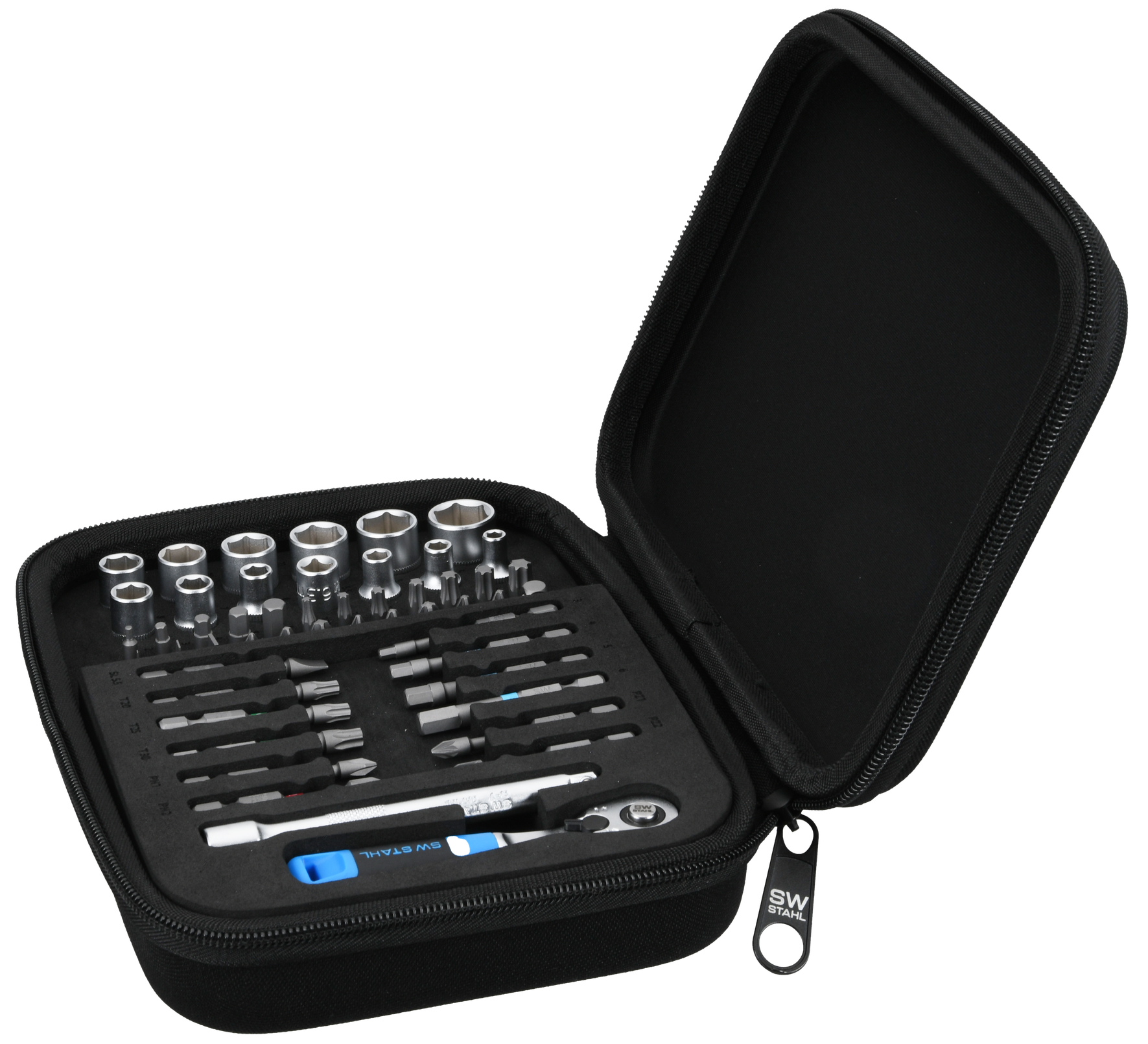

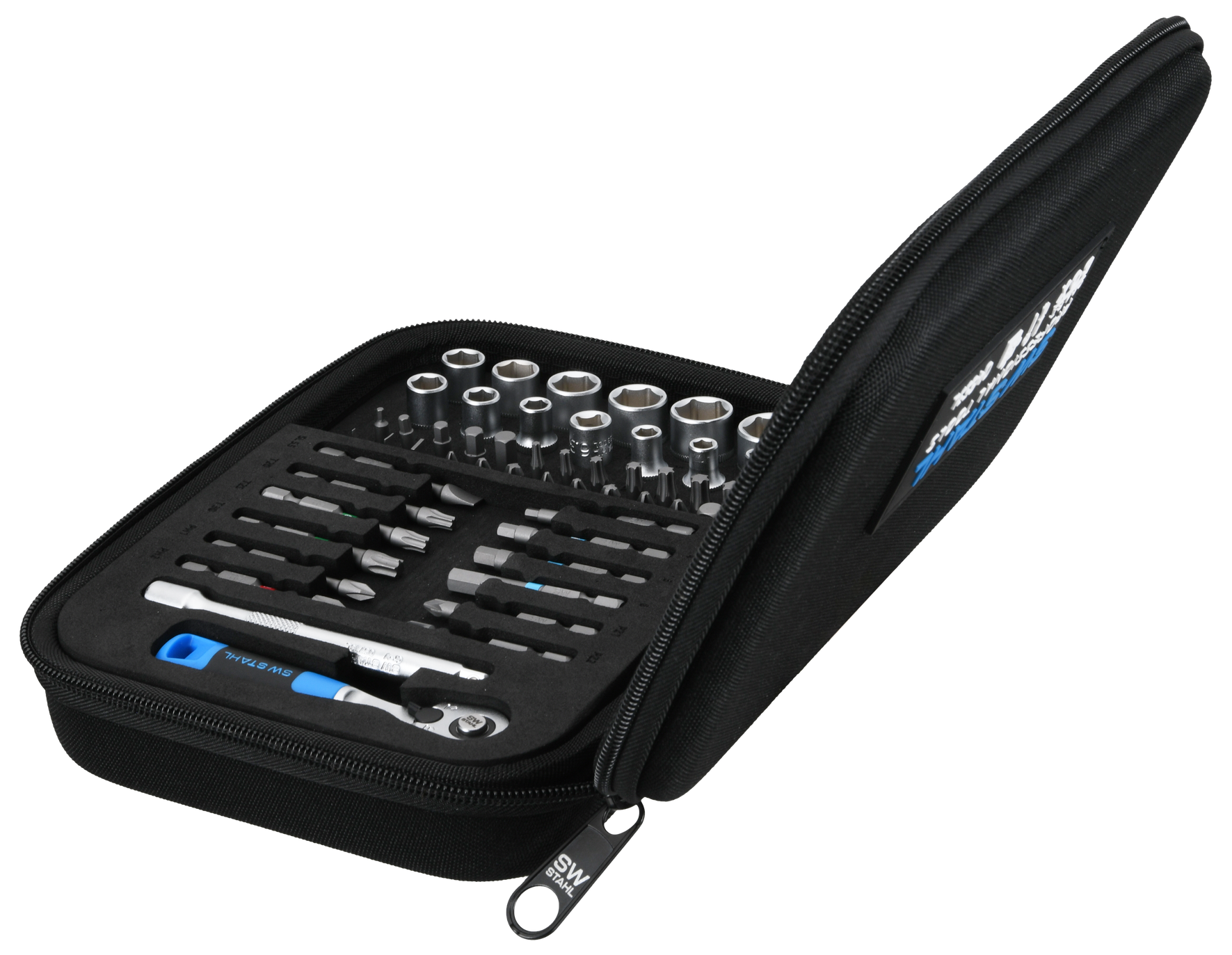

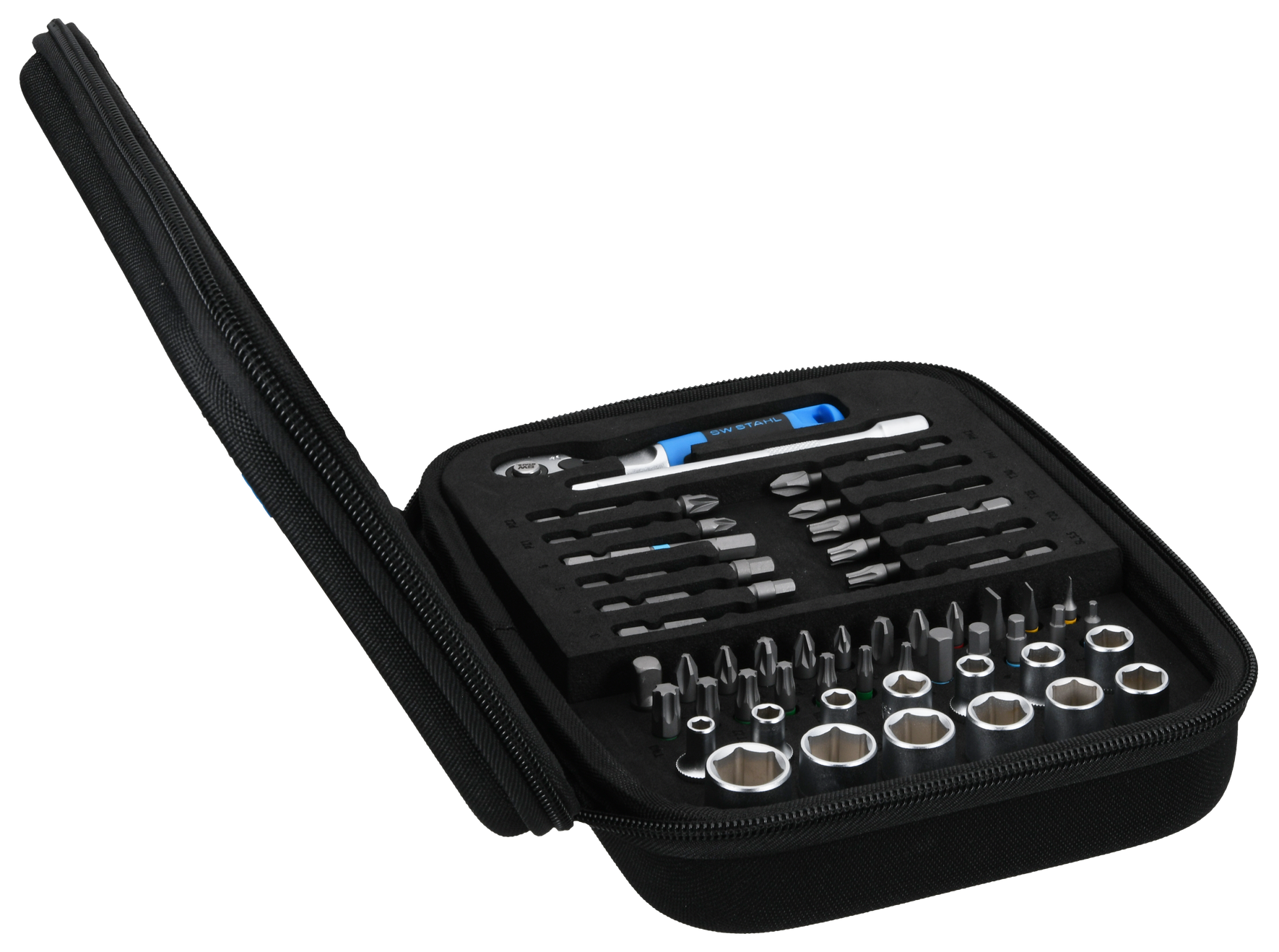

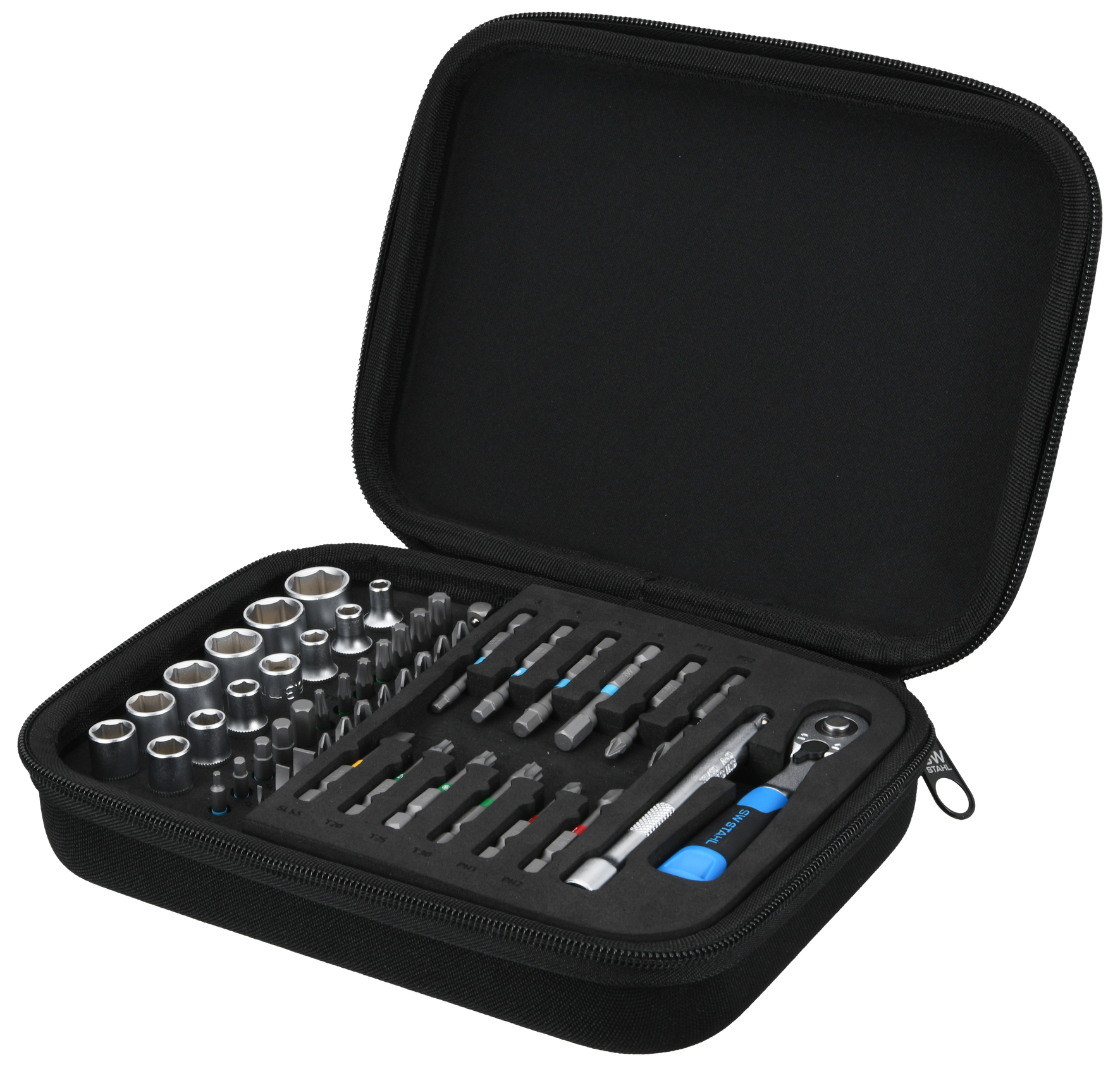

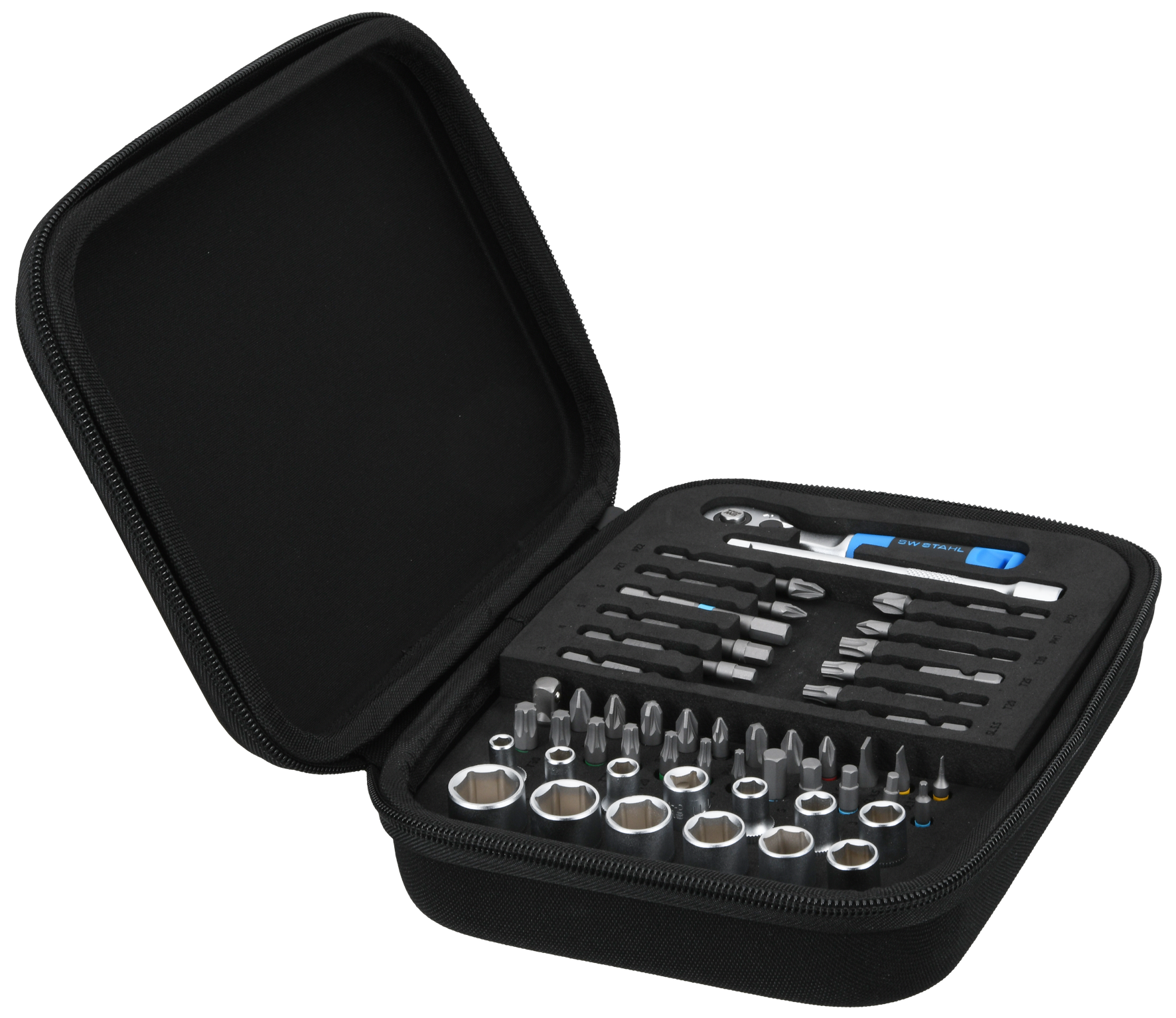

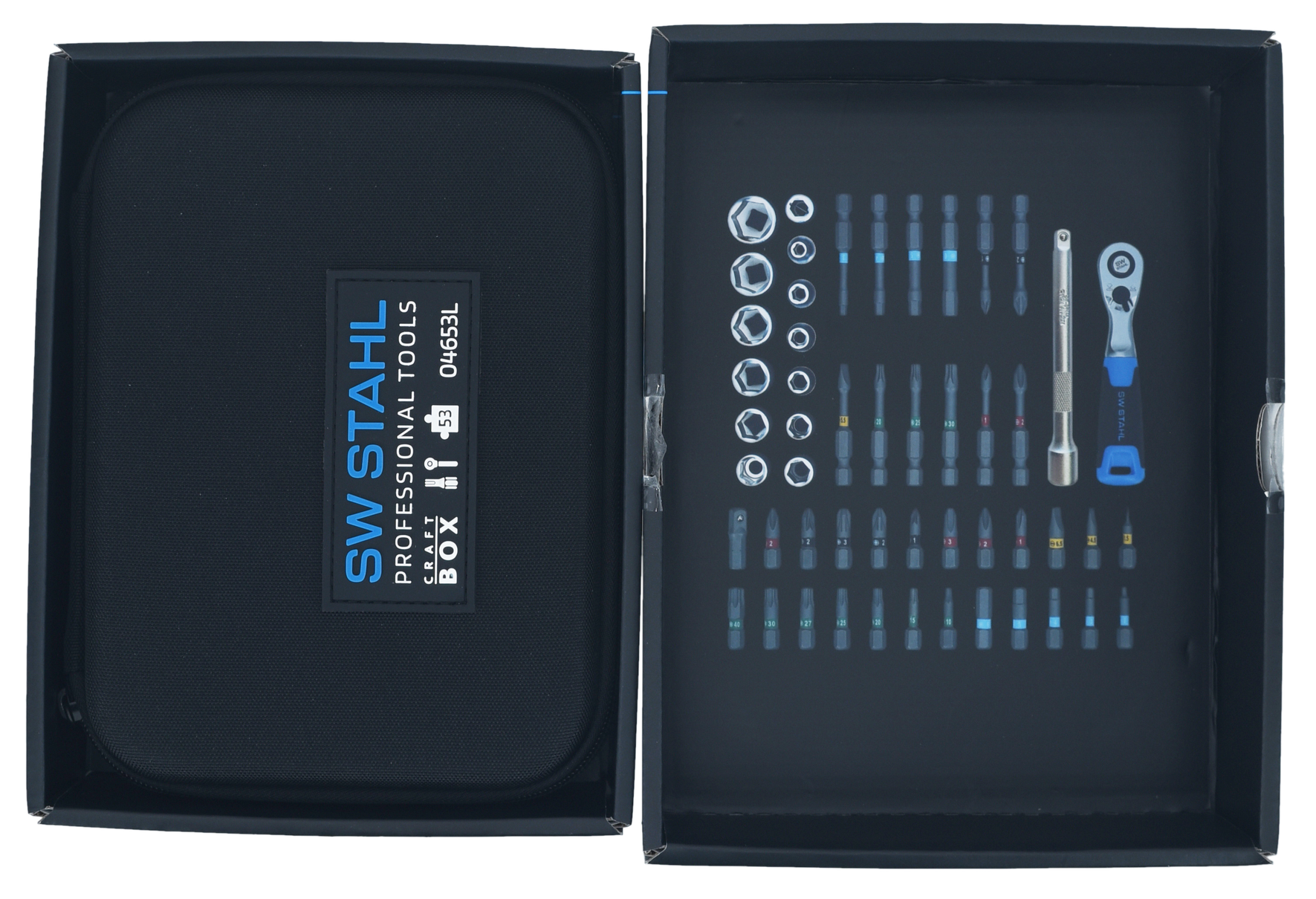

Practical and elegant: the tool is safely stored in the handy nylon pouch and in a removable foam insert at all times.

  • SW STAHL mini bit ratchet, 6.3 mm (1/4"):
    • Extra short overall length of 100 mm
    • Extra narrow ratchet head for working in confined spaces
    • Extra fine-toothed with 72 teeth
    • Tested in accordance with DIN 3122:2017 and ISO33115:2018
    • Max. torque > 100 Nm (61% above the DIN requirement)
    • Non-slip and ergonomic 2-component handle "Designed in Germany"
  • Tool properties in accordance with the respective DIN specification
  • Socket spanners made from chrome vanadium steel
  • 6.3 mm (1/4") bits with practical colour coding ring and made from robust S2 steel material

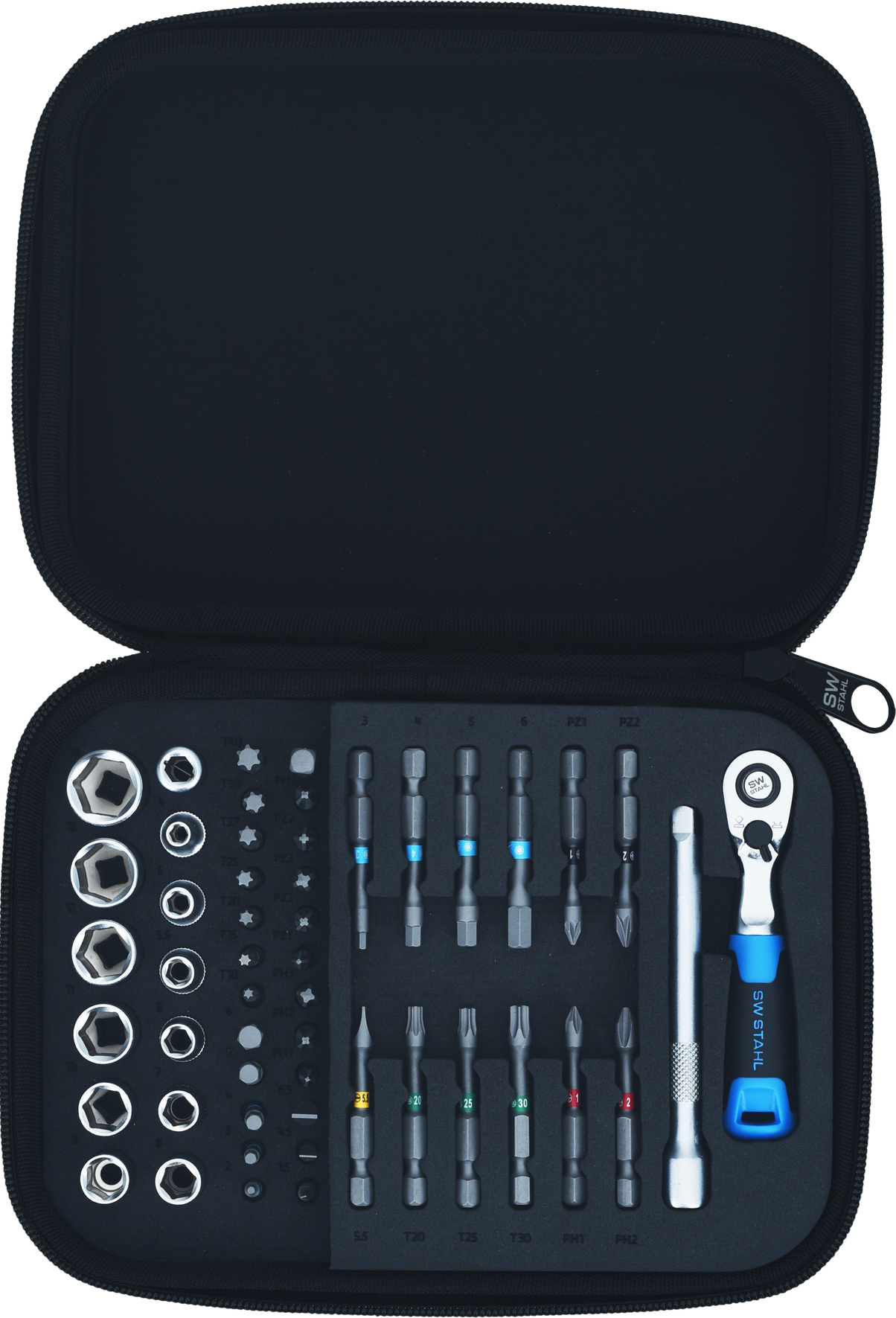

 Contents:

  • Mini bit ratchet, 6.3 mm (1/4"), 100 mm
  • Extension, 6.3 mm (1/4"), 100 mm
  • Bit adapter, 6.3 mm (1/4‘) drive to 6.3 mm (1/4’) bits
  • Socket spanner adapter, 6.3 mm (1/4‘) drive to 6.3 mm (1/4’) socket, hexagon
  • 1 socket spanner each with 6.3 mm (1/4") drive, hexagon:
    • 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14 mm
  • Screwdriver bits with 6.3 mm (1/4") drive x 25 mm length:
    • Cross: 1x PH1, 2x PH2, 1x PH3
    • Cross: 1x PZ1, 2x PZ2, 1x PZ3
    • Slot: 1x 1.5 mm, 1x 4.5 mm, 1x 6.5 mm
    • T-profile: 1x T10, 1x T15, 1x T20, 1x T25, 1x T27, 1x T30, 1xT40
    • Hexagon: 1x 2 mm, 1x 3 mm, 1x 4 mm, 1x 5 mm, 1x 6 mm
  • Screwdriver bits with 6.3 mm (1/4") drive x 50 mm length:
    • Cross: 1x PH1, 1x PH2
    • Cross: 1x PZ1, 1x PZ2
    • Slot: 1x 5.5 mm
    • T-profile: 1x T20, 1x T25, 1x T30
    • Hexagon: 1x 3 mm, 1x 4 mm, 1x 5 mm, 1x 6 mm
  • Foam insert, removable

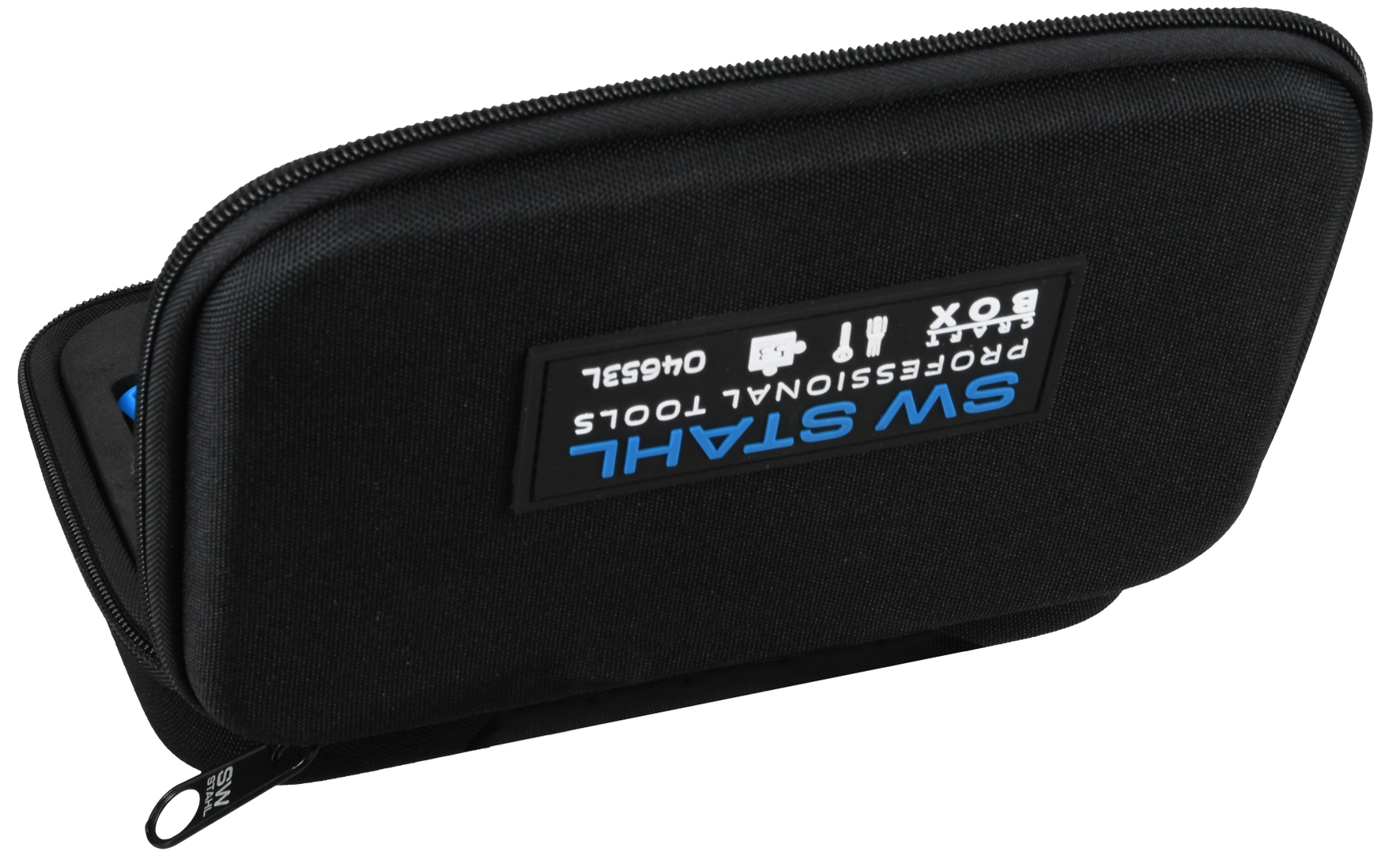

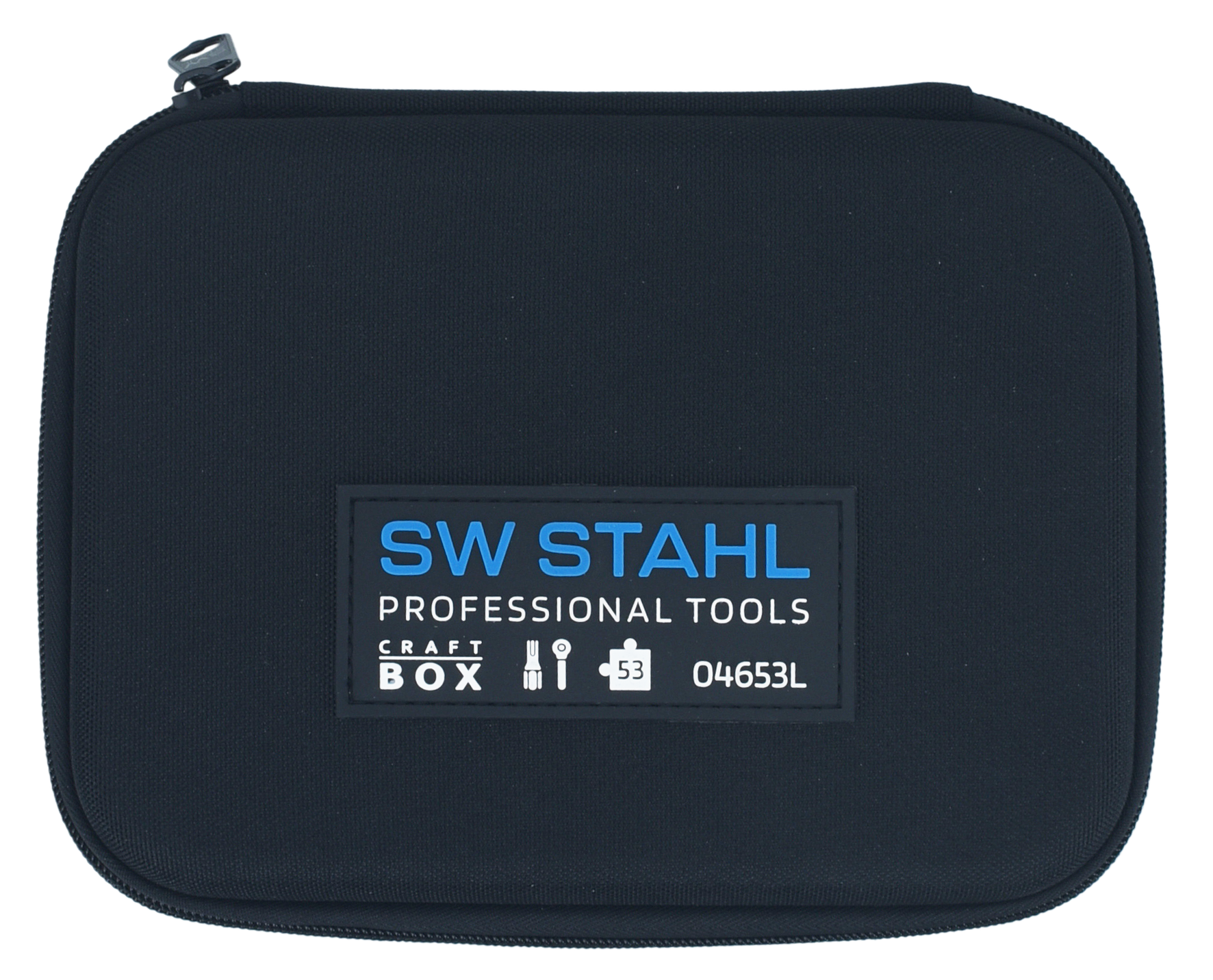

  • Nylon bag

Technical data

Antriebs-Sechskant [mm] 6,3 (1/4")
Number of tools 53
Length [mm] 220
Width [mm] 170
Height [mm] 55
Weight [kg] 0.78000

More images

Detailed images

Application images

Scope of delivery

Item no. variant Name Quantity
05300L - Bit adapter, 1/4“ drive to 1/4” bits 1
05718L - Extension, 1/4", 100 mm 1
05401L L SB Spanner socket, 1/4", 4 mm 1
05403L L SB Spanner socket, 1/4", 5 mm 1
05404L L SB Spanner socket, 1/4" , 5,5 mm 1
05405L L SB Spanner socket, 1/4" , 6 mm 1
05406L L SB Spanner socket, 1/4", 7 mm 1
05407L L SB Spanner socket, 1/4", 8 mm 1
05408L L SB Spanner socket, 1/4" , 9,0 mm 1
05409L L SB Spanner socket, 1/4", 10 mm 1
05410L L SB Spanner socket, 1/4" , 11,0 mm 1
05411L L SB Spanner socket, 1/4", 12 mm 1
05412L L SB Spanner socket, 1/4", 13 mm 1
05413L L SB Spanner socket, 1/4", 14 mm 1
04240L - Screwdriver bit, 1/4”, with color coding, 25 mm, T-profile, T10 1
04241L - Screwdriver bit, 1/4”, with color coding, 25 mm, T-profile, T15 1
04242L - Screwdriver bit, 1/4”, with color coding, 25 mm, T-profile, T20 1
04243L - Screwdriver bit, 1/4”, with color coding, 25 mm, T-profile, T25 1
04244L - Screwdriver bit, 1/4”, with color coding, 25 mm, T-profile, T27 1
04245L - Screwdriver bit, 1/4”, with color coding, 25 mm, T-profile, T30 1
04246L - Screwdriver bit, 1/4”, with color coding, 25 mm, T-profile, T40 1
04250L - Screwdriver bit, 1/4”, with color coding, 25 mm, cross, PH1 1
04251L - Screwdriver bit, 1/4”, with color coding, 25 mm, cross, PH2 2
04253L - Screwdriver bit, 1/4”, with color coding, 25 mm, cross, PH3 1
04255L - Screwdriver bit, 1/4”, with color coding, 25 mm, cross, PZ1 1
04256L - Screwdriver bit, 1/4”, with color coding, 25 mm, cross, PZ2 2
04257L - Screwdriver bit, 1/4”, with color coding, 25 mm, cross, PZ3 1
04270L - Screwdriver bit, 1/4”, with color coding, 25 mm, hexagon, 2 mm 1
04271L - Screwdriver bit, 1/4”, with color coding, 25 mm, hexagon, 3 mm 1
04272L - Screwdriver bit, 1/4”, with color coding, 25 mm, hexagon, 4 mm 1
04273L - Screwdriver bit, 1/4”, with color coding, 25 mm, hexagon, 5 mm 1
04274L - Screwdriver bit, 1/4”, with color coding, 25 mm, hexagon, 6 mm 1
04260L - Screwdriver bit, 1/4”, with color coding, 25 mm, slotted, 1.5 mm 1
04262L - Screwdriver bit, 1/4”, with color coding, 25 mm, slot, 4.5 mm 1
04264L - Screwdriver bit, 1/4”, with color coding, 25 mm, slot, 6.5 mm 1
04282L - Screwdriver bit, 1/4”, with color coding, 50 mm, T-profile, T20 1
04283L - Screwdriver bit, 1/4”, with color coding, 50 mm, T-profile, T25 1
04285L - Screwdriver bit, 1/4”, with color coding, 50 mm, T-profile, T30 1
04290L - Screwdriver bit, 1/4”, with color coding, 50 mm, cross, PH1 1
04291L - Screwdriver bit, 1/4”, with color coding, 50 mm, cross, PH2 1
04295L - Screwdriver bit, 1/4”, with color coding, 50 mm, cross, PZ1 1
04296L - Screwdriver bit, 1/4”, with color coding, 50 mm, cross, PZ2 1
04312L - Screwdriver bit, 1/4”, with color coding, 50 mm, hexagon, 3 mm 1
04313L - Screwdriver bit, 1/4”, with color coding, 50 mm, hexagon, 4 mm 1
04314L - Screwdriver bit, 1/4”, with color coding, 50 mm, hexagon, 5 mm 1
04315L - Screwdriver bit, 1/4”, with color coding, 50 mm, hexagon, 6 mm 1
04304L - Screwdriver bit, 1/4”, with color coding, 50 mm, slot, 5.5 mm 1
06024L - Mini bit ratchet wrench, 1/4", 100 mm 1
EH-1 - Socket adapter, 1/4" hexagon to 1/4" square, 25 mm 1
