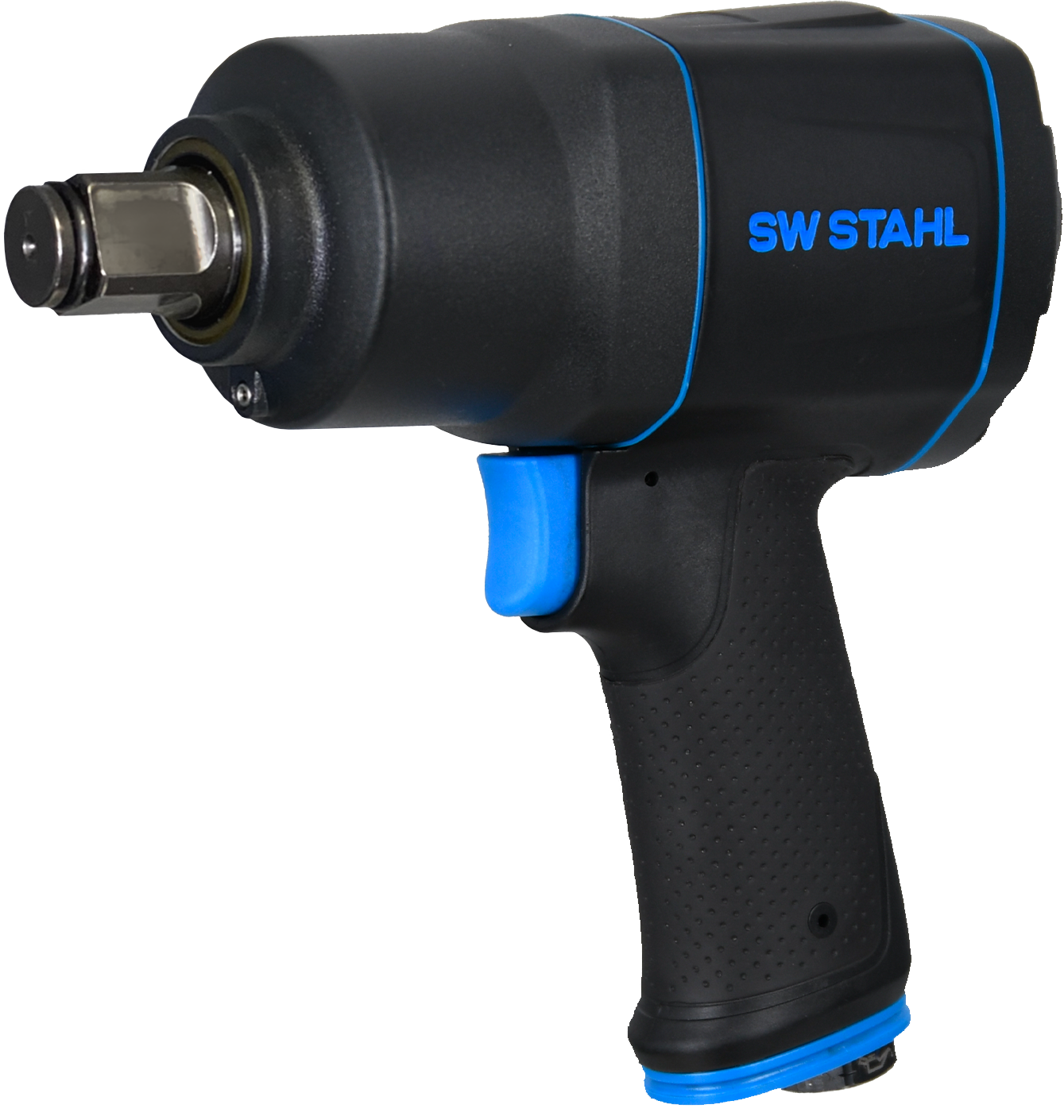

Pneumatic IMPACT wrench, 3/4", 1.900 Nm

Designed in Germany


Item no.: S3470
EAN: 4033592148887

Information about the product

Description

20 mm (3/4”) drive

  • High performance twin hammer mechanism
  • Threefold torque selection
  • Max. torque 3rd speed: 1.300 Nm
  • Max. release torque: 1.900 Nm
  • Fatigue-proof work due to low net weight
  • Single handed switching for clockwise/anticlockwise running
  • Very low vibration
  • Ergonomic 2-component (TPR+Nylon) handle with special non-slip texture
  • 1/4” inlet nipple included
  • "Designed in Germany"

Technical data

Abtriebs-Vierkant [mm] 20 (3/4")
Torque [Nm] 1300
Overall Height [mm] 170
Release Torque [Nm] 1900
Operating pressure to [bar] 6.30000
Service Speed [1/min] 8500
Thread Size, compressed air connection 1/4"
Luftverbrauch [l/m] 170
Noise Level [dB] 91.00000
Sound Power Level [dB] 102.00000
Vibration Acceleration [m/s²] 5.20000
Weight [kg] 2.25000
