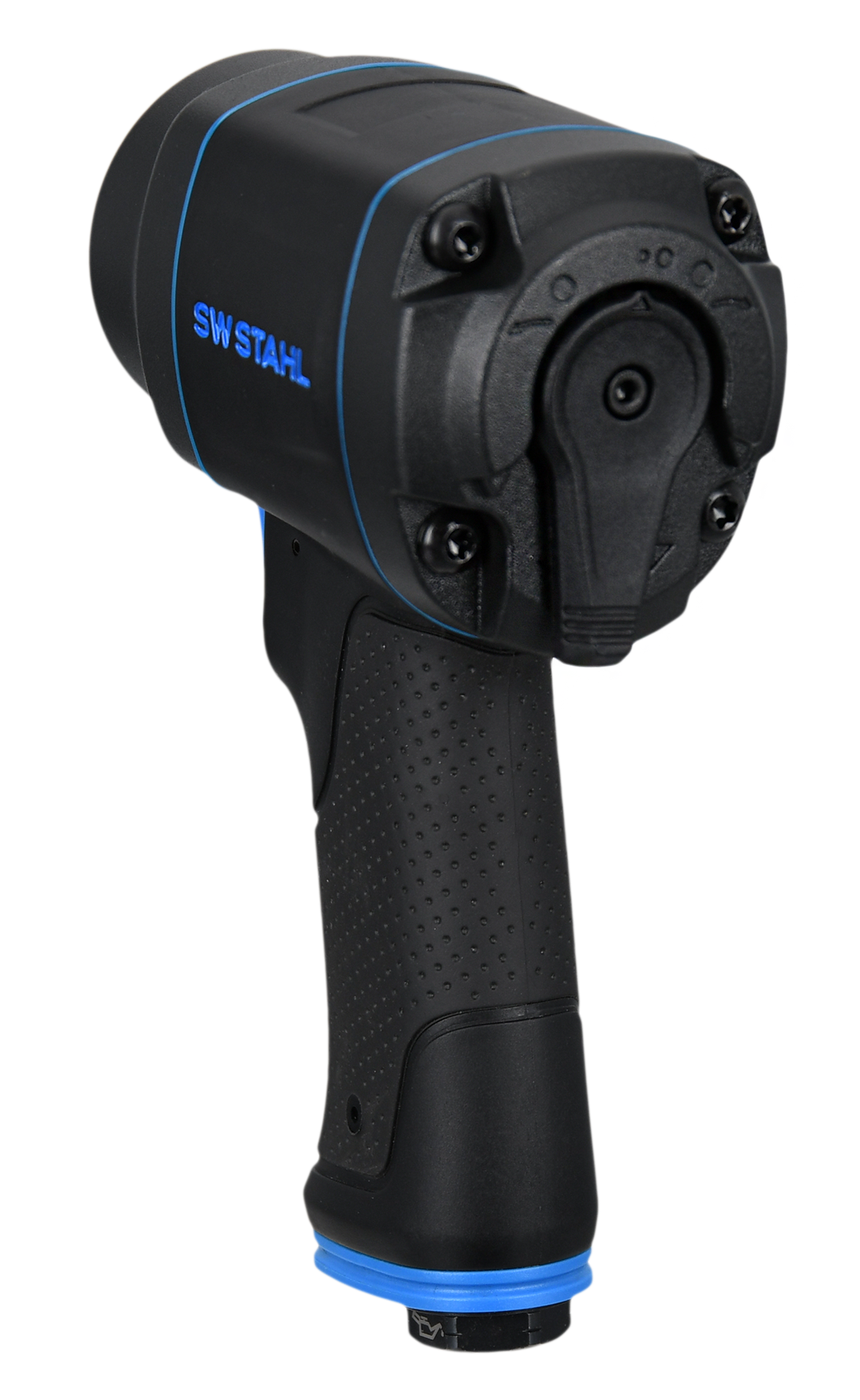

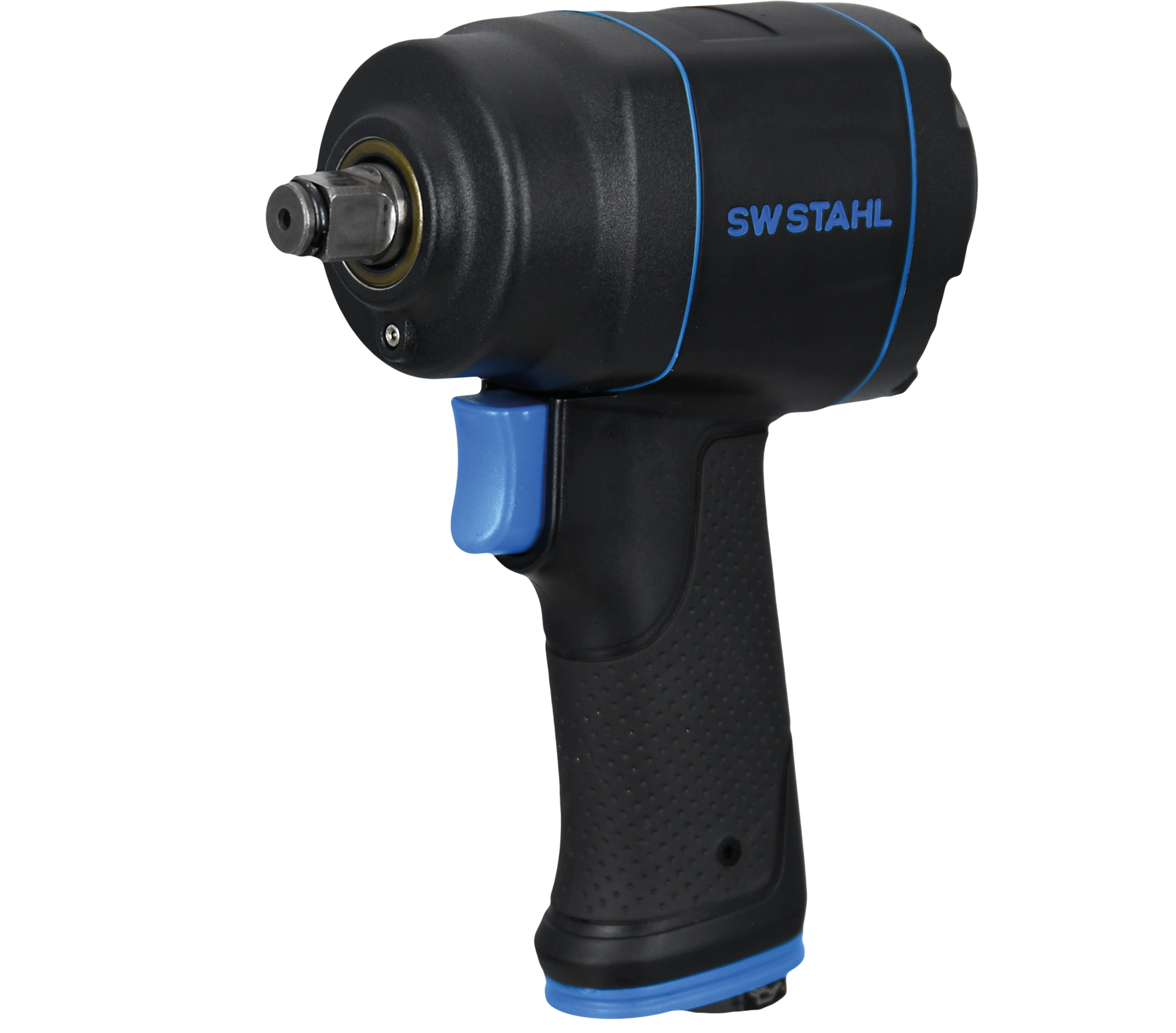

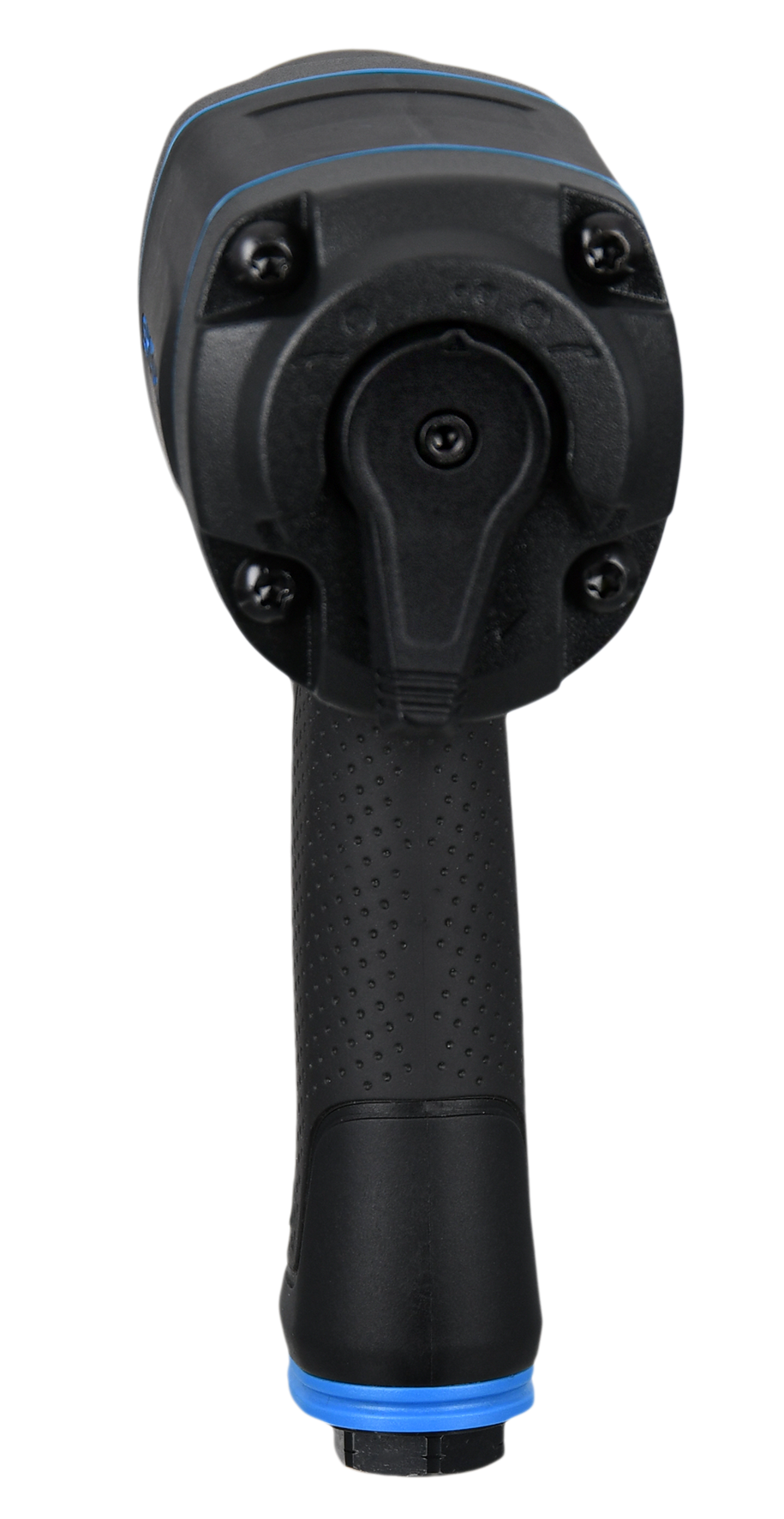

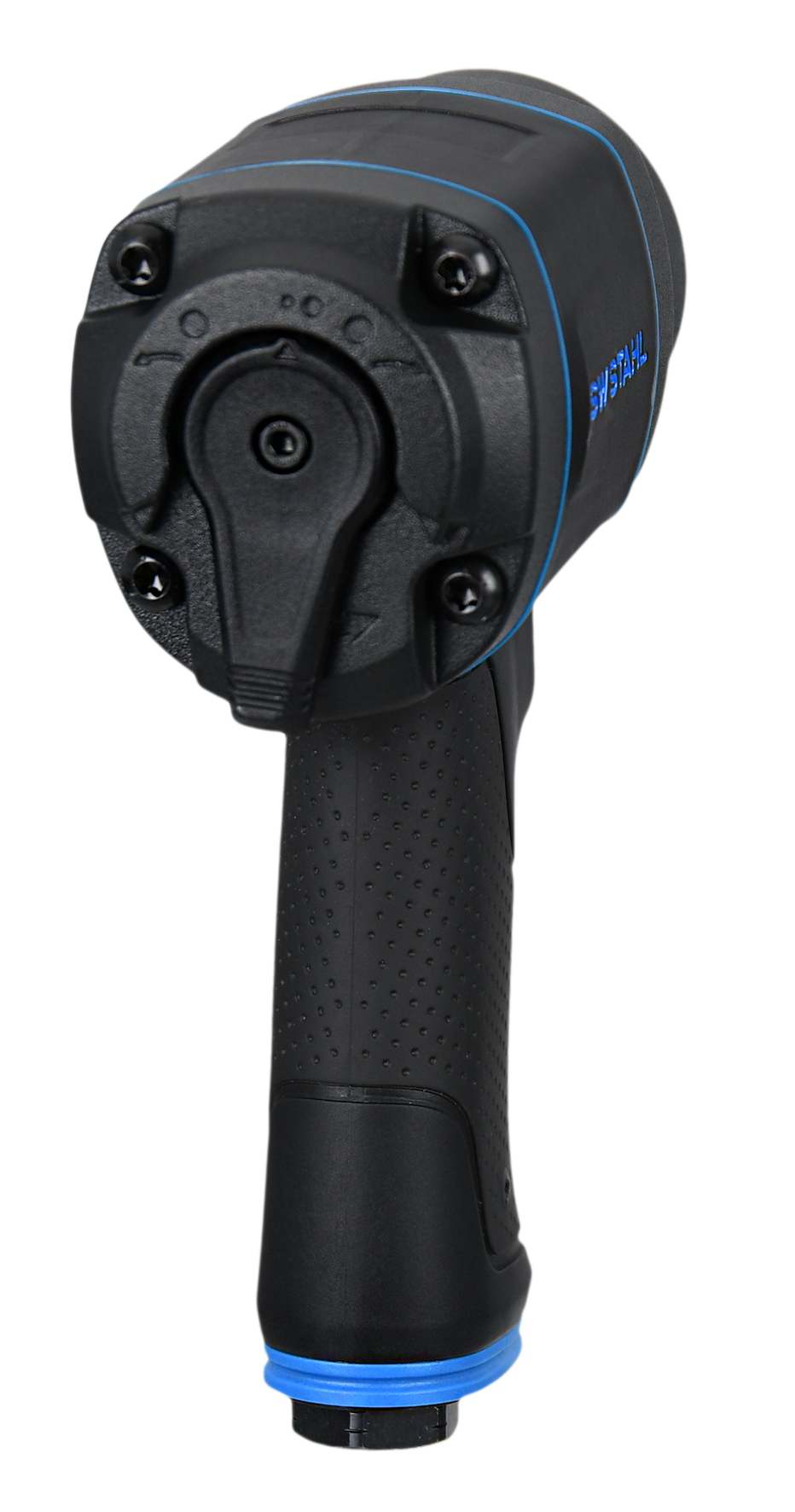

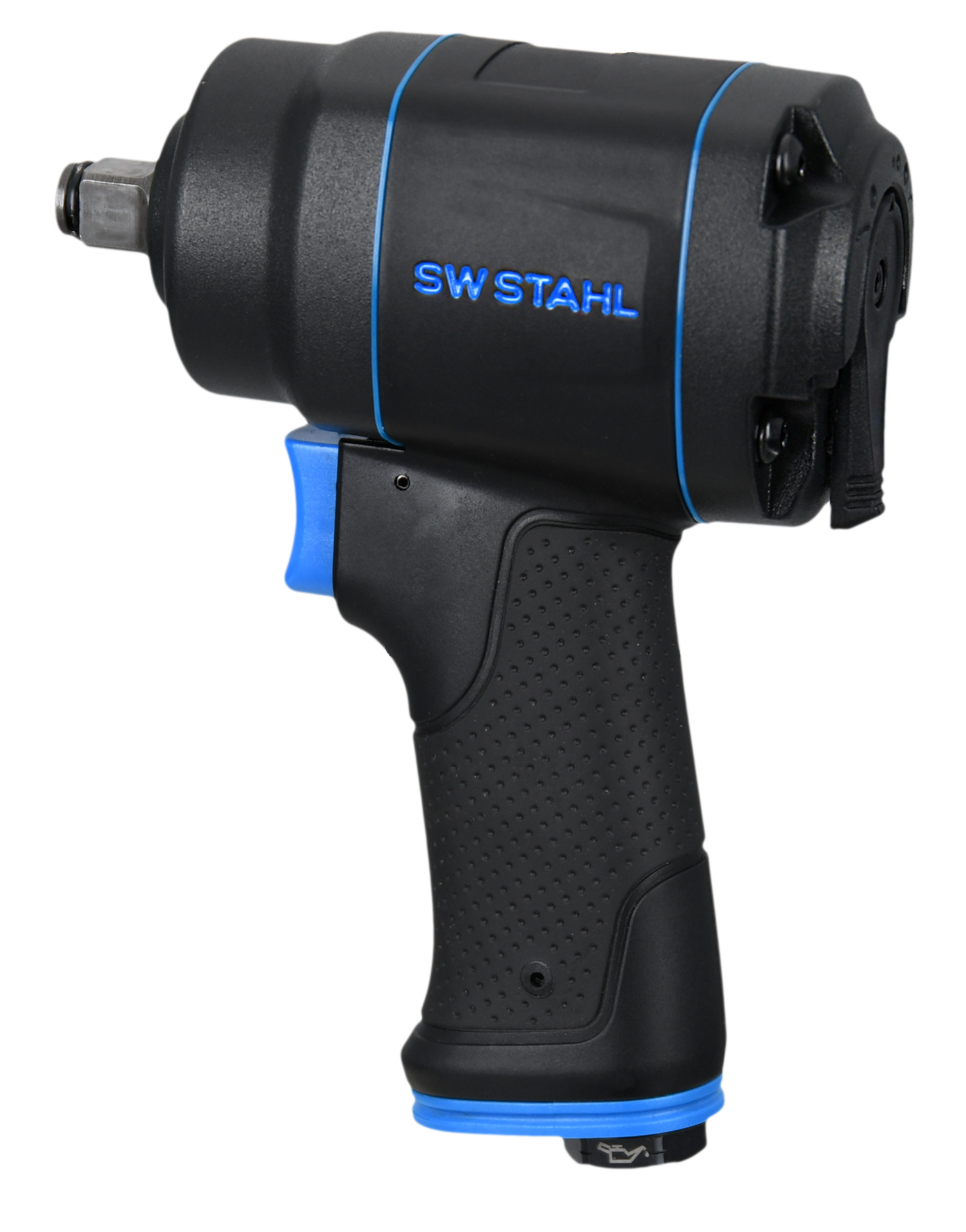

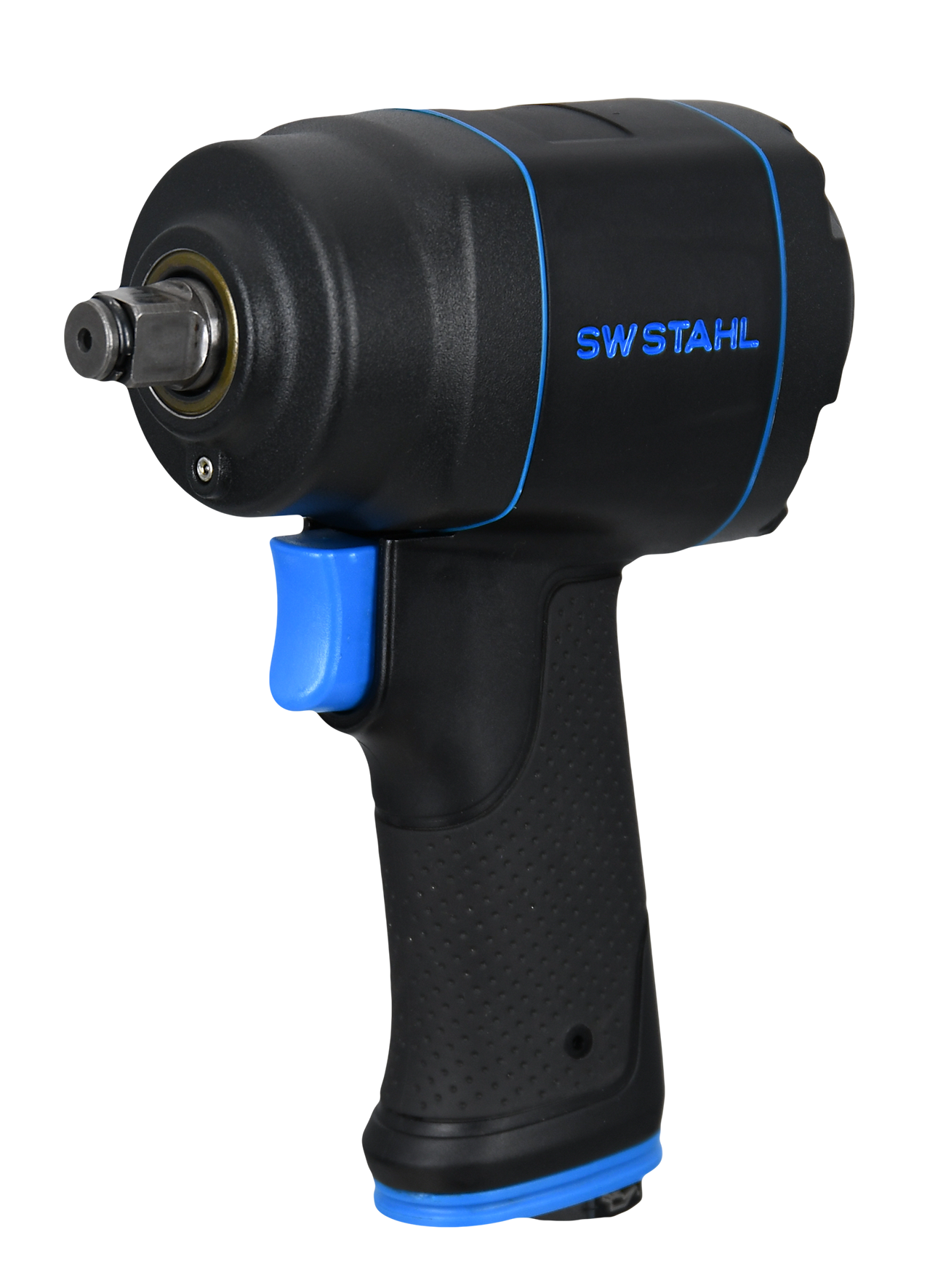

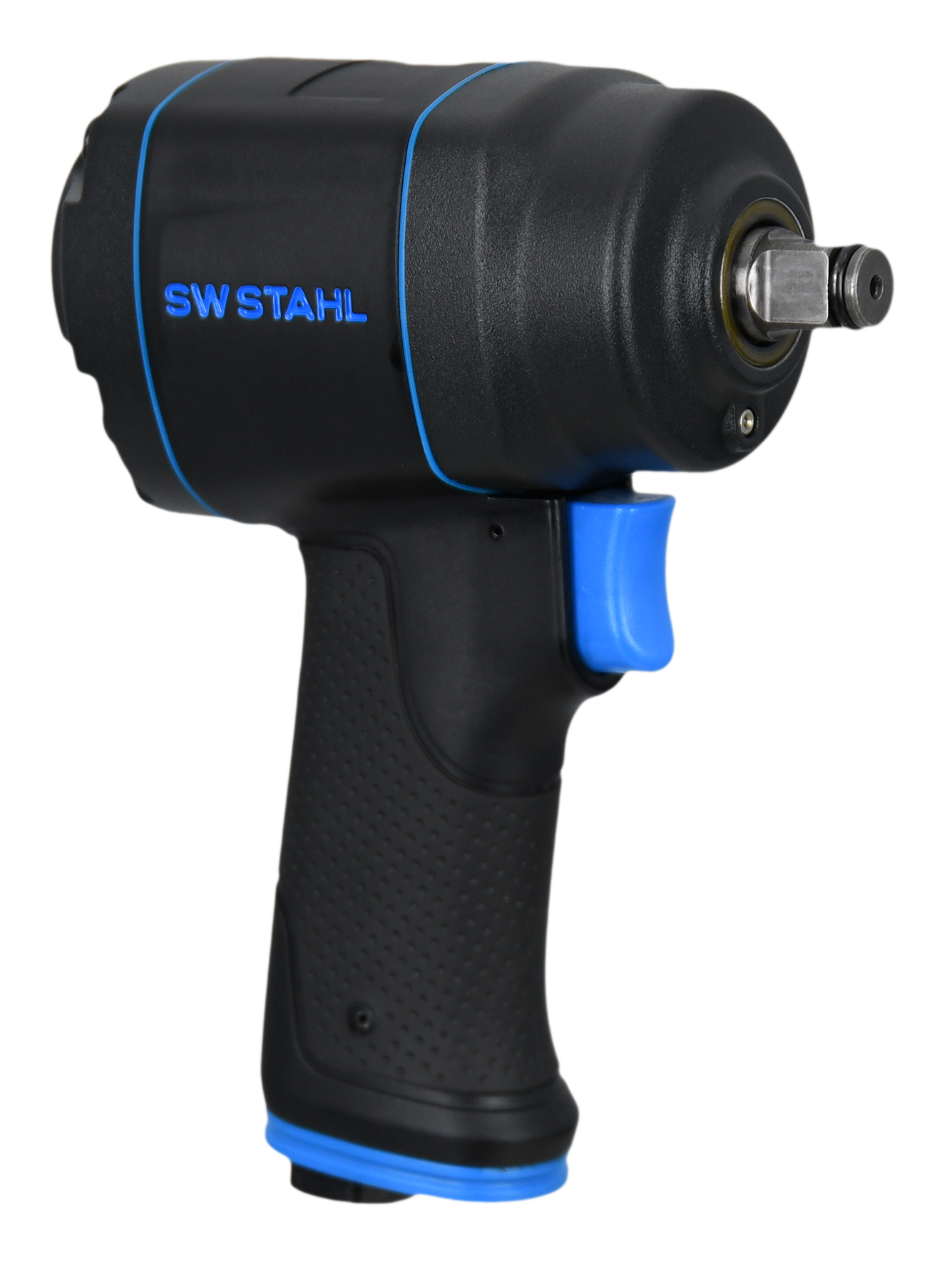

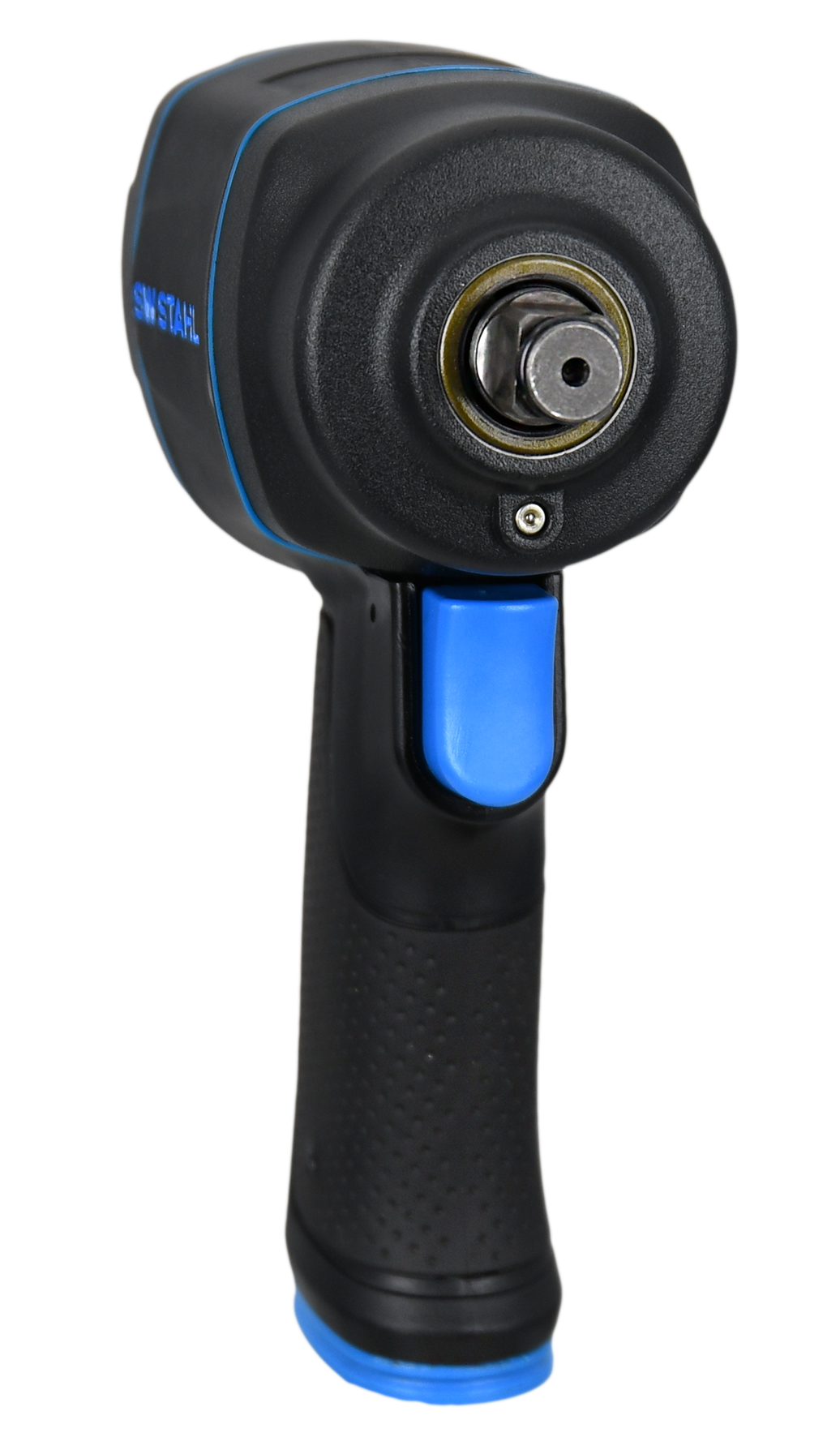

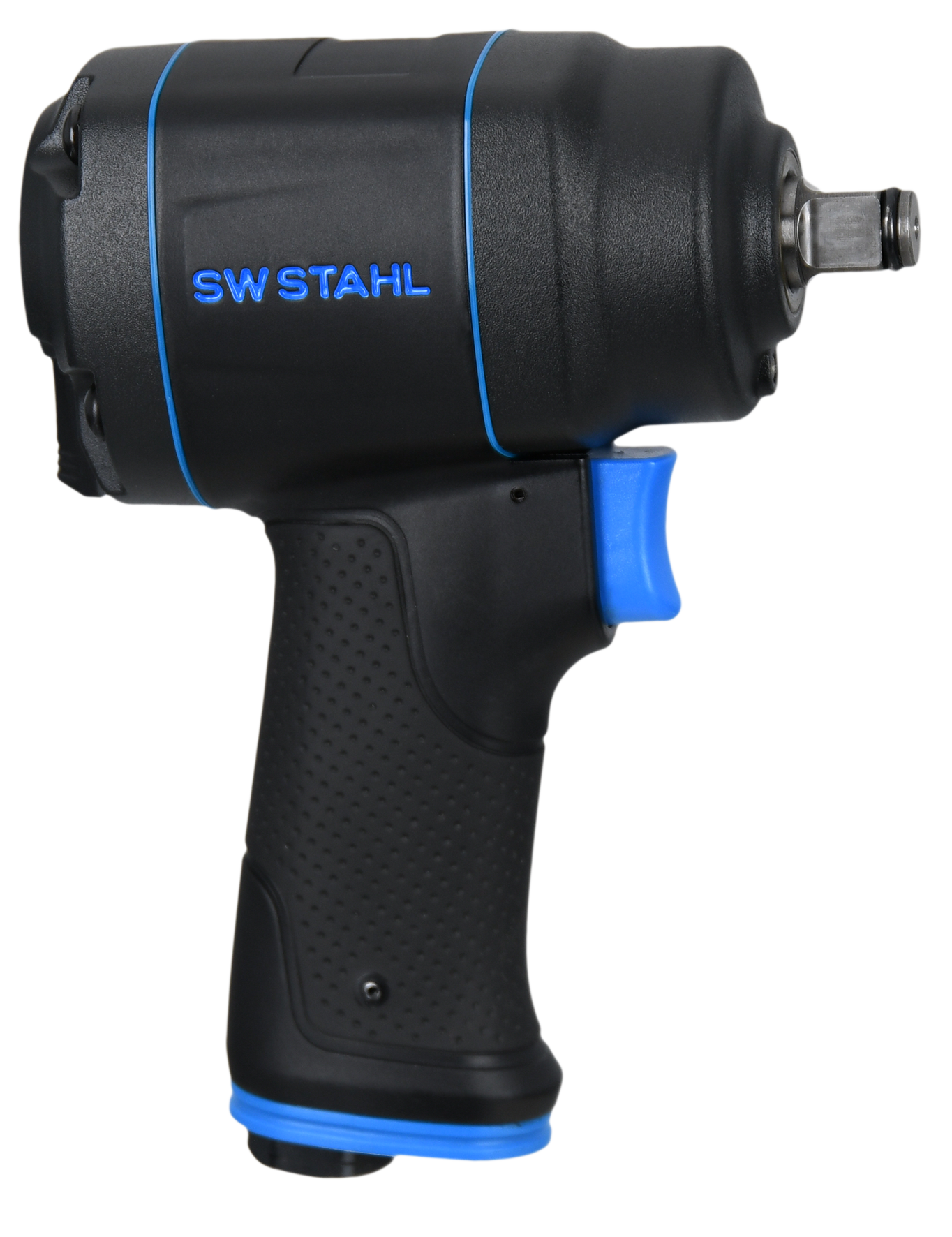

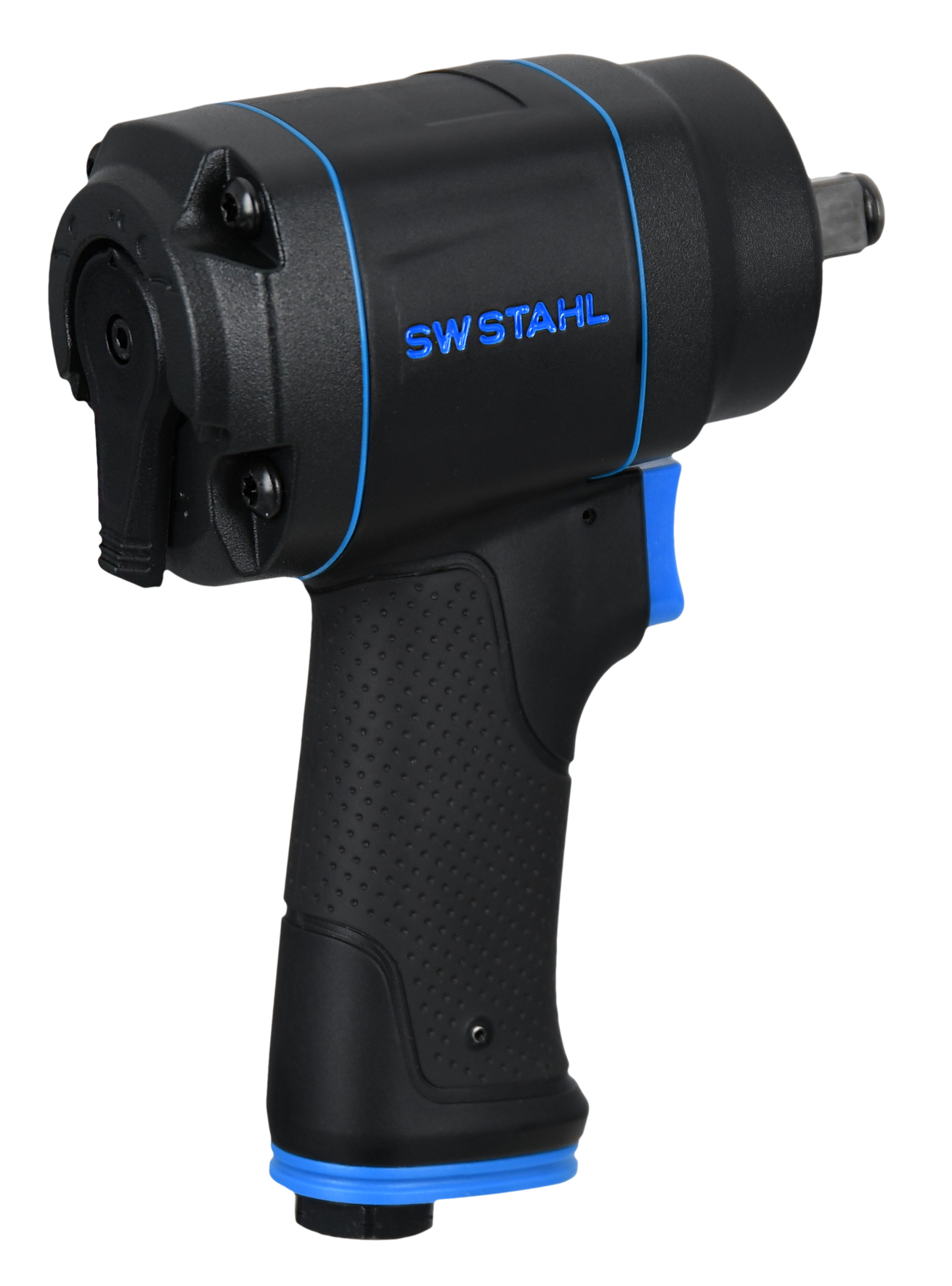

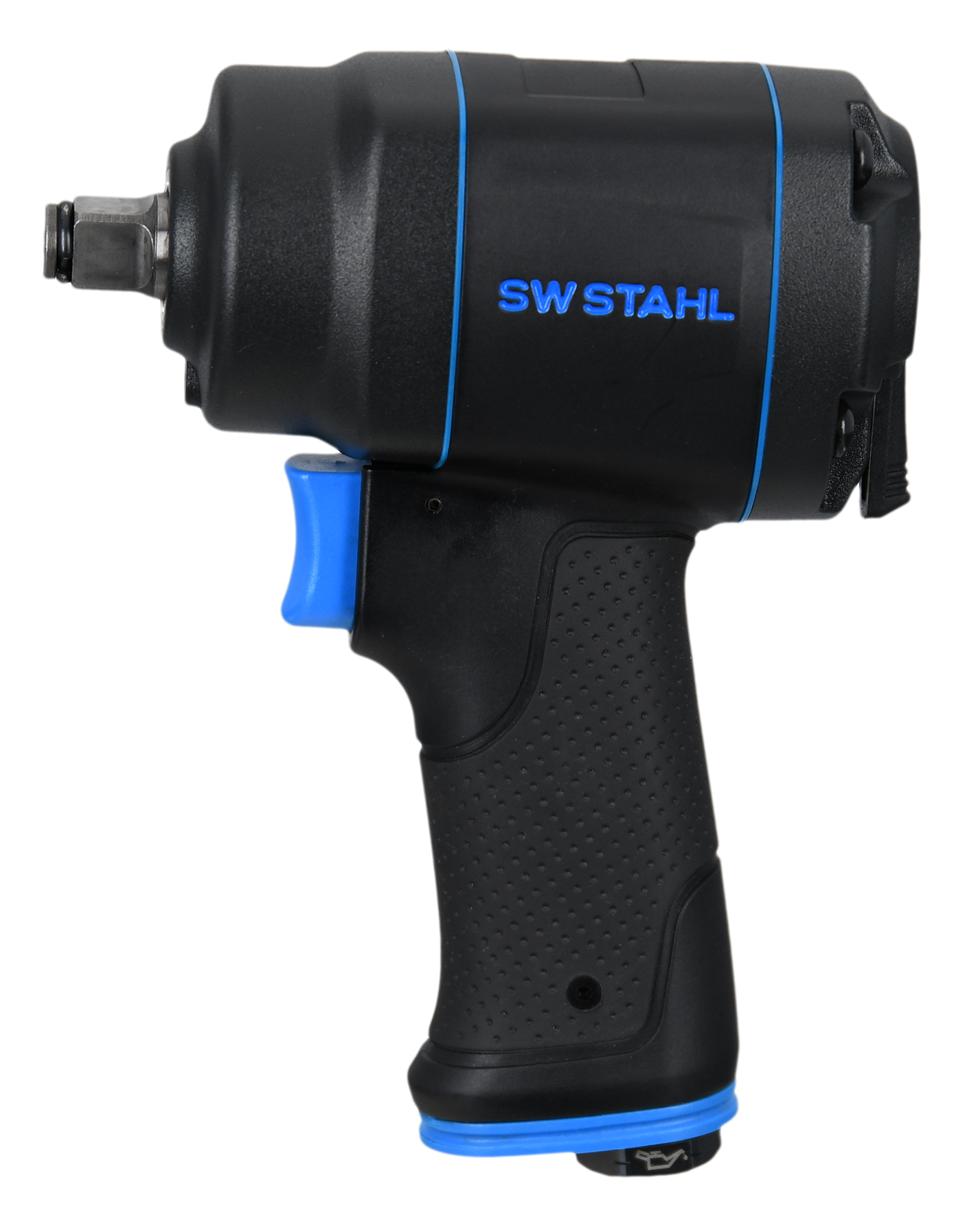

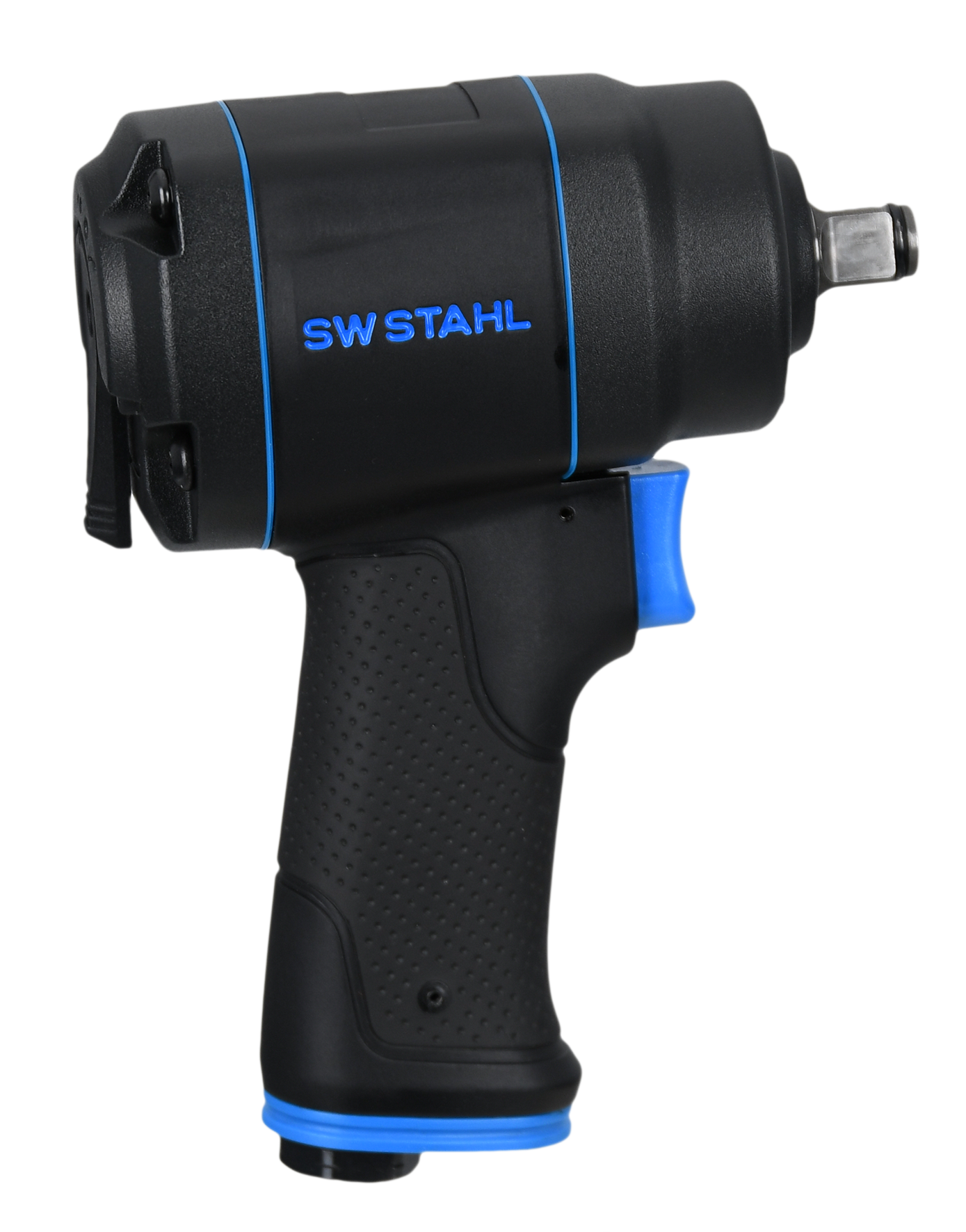

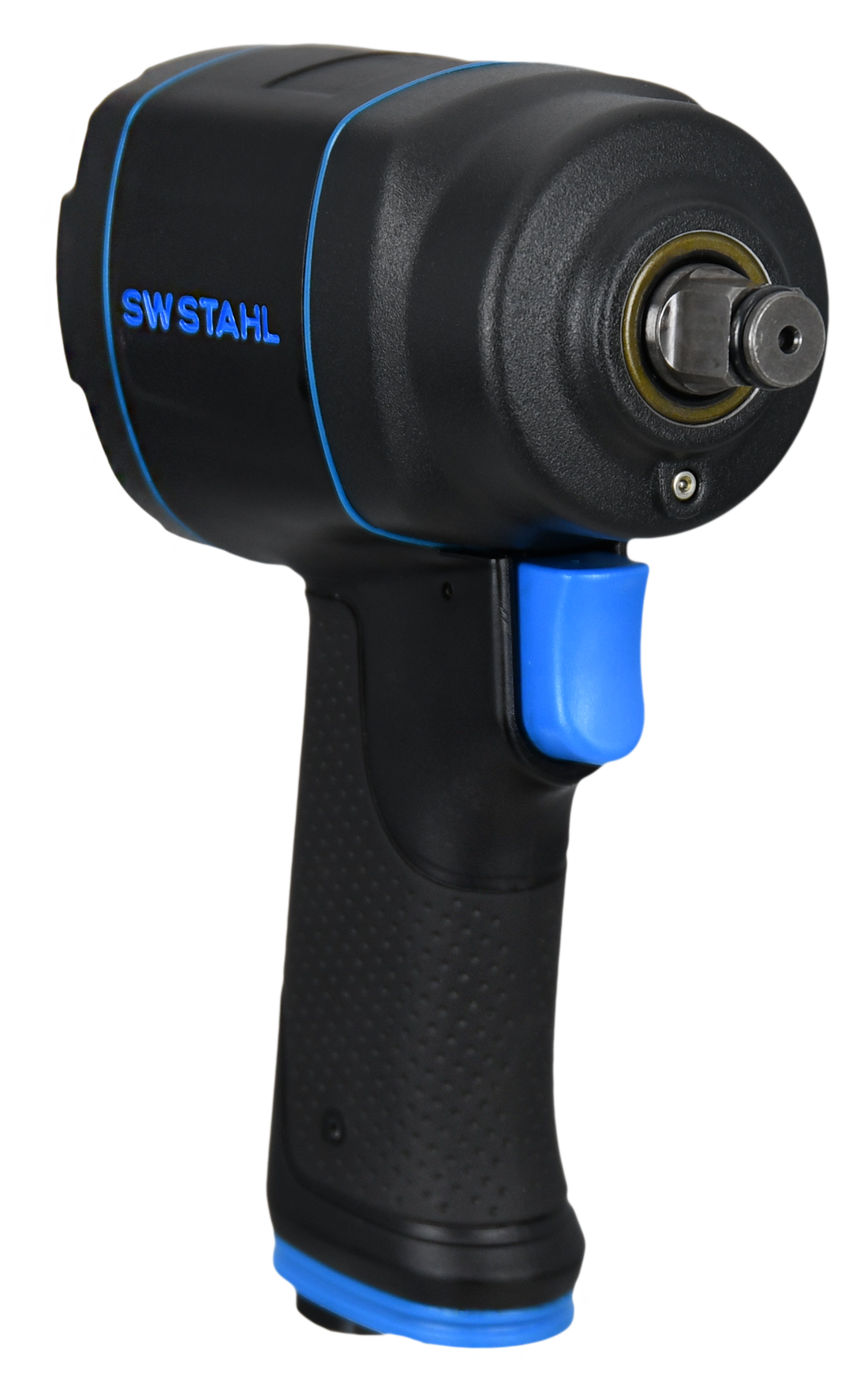

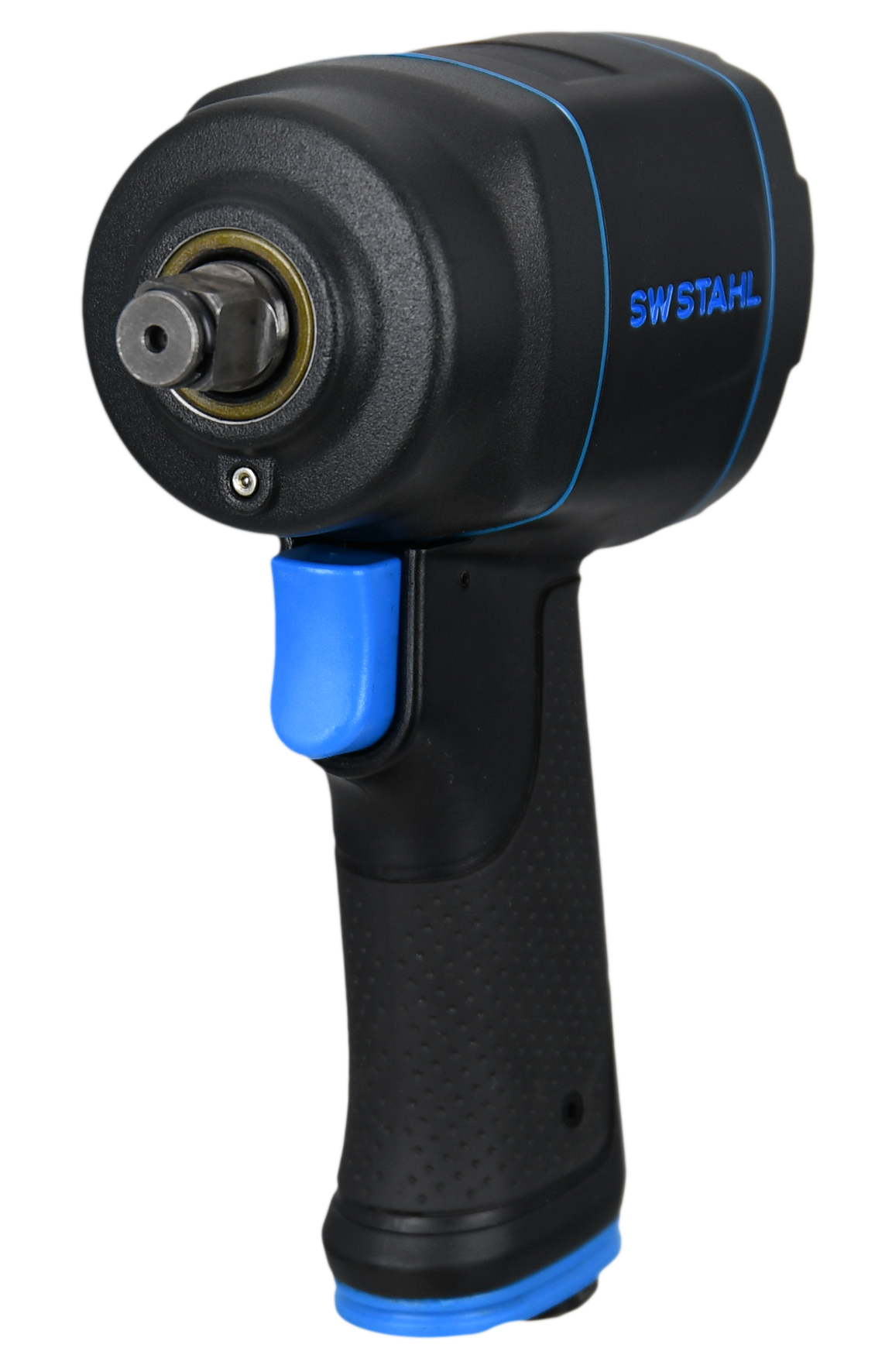

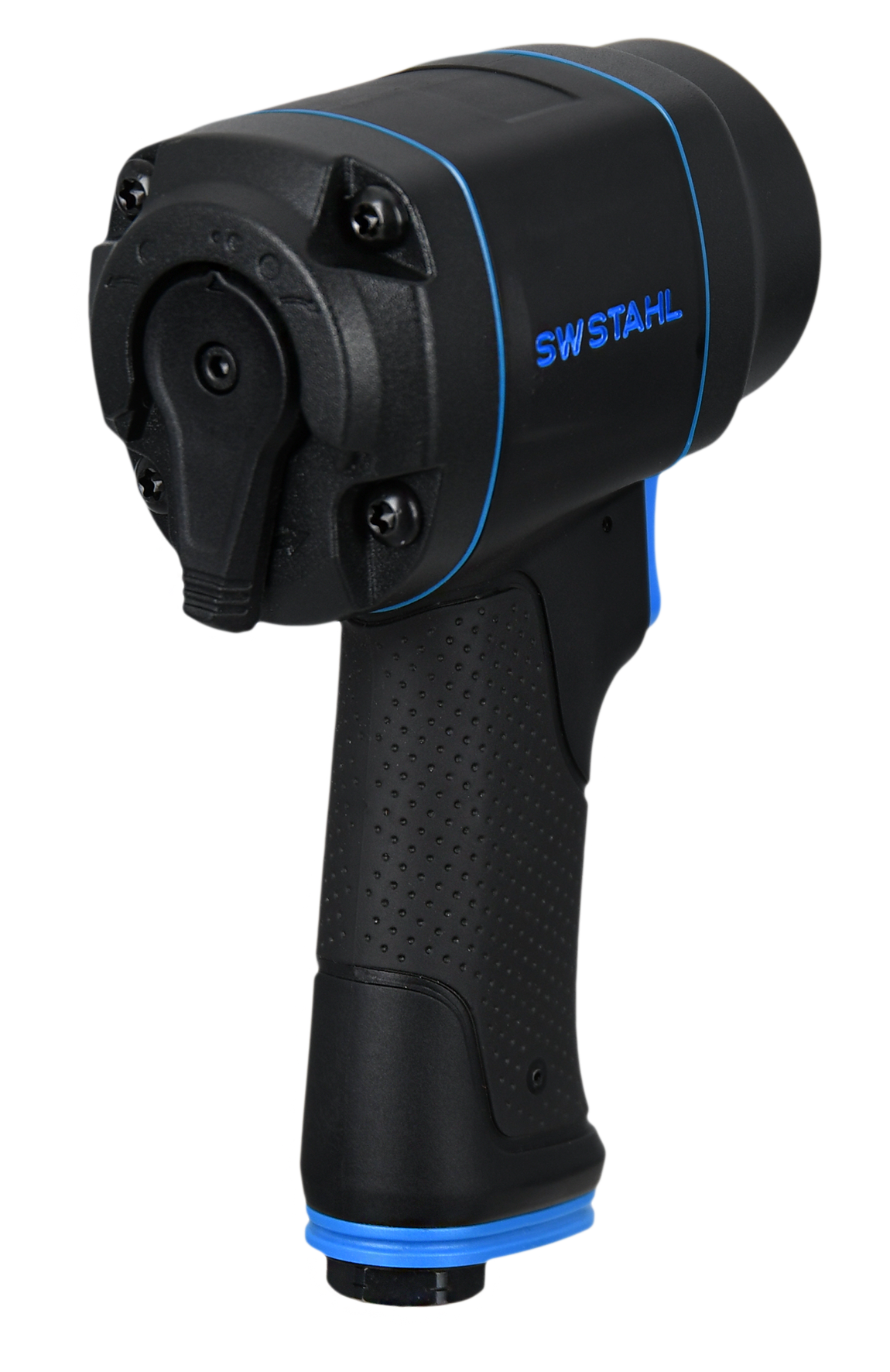

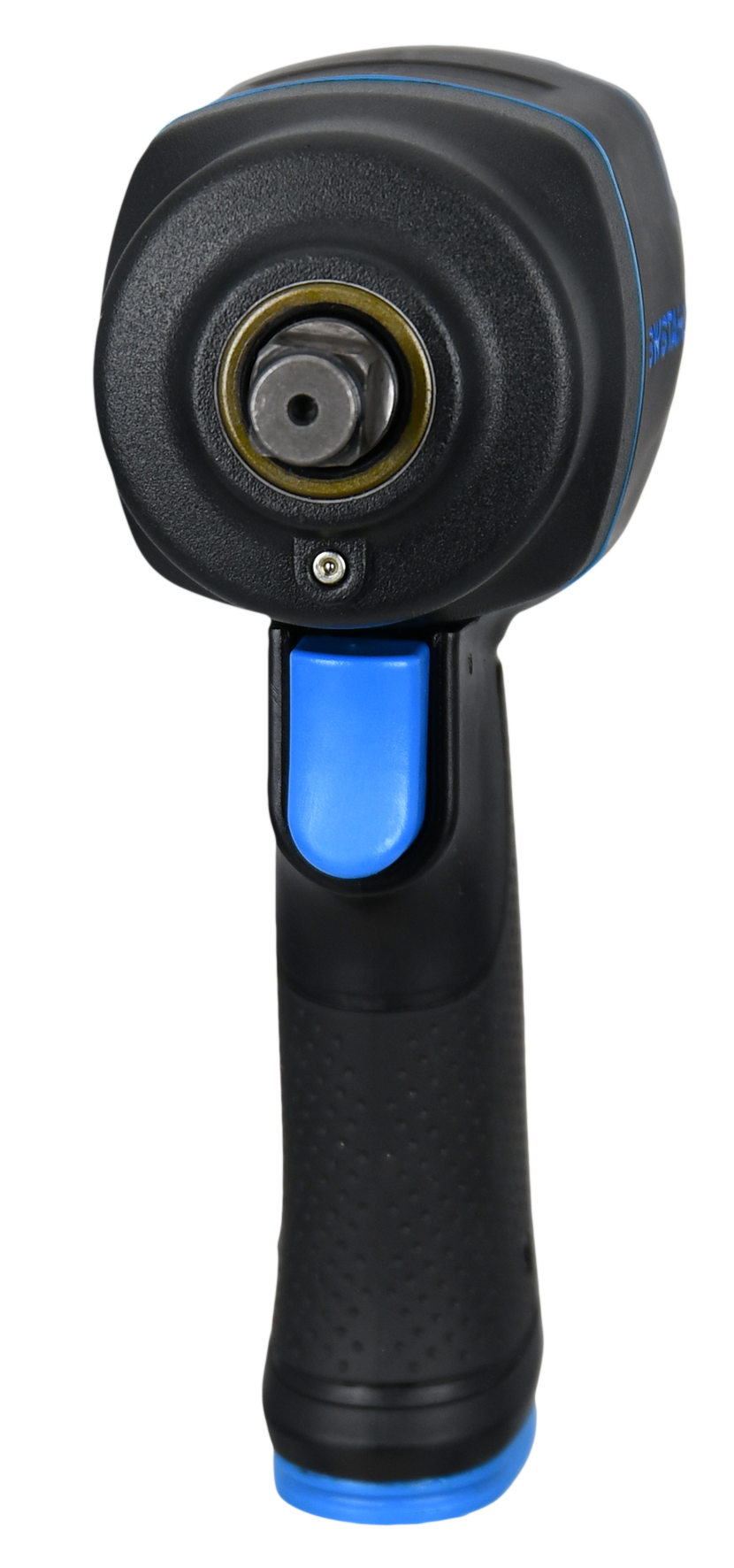

Pneumatic IMPACT wrench, 1/2", 1.300 Nm, 118 mm

Designed in Germany


Item no.: S3465
EAN: 4033592148870

extra short

Information about the product

Description

12.5 mm (1/2”) drive

  • Extra short: 118 mm
  • High performance twin hammer mechanism
  • Threefold torque selection
  • Max. torque 3rd speed: 750 Nm
  • Max. release torque: 1.300 Nm
  • Fatigue-proof work due to low net weight (1.300 g)
  • Single handed switching for clockwise/anticlockwise running
  • Very low vibration
  • Ergonomic 2-component (TPR+Nylon) handle with special non-slip texture
  • 1/4” inlet nipple included
  • "Designed in Germany"

Technical data

Abtriebs-Vierkant [mm] 12,5 (1/2")
Torque [Nm] 750
Overall Height [mm] 118
Release Torque [Nm] 1300
Operating pressure to [bar] 6.30000
Service Speed [1/min] 10000
Thread Size, compressed air connection 1/4"
Luftverbrauch [l/m] 170
Noise Level [dB] 94.00000
Sound Power Level [dB] 105.00000
Vibration Acceleration [m/s²] 8.12000
Weight [kg] 1.30000

More images

Detailed images

Application images

Spare and wear parts

Item no. variant Name
S3246-1 - Retaining ring for all, 1/2”
