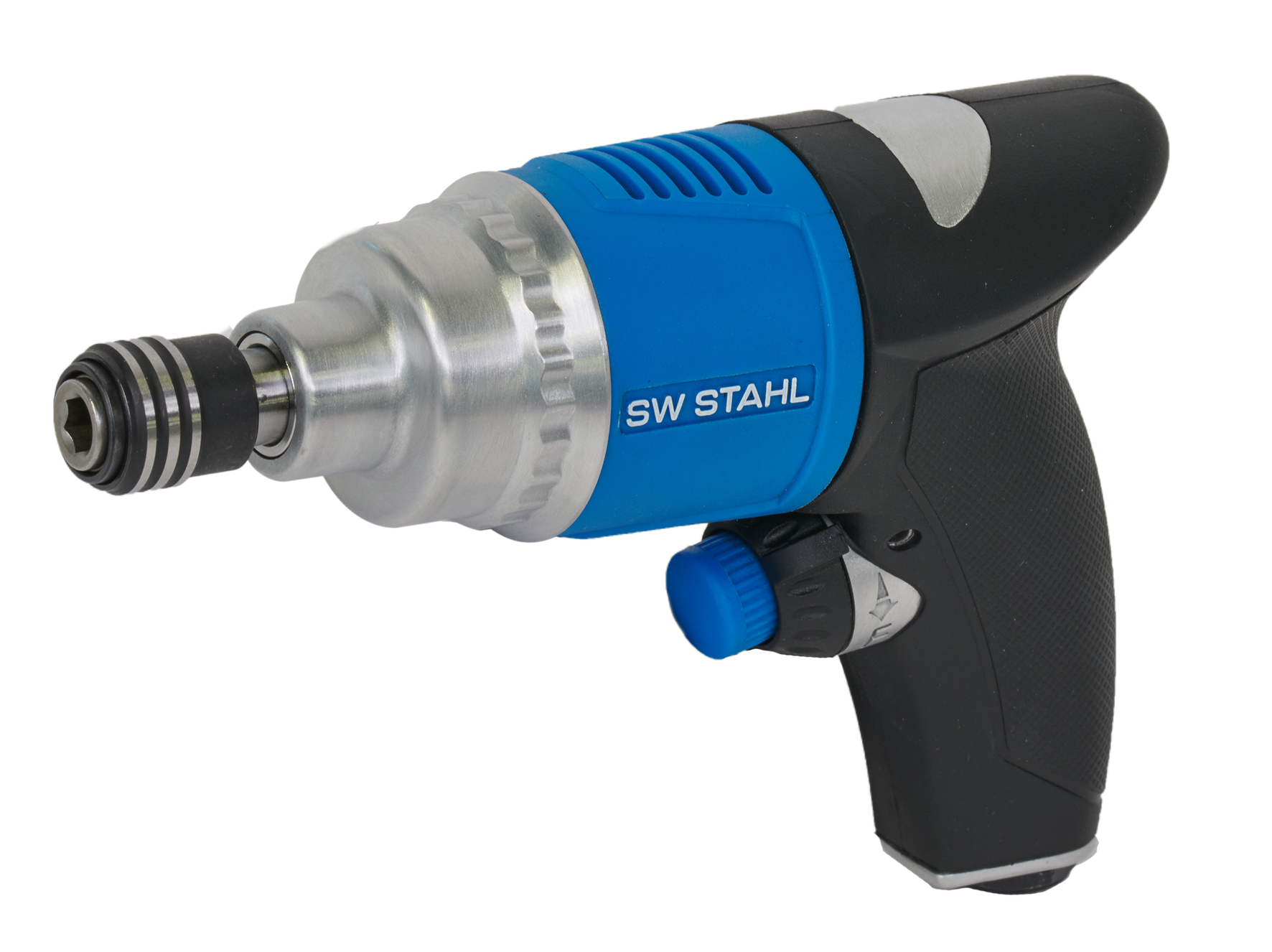

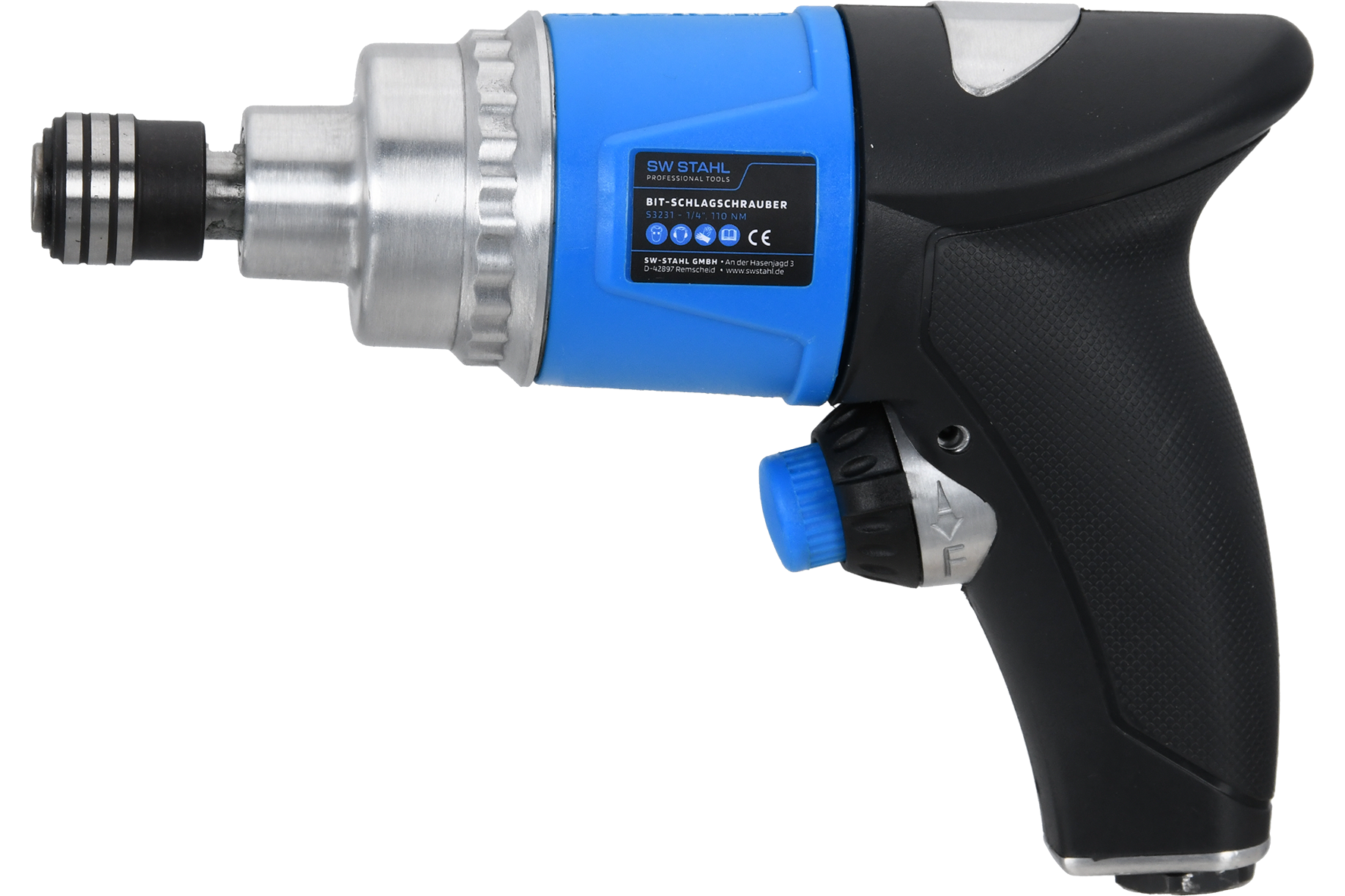

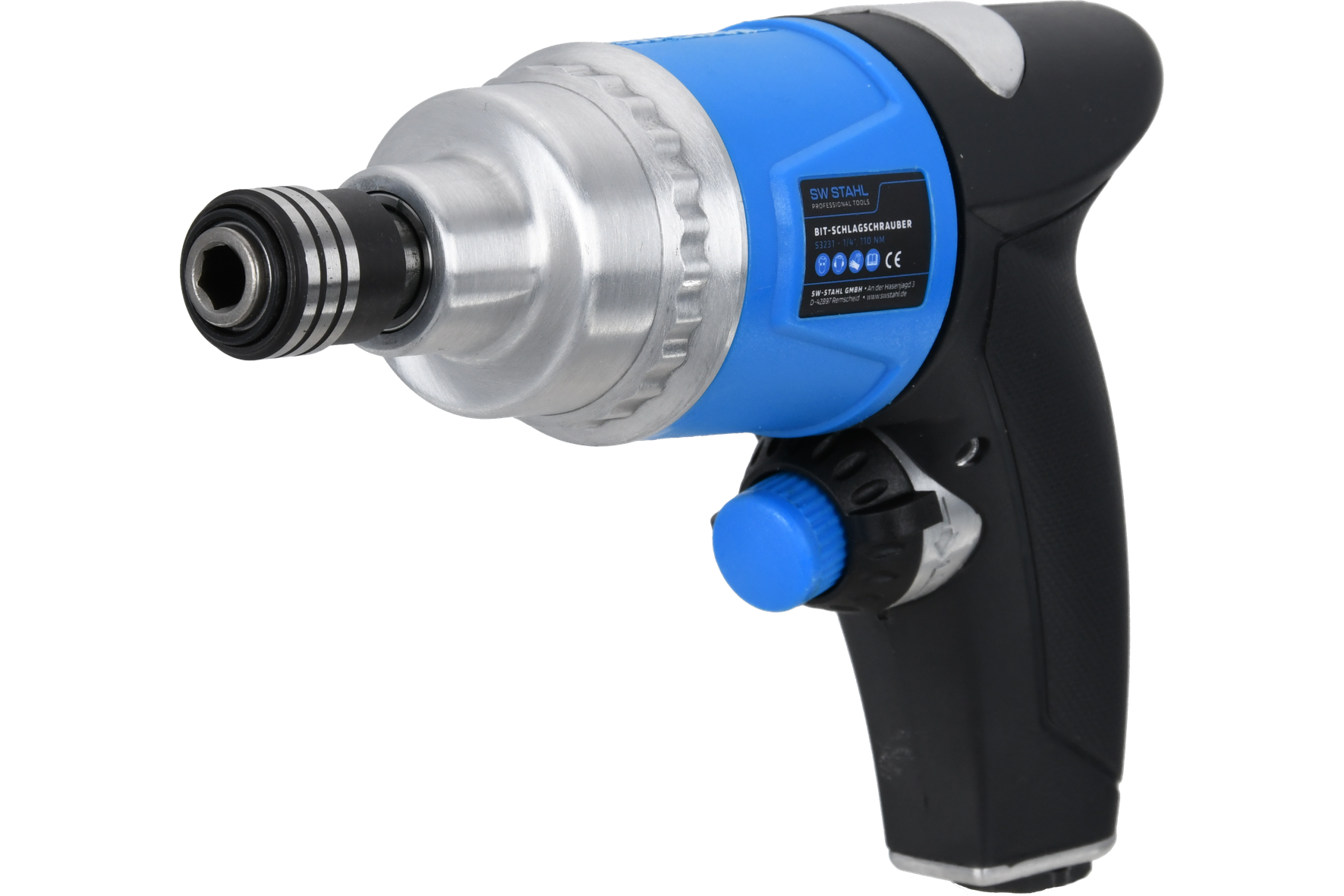

Pneumatic bit IMPACT wrench, 1/4", 110 Nm


Item no.: S3231
EAN: 4033592140478


Information about the product

Description

  • With 110 Nm loosening torque
  • Hexagon drive: 6.3 mm (¼")
  • Maximum speed: 13,000 rpm.
  • For fast work in confined spaces
  • One-handed operation due to the compact design
  • Change of direction without changing hands
  • Closed head prevents chips from entering
  • Includes 6,3 mm (1/4") inlet nipple
  • Length: 140 mm
  • Weight: 0.74 kg

Technical data

Abtriebs-Sechskant [mm] 6,3 (1/4")
Drehmoment Max. [Nm] 110
Baulänge [mm] 140
Geräuschpegel [db(A)] 92
Operating Mode Pneumatic
Quality Premium
Service Speed [1/min] 13000
Luftverbrauch [l/m] 73,6
Weight [kg] 0,74
Operating Pressure [bar] 6,3
Thread Size, compressed air connection 1/4
Length [mm] 160
Width [mm] 110
Height [mm] 50

More images

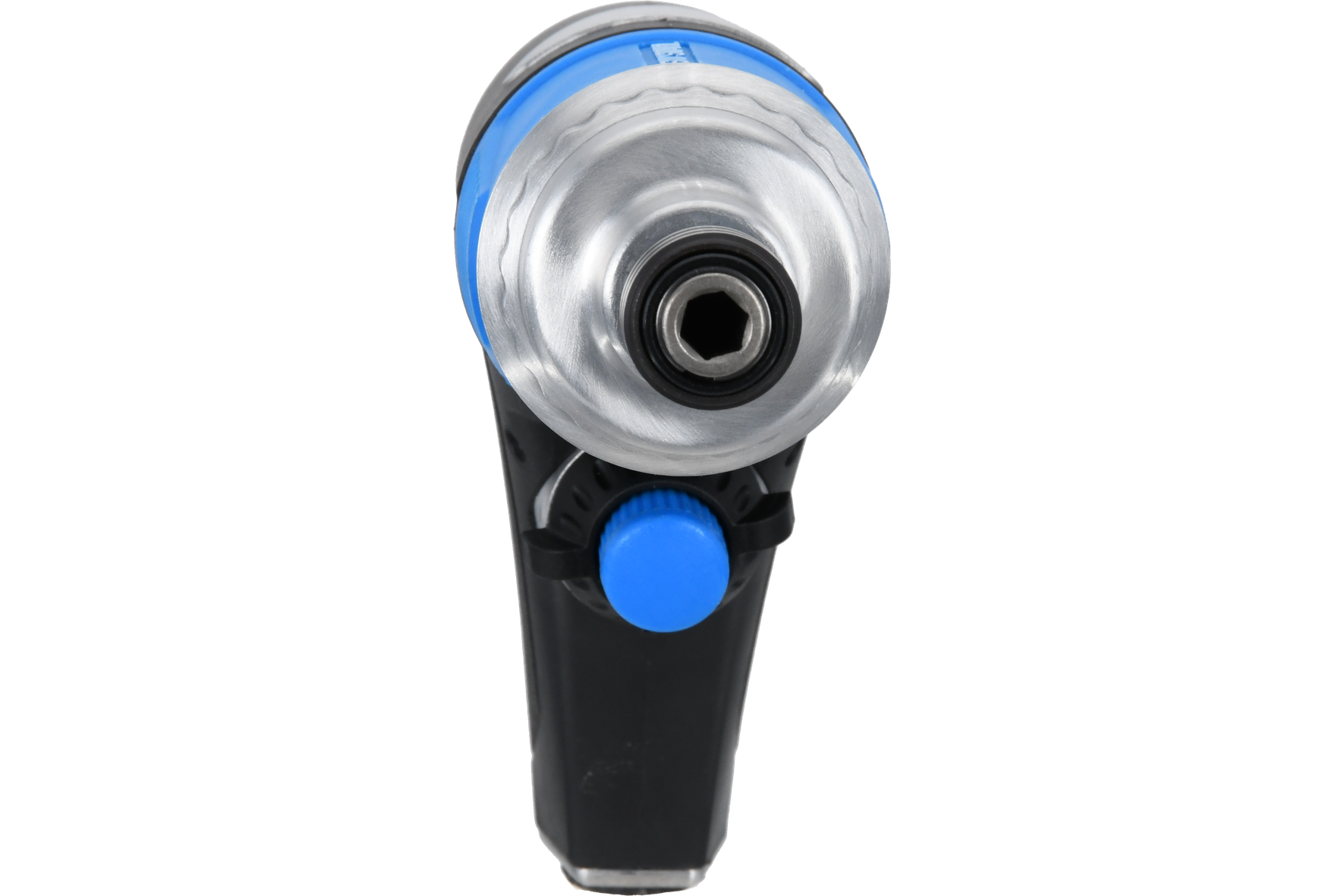

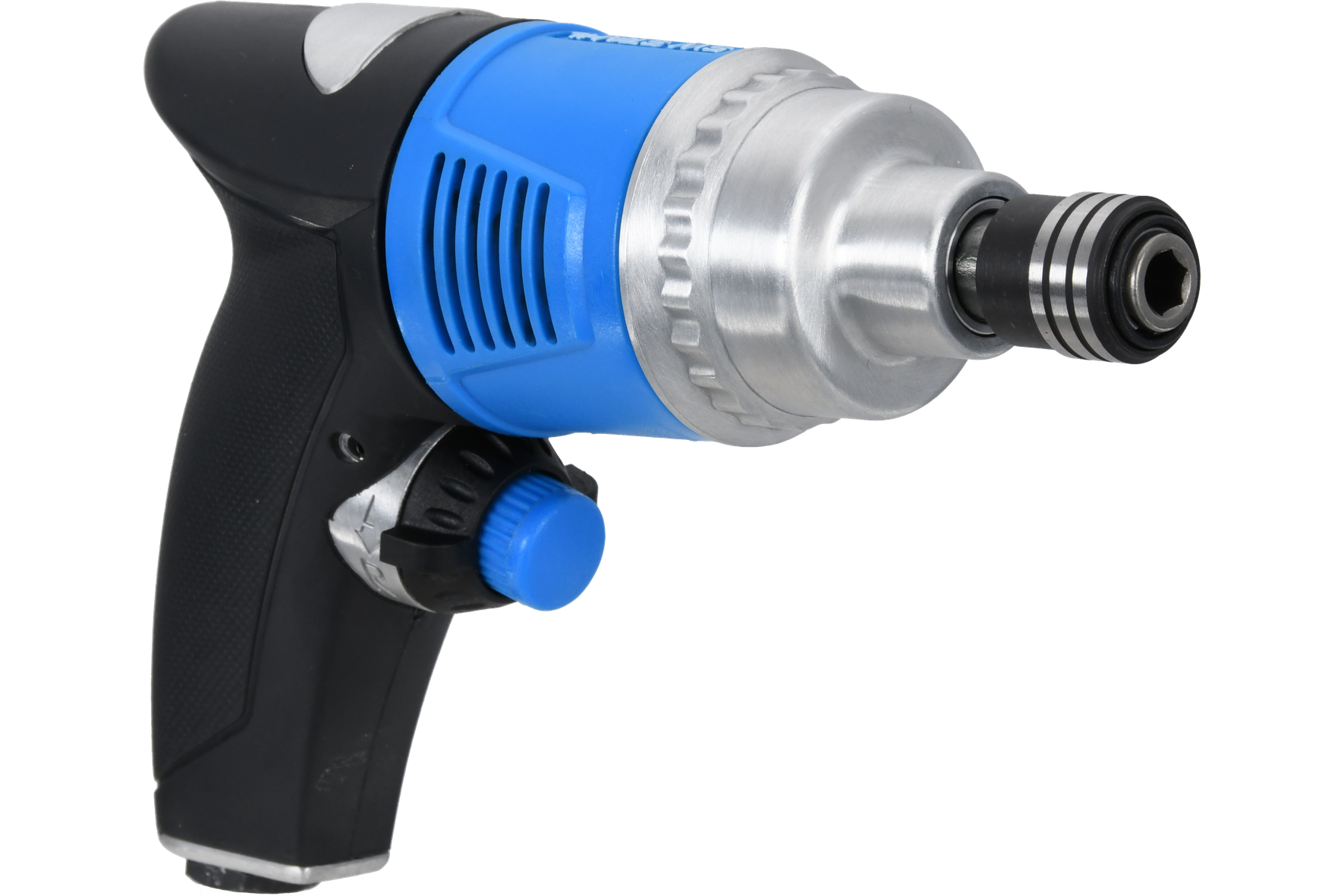

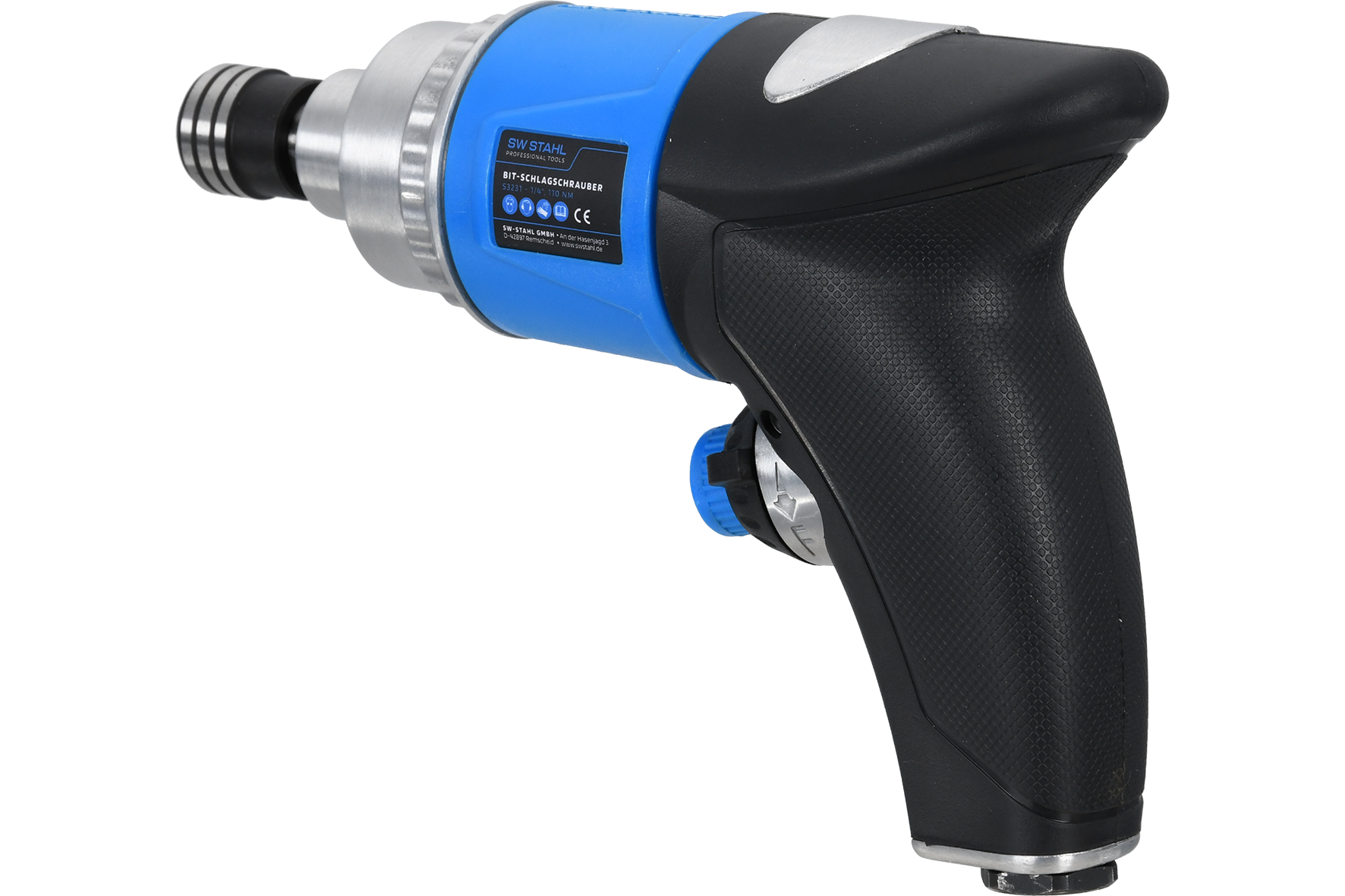

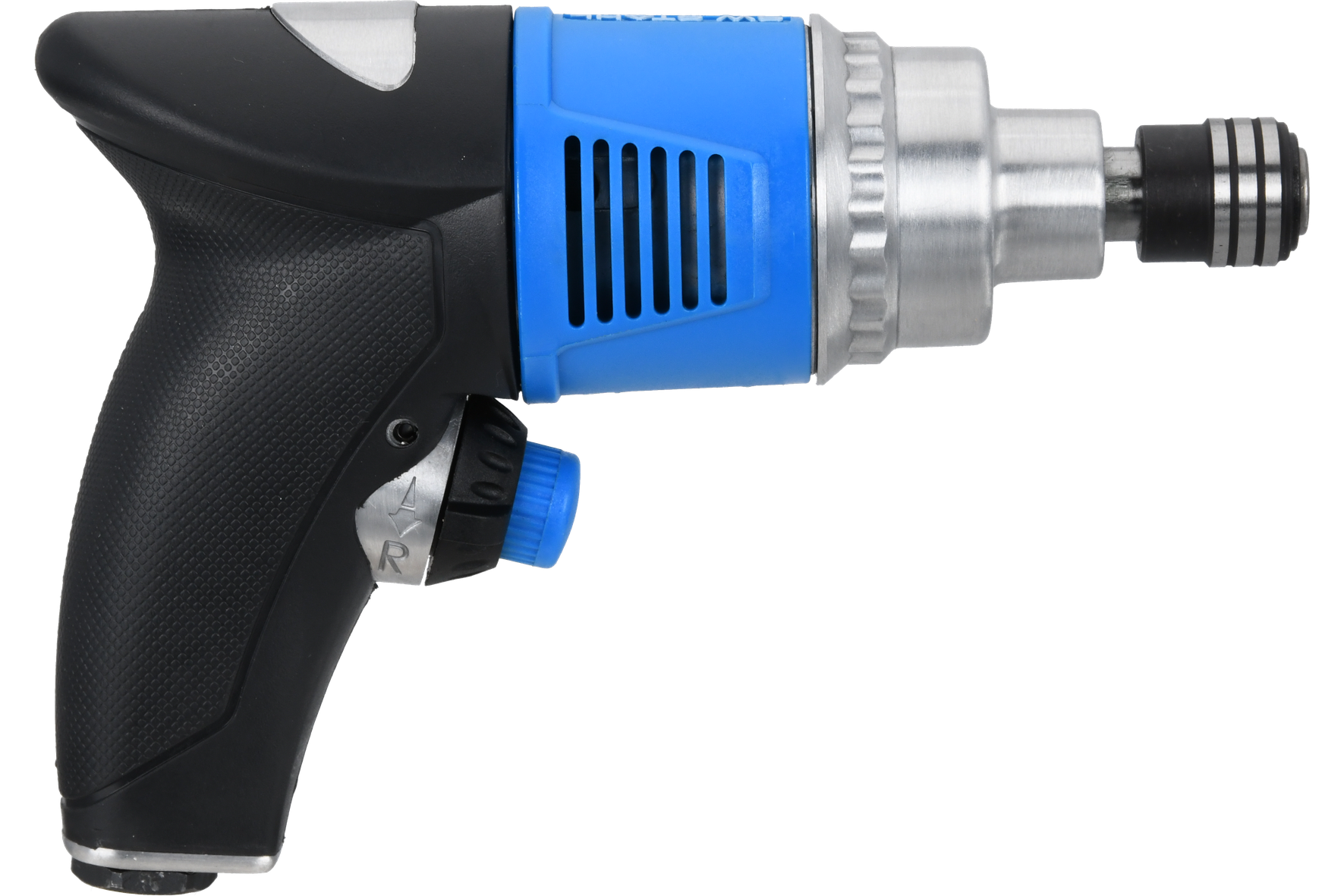

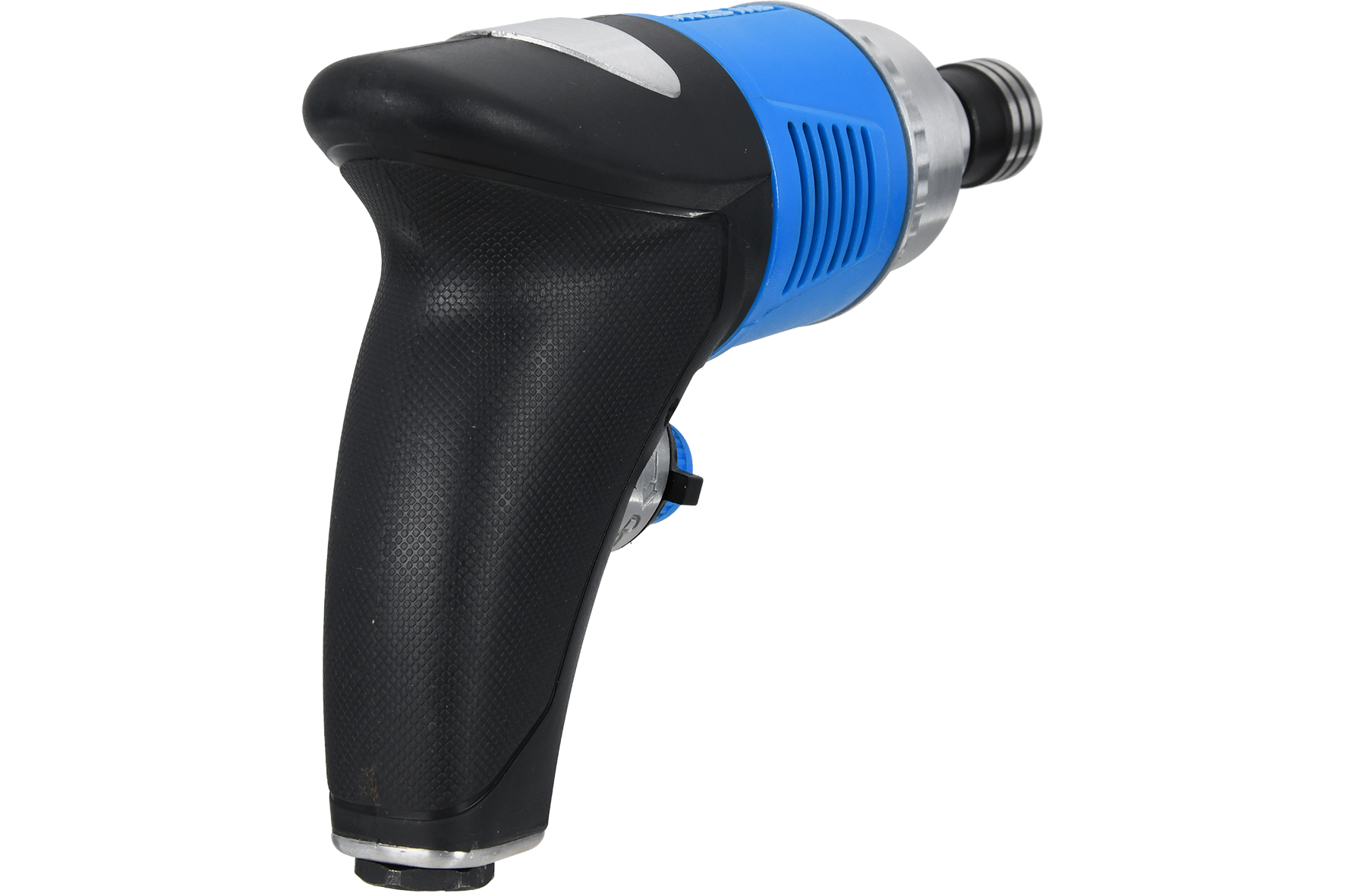

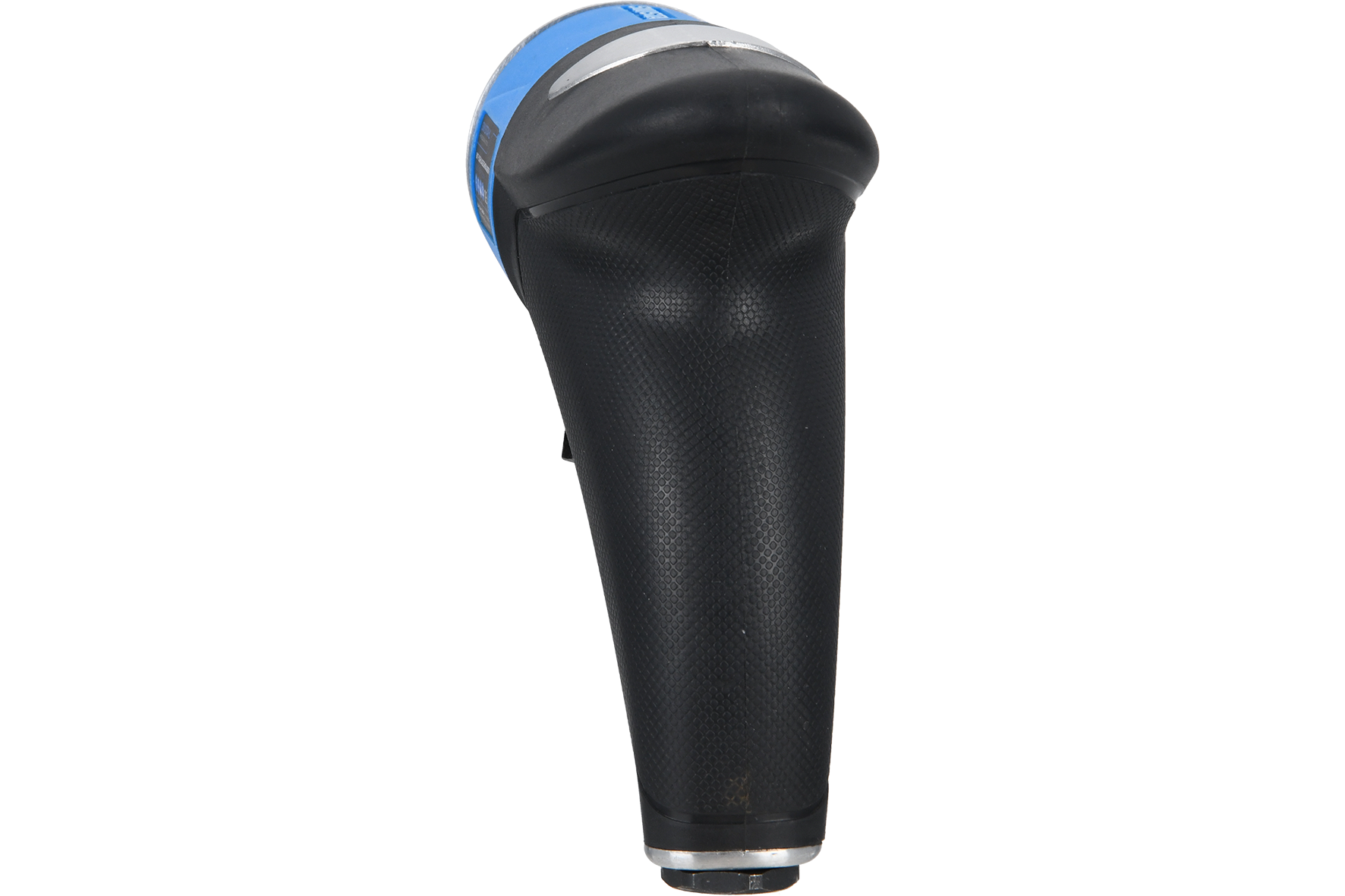

Detailed images

Application images

Spare and wear parts

Item no. variant Name
S3231-1 - Locking repair set for S3231, 5-piece
S3231-2 - Engine repair kit for S3231, 13-piece
