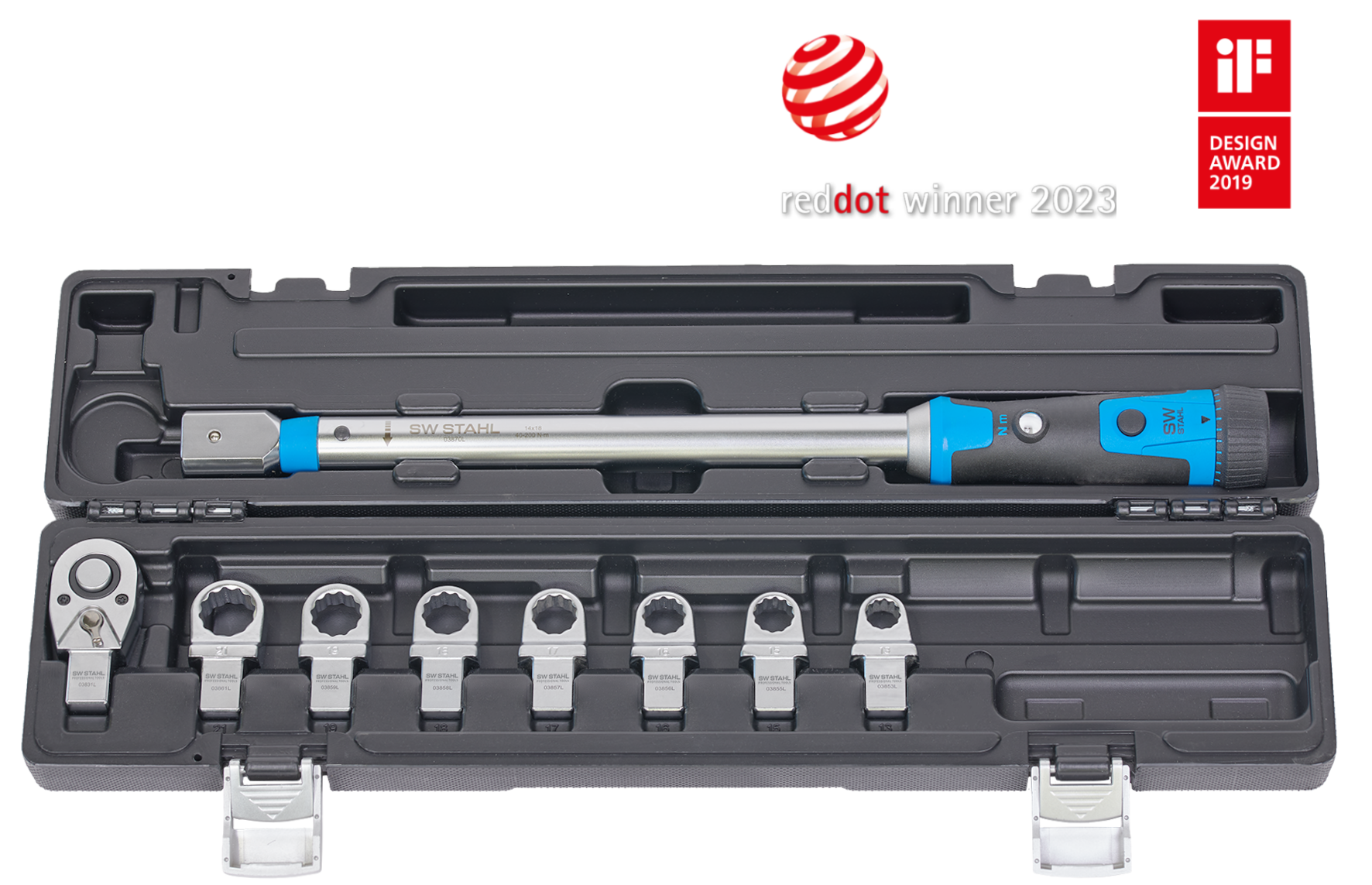

Professional torque wrench with ring wrench inserts and reversible ratchet insert, 40-200 Nm, 9-piece

Reversible ratchet insert 1/2", ring wrench inserts 13-15-16-17-18-19-21 mm


Item no.: 03880L
EAN: 4033592138642

Information about the product

Description

  • Calibrated torque wrench with calibration certificate and serial number
  • Accuracy of ± 4%
  • 14 x 18 mm plug-in connection for plug-in tools
  • Insert tools can be replaced in seconds
  • Direct numerical display of the desired torque value
  • Secure locking of the rotary handle with a push button
  • Ergonomically designed handle
  • Easy to service because the repair kit is available
  • Wide range of optionally available insert tools
  • In a practical storage case made of plastic

Content:

  • Professional torque wrench with square insert, 14x18 mm, 40-200 Nm
  • Reversible ratchet insert 12,5 mm (1/2")
  • Ring wrench inserts with sizes 13, 15, 16, 17, 18, 19, 21 mm

Technical data

Number of tools 9
Square Insertion Tang Size 14x18
Torque from [Nm] 40
Torque to [Nm] 200
Screwing Tools characteristics Right tightening
Supplementary Article/Info 2 with certificate and test log
Tripping accuracy ± [%] 4
Spanner Size 13
Spanner Size 15
Spanner Size 16
Spanner Size 17
Spanner Size 18
Spanner Size 19
Spanner Size 21
Length [mm] 550
Width [mm] 120
Height [mm] 65

More images

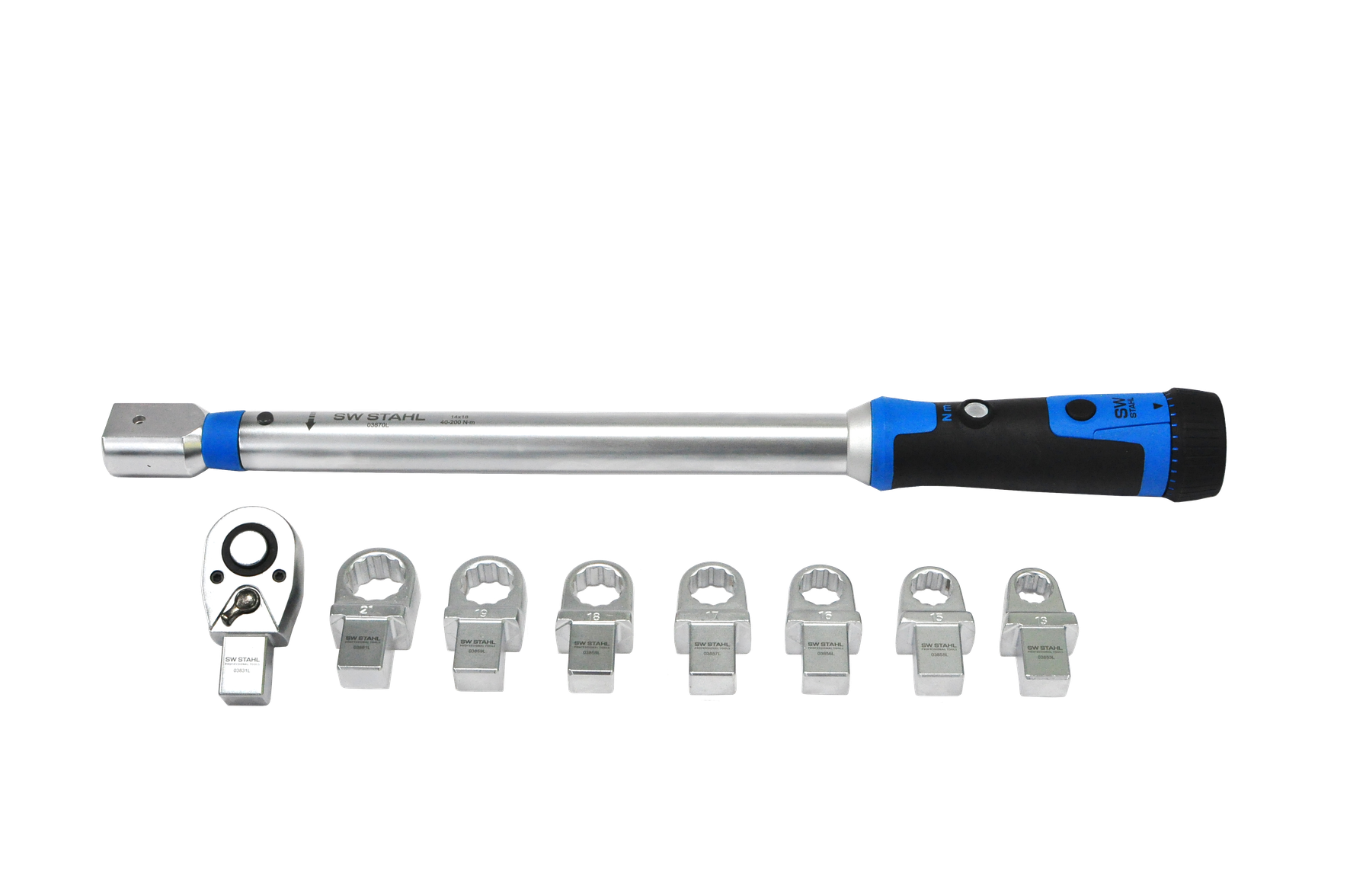

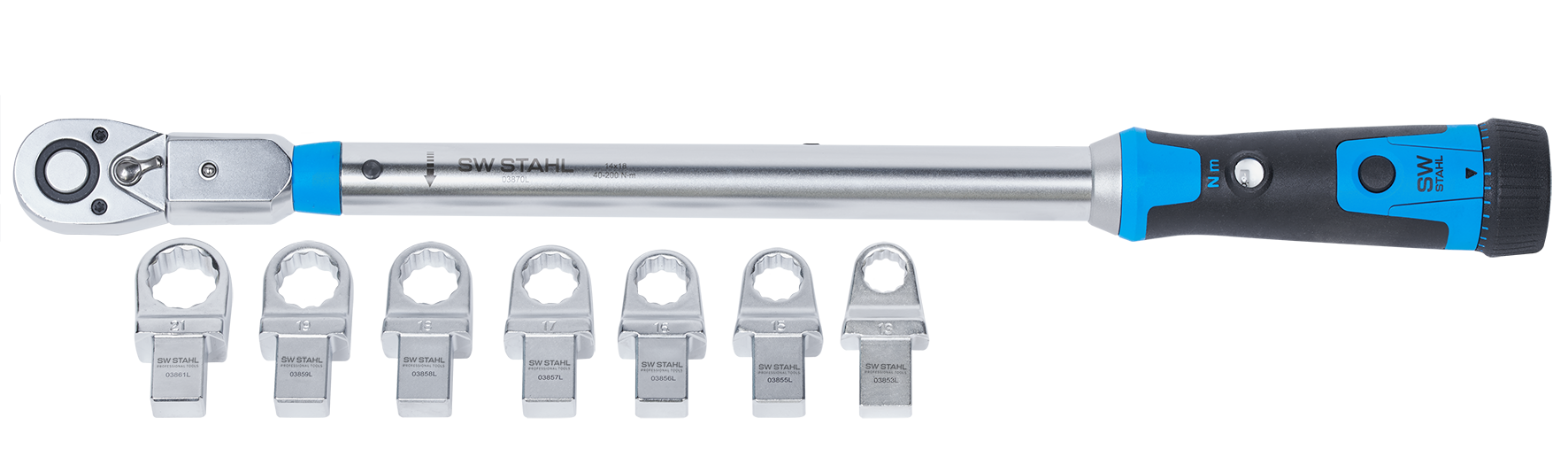

Detailed images

Application images

Scope of delivery

Item no. variant Name Quantity
03870L - Professional torque wrench, with square insert, 40-200 Nm 1
03853L - Ring wrench insert, 13 mm 1
03855L - Ring wrench insert, 15 mm 1
03856L - Ring wrench insert, 16 mm 1
03857L - Ring wrench insert, 17 mm 1
03858L - Ring wrench insert, 18 mm 1
03859L - Ring wrench insert, 19 mm 1
03861L - Ring wrench insert, 21 mm 1
03831L - Reversible ratchet insert, 1/2" 1

Accessories

Item no. variant Name
03832L - Square drive insert, socket 14x18 mm, drive 1/2"
03833L - Open-ended spanner insert, 13 mm
03834L - Open-ended spanner insert, 14 mm
03835L - Open-ended spanner insert, 15 mm
03836L - Open-ended spanner insert, 16 mm
03837L - Open-ended spanner insert, 17 mm
03838L - Open-ended spanner insert, 18 mm
03839L - Open-ended spanner insert, 19 mm
03841L - Open-ended spanner insert, 21 mm
03842L - Open-ended spanner insert, 22 mm
03844L - Open-ended spanner insert, 24 mm
03847L - Open-ended spanner insert, 27 mm
03854L - Ring wrench insert, 14 mm
03862L - Ring wrench insert, 22 mm
03864L - Ring wrench insert, 24 mm
03867L - Ring wrench insert, 27 mm

Spare and wear parts

Item no. variant Name
03881L - Spare handle for torque wrench
