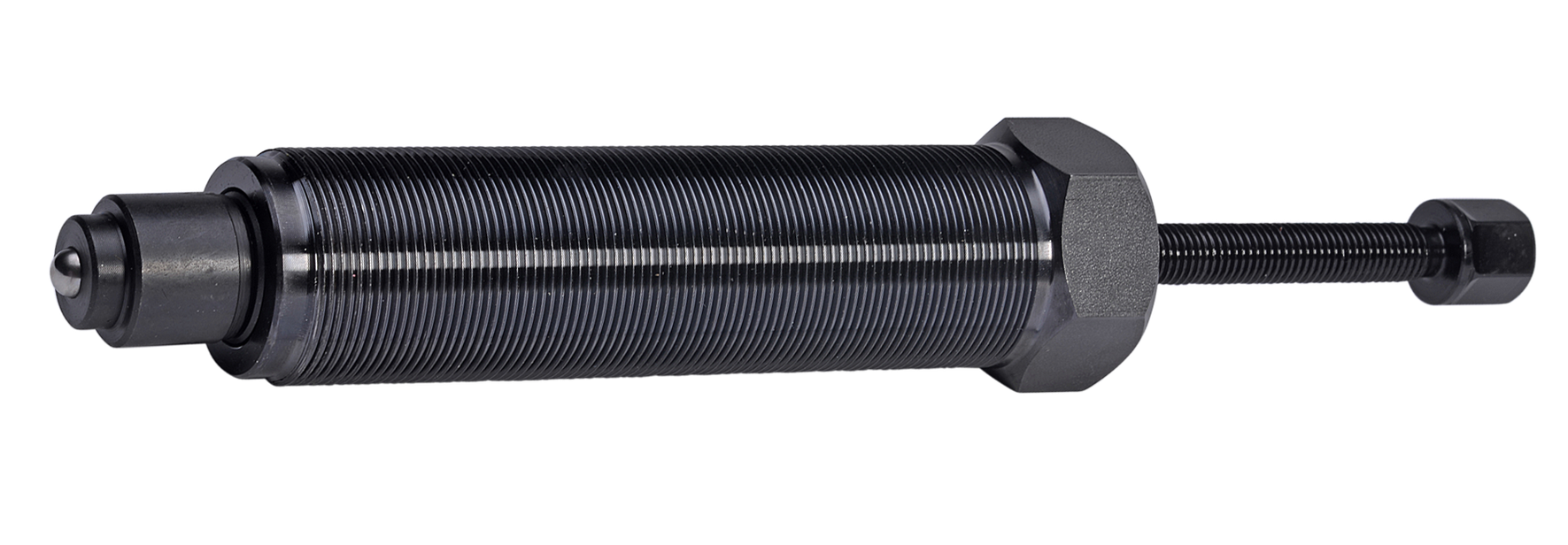

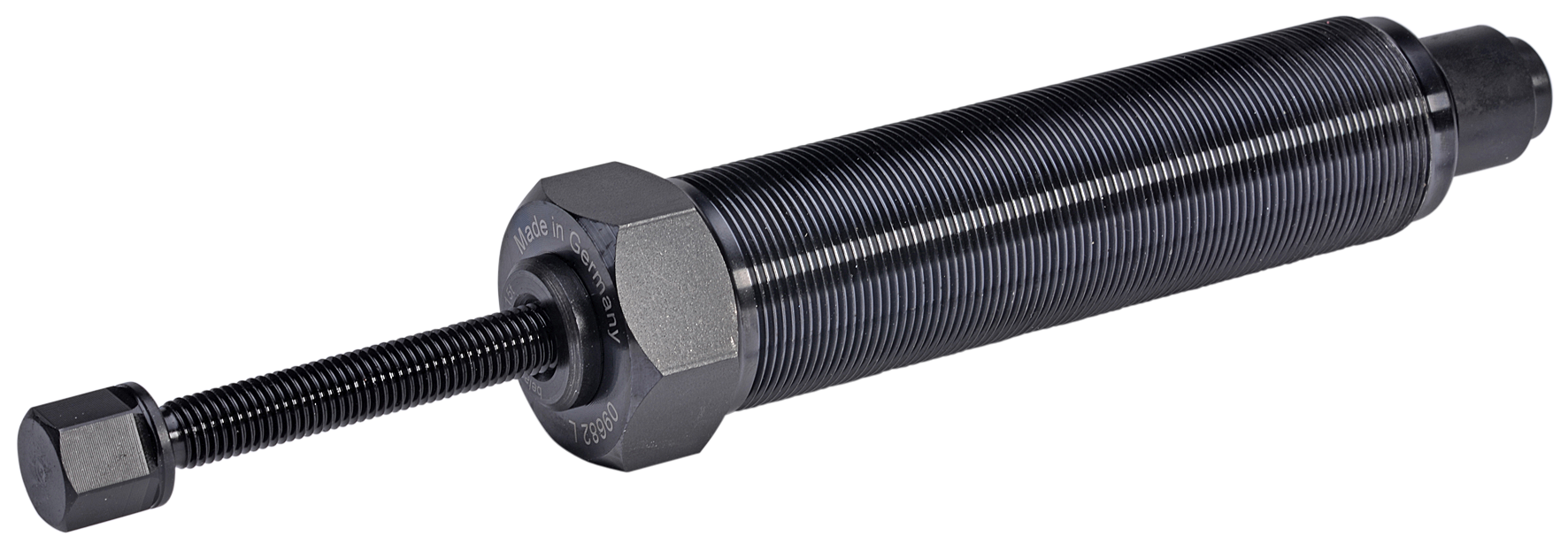

Grease hydraulic spindle, 15 t


Item no.: 09682L
EAN: 4033592136174


Information about the product

Description

In use with external and ball joint pullers particularly suitable for fixed bearings or ball joints in commercial vehicles, agricultural and construction machinery.

  • Pressure force: max. 15 t.
  • Screw-in thread: 1 ½ "- 16 UN
  • Stroke: 10 mm
  • Max. Torque: 60 Nm
  • Spindle extensions on request

Technical data

Connecting thread 1 1/2"
Pressing Force [t] 15
Stroke [mm] 10
Drehmoment Max. [Nm] 60
