Insulated tool set, 50-piece


Item no.: V1000
EAN: 4033592128186

Information about the product

Description

Contains all the important tools that make it possible to work on electric vehicles, live cables or other electrical objects. All components of the tool set are certified according to the standard DIN EN 60900 VDE 0682-201:2013-04 and thus insulated up to 1,000 V AC or 1,500 V DC.

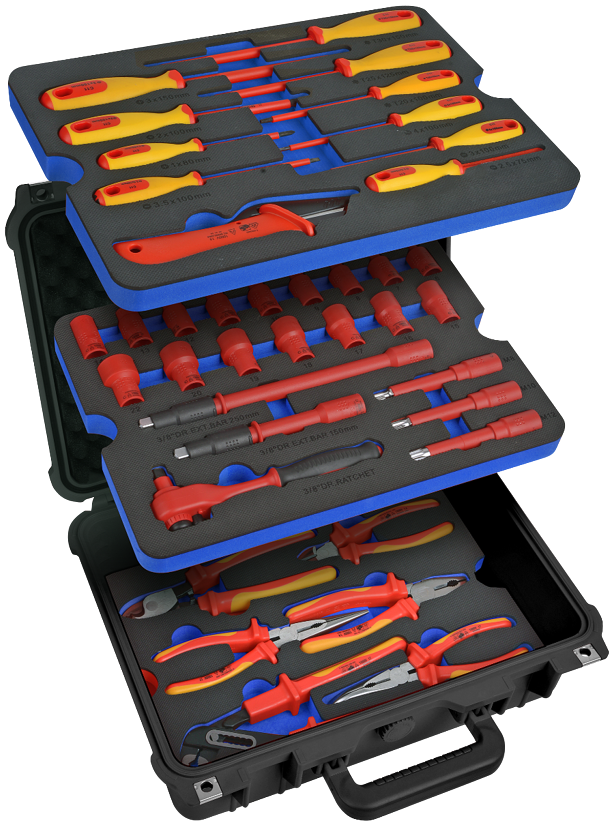

Contents:

  • Insulated screwdrivers in the following sizes: PH1, PH2, PH3, T20, T25, T30, 2.5 - 3 - 3.5 - 4 mm
  • Insulated 10 mm (3/8”) socket spanner bits in the following sizes: 6 - 7 - 8 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 mm
  • Insulated 10 mm (3/8”) screwdriver bits in the following sizes: M8, M10, M12
  • Insulated 10 mm (3/8”) extensions in the following sizes: 150 and 250 mm
  • Stripping knife
  • Insulated water pump pliers, 250 mm
  • Insulated half-round nose pliers, straight, 200 mm
  • Insulated cable shears
  • Insulated combination pliers, 180 mm
  • Insulated half-round nose pliers, bent, 200 mm
  • Insulated power side cutter, 160 mm
  • 10 insulating capes
  • Insulated ratchet, 10 mm (3/8")

Technical data

Currently no technical data is available for this item. In case of questions please contact us.
Please contact us here.

More images

Detailed images

Application images

Scope of delivery

Item no. variant Name Quantity
33100L-2.5 - VDE Screwdriver 2,5 x 75 mm 1
33100L-3.0 - VDE Screwdriver 3,0 x 100 mm 1
33100L-3.5 - VDE Screwdriver 3,5 x 100 mm 1
33100L-4.0 - VDE Screwdriver 4,0 x 100 mm 1
33100L-PH1 - VDE Screwdriver PH1 x 80 mm 1
33100L-PH2 - VDE Screwdriver PH2 x 100 mm 1
33100L-PH3 - VDE Screwdriver PH3 x 150 mm 1
33100L-T20 - VDE Screwdriver T20 x 100 mm 1
33100L-T25 - VDE Screwdriver T25 x 125 mm 1
33100L-T30 - VDE Screwdriver T30 x 150 mm 1
05520L-6 - VDE Socket, 3/8", 6 mm 1
05520L-7 - VDE Socket, 3/8", 7 mm 1
05520L-8 - VDE Socket, 3/8", 8 mm 1
05520L-9 - VDE Socket, 3/8", 9 mm 1
05520L-10 - VDE Socket, 3/8", 10 mm 1
05520L-11 - VDE Socket, 3/8", 11 mm 1
05520L-12 - VDE Socket, 3/8", 12 mm 1
05520L-13 - VDE Socket, 3/8", 13 mm 1
05520L-14 - VDE Socket, 3/8", 14 mm 1
05520L-15 - VDE Socket; 3/8", 15 mm 1
05520L-16 - VDE Socket, 3/8", 16 mm 1
05520L-17 - VDE Socket, 3/8", 17 mm 1
05520L-18 - VDE Socket, 3/8", 18 mm 1
05520L-19 - VDE Socket, 3/8", 19 mm 1
05520L-20 - VDE Socket, 3/8", 20 mm 1
05520L-21 - VDE Socket, 3/8", 21 mm 1
05520L-22 - VDE Socket, 3/8", 22 mm 1
05922L - VDE Ratchet wrench, 10 mm (3/8") 1
05923L-150 - VDE Extension 150 mm 1
05923L-250 - VDE Extension 250 mm 1
05924L-M8 - VDE Socket M8 1
05924L-M10 - VDE Socket M10 1
05924L-M12 - VDE Socket M12 1
41906L - Water pump pliers, 250 mm 1
41907L - VDE Cable knife 190 mm 1
41908L - Universal pliers, 180 mm 1
41909L - VDE Flat-nosed pliers, straight 200 mm 1
41910L - VDE Flat-nosed pliers, bent 200 mm 1
41911L - Side-cutting pliers, 160 mm 1
41912L - VDE Cable cutter 200 mm 1
V1000-ISO - Insulating caps, 10-piece 1

Spare and wear parts

Item no. variant Name
V1000-EINLAGE1 - Tool insert
V1000-EINLAGE2 - Tool insert
V1000-EINLAGE3 - Tool insert
V1000-KOFFER - Empty case for set V1000
