Description

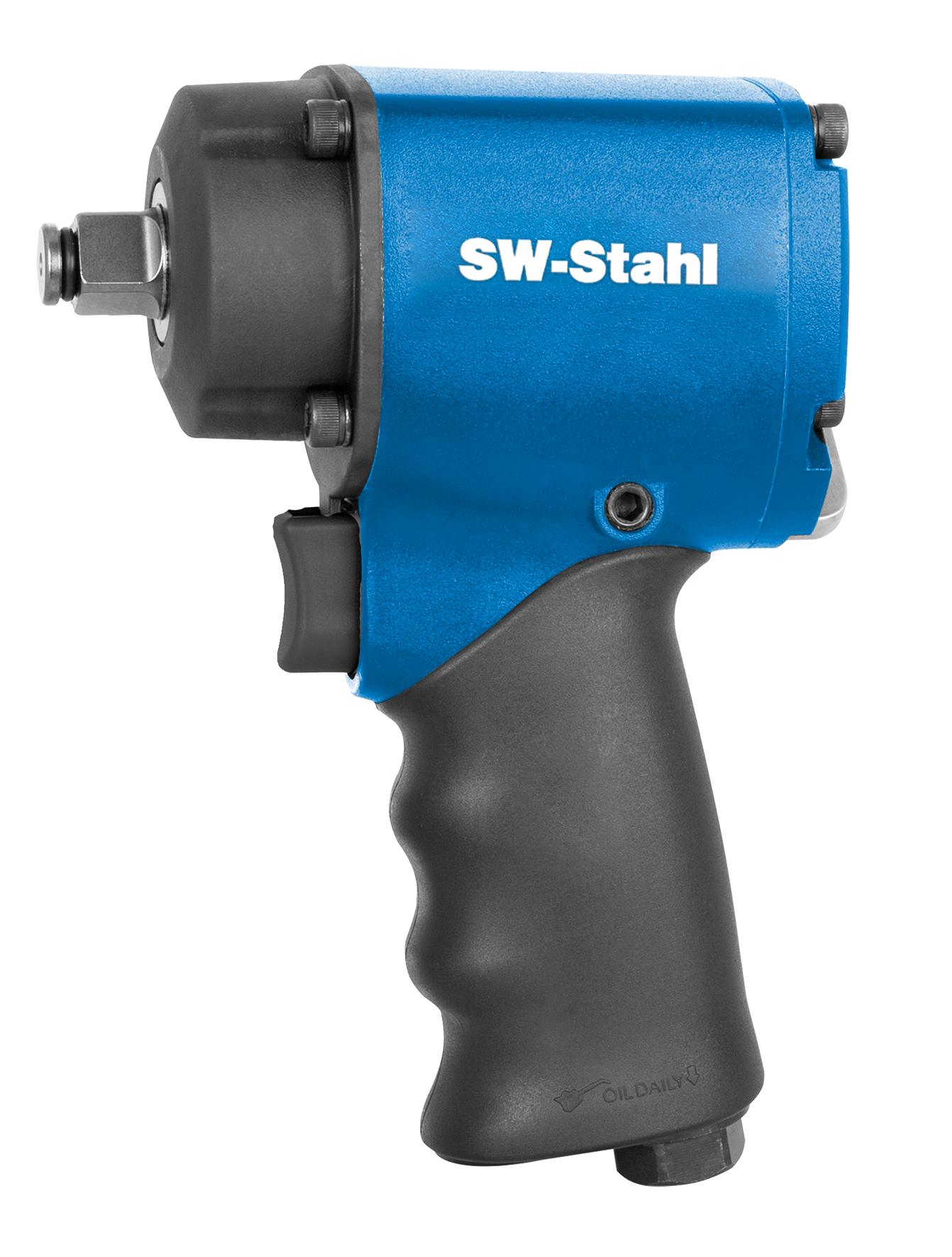

12.5 mm (1/2") drive.
Ideal for loosening the high-tensile fitting of half-shaft screws on single sided swing arms of motorcycles, especially Ducati and MV Agusta.
- Very short design
- High performance twin hammer mechanism
- Fatigue- proof work due to extremely low net weight
- Very quiet
- Very low vibration
- With a non-slip handle
- 6,3 mm (1/4") inlet nipple included
Technical data
| Abtriebs-Vierkant [mm] |
12,5 (1/2")
|
|
| Release Torque [Nm] |
1300
|
|
| Operating Mode |
Pneumatic
|
|
| Baulänge [mm] |
120
|
|
| Quality |
Premium
|
|
| Luftverbrauch [l/m] |
113
|
|
| Drehmoment Max. [Nm] |
678
|
|
| Max. torque, 1. speed [Nm] |
400
|
|
| Max. Torque, 2nd speed |
470
|
|
| Max. Torque, 3rd speed |
500
|
|
| Service Speed [1/min] |
10000
|
|
| Operating Pressure [bar] |
6,3
|
|
| Thread Size, compressed air connection |
1/4"
|
|
| Sound Level [dB(A)] |
87
|
|
| Geräuschpegel [db(A)] |
87
|
|
| Sound Power Level [dB] |
98
|
|
| Vibration Acceleration [m/s²] |
4.90000
|
|
| Length [mm] |
120
|
|
| Weight [kg] |
1.70700
|
|
Accessories
|
Item no. |
variant |
Name |
|
64311L
|
- |
Mini grease gun including grease bag, 80 g
|
Spare and wear parts
|
Item no. |
variant |
Name |
|
S3246-1
|
- |
Retaining ring for all, 1/2”
|
