Description

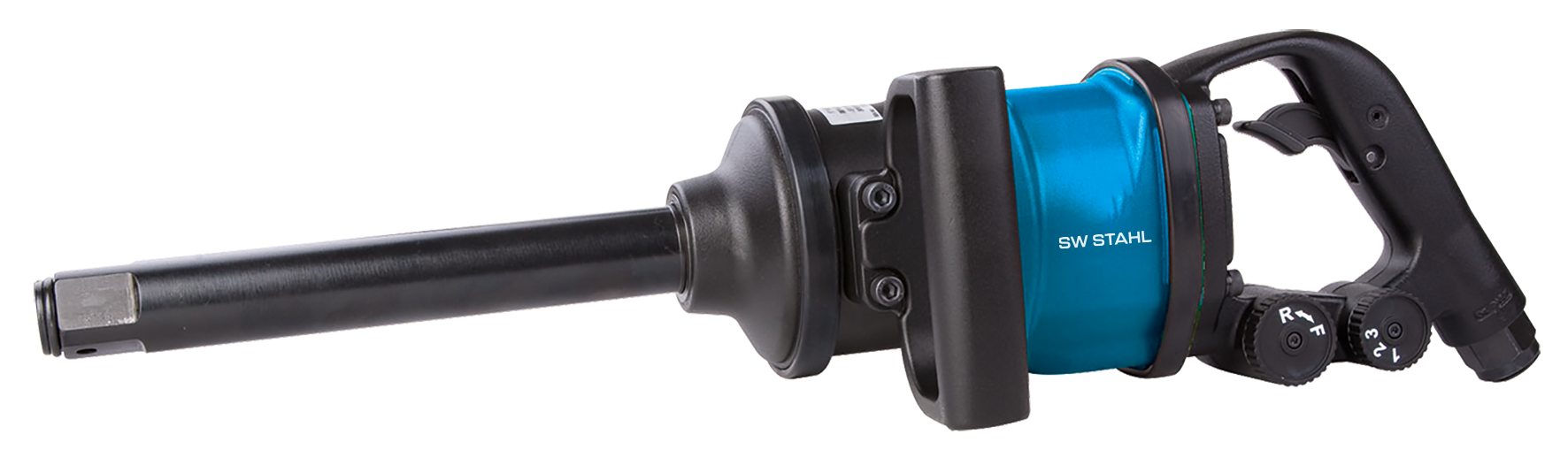

25 mm (1") drive.

• Long anvil 210 mm (8,3")
• High performance twin hammer mechanism
• Aluminium casing very low in weight
• Low- vibration
• Threefold torque selection
• 12,5 mm (1/2") inlet nipple included

Technical data

Abtriebs-Vierkant [mm]	25 (1")
Release Torque [Nm]	3800
Operating Mode	Pneumatic
Baulänge [mm]	547
Quality	Premium
Luftverbrauch [l/m]	282
Drehmoment Max. [Nm]	2441
Max. torque, 1. speed [Nm]	1400
Max. Torque, 2nd speed	1900
Max. Torque, 3rd speed	2100
Service Speed [1/min]	6000
Operating Pressure [bar]	6,3
Thread Size, compressed air connection	1/2
Sound Level [dB(A)]	90
Geräuschpegel [db(A)]	90
Sound Power Level [dB]	101
Vibration Acceleration [m/s²]	14.80000
Length [mm]	547
Weight [kg]	8.34200

Documents

Operating manual
Sept. 4, 2020, 9:15 p.m.

Accessories

	Item no.	variant	Name
	07985L-STIFT	-	Locking pin for 1"
	07985L-RING	-	Locking ring for 1"
	64311L	-	Mini grease gun including grease bag, 80 g
