Description

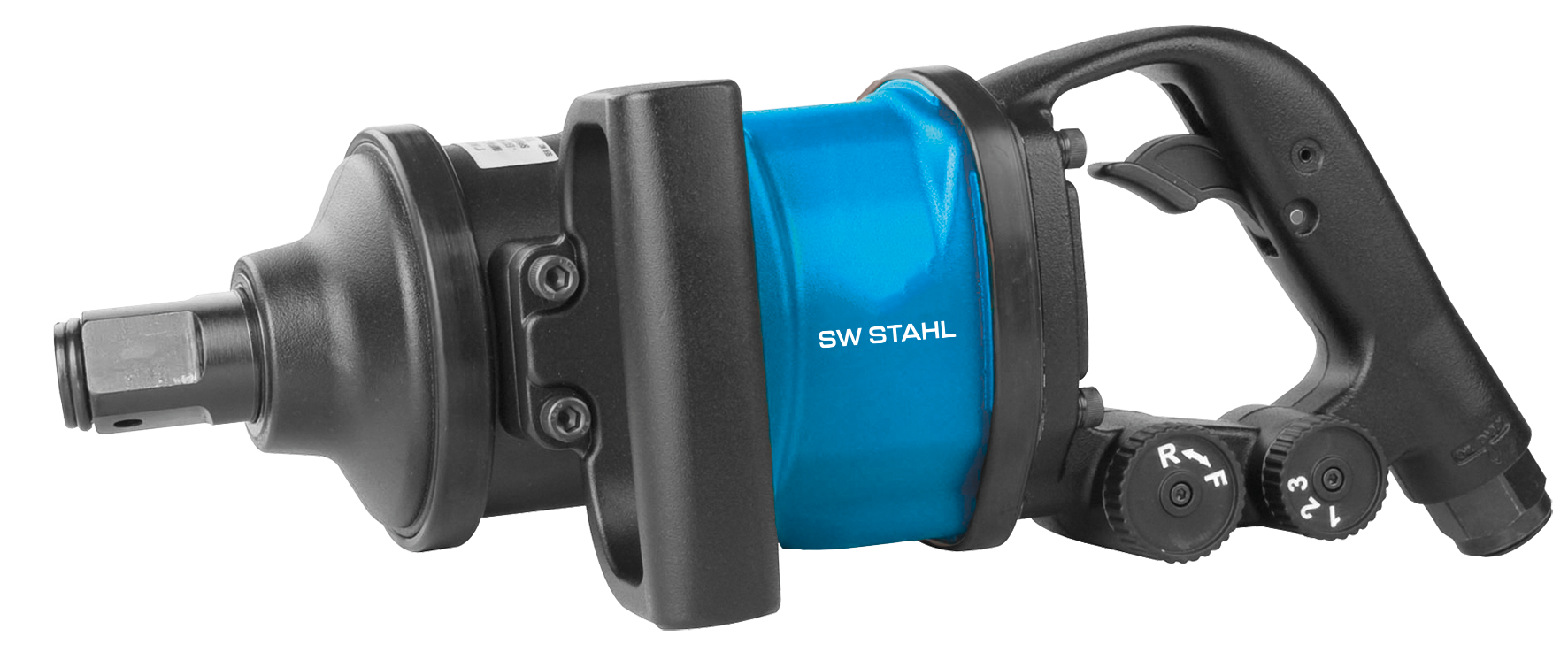

25 mm (1") drive.

• Short anvil
• High performance twin hammer mechanism
• Aluminium casing very low in weight
• Low-vibration
• Threefold torque selection
• 12,5 mm (1/2") inlet nipple included

Technical data

Abtriebs-Vierkant [mm]	25 (1")
Release Torque [Nm]	3800
Operating Mode	Pneumatic
Baulänge [mm]	378
Quality	Premium
Luftverbrauch [l/m]	282
Drehmoment Max. [Nm]	2441
Max. torque, 1. speed [Nm]	1400
Max. Torque, 2nd speed	1900
Max. Torque, 3rd speed	2100
Service Speed [1/min]	6000
Operating Pressure [bar]	6,3
Thread Size, compressed air connection	1/2"
Sound Level [dB(A)]	90
Geräuschpegel [db(A)]	90
Sound Power Level [dB]	101
Vibration Acceleration [m/s²]	14.80000
Length [mm]	378
Weight [kg]	7.19600

Documents

Operating manual
May 13, 2024, 9:16 p.m.

Accessories

	Item no.	variant	Name
	07985L-STIFT	-	Locking pin for 1"
	07985L-RING	-	Locking ring for 1"
	64311L	-	Mini grease gun including grease bag, 80 g

Spare and wear parts

	Item no.	variant	Name
	S3279-55	-	Rotor
	S3279-56	-	Rotor blade
